Printable Nfc Tag With Ntag203 Ntag213 Ntag215 Chip Optional,provide Customization

Specifications

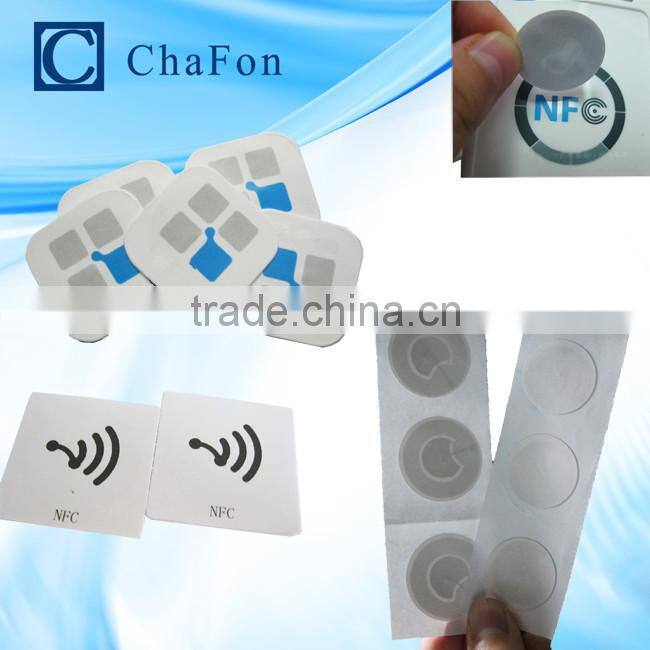

rfid nfc sticker tag can be packaged all type NFC chip,size optional,provide printing service

NTAG203

Laebel Size optional:25*25, 30*30, 35*35,35*30,38*25,40*25,40*30,45*30,45*45, diameter 25, diameter  28,diameter 30, diameter 40

(size can be customized)

RF Interface (ISO/IEC 14443A)

• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: up to 100 mm (depending on field strength and antenna geometry)
• Operating frequency: 13.56 MHz
• Fast data transfer: 106 kbit/s
• High data integrity: 16-bit CRC, parity, bit coding, bit counting
• True anti-collision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)

EEPROM

• 168 bytes of total memory, divided in 42 pages (4 bytes each)
•  144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)
•  Field programmable read-only locking function per page for first 64 bytes
•  Field programmable read-only locking function per block
•  32-bit user definable One-Time Programmable (OTP) area
•  16-bit counter
•  Data retention of 5 years
•  Write endurance 10000 cycles

NFC Forum Tag 2 Type compliance

NTAG203 IC provides full compliance to the NFC Forum Tag 2 Type technical

specification and enables NDEF data structure configurations.

Security

Anti-cloning support by unique 7-byte serial number for each device

32-bit user programmable OTP area

Field programmable read-only locking function per page for first 512 bits

Read-only locking per block for rest of memory
