Uhf Passive Card Made by PVC Material Can Provide Printing Service
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ChaFon
Model Number:
CF-TU9101
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tk4100 Chip Card Made by PVC Material With 86*54*0.8mm Standard Size Can Provide Printing ServiceNegotiableMOQ: 100 Pieces -
Colorful Music Festival Disposable Rfid WristbandUS$ 0.15 - 0.25MOQ: 100 Pieces
-
125khz Rfid Key TagUS$ 0.15 - 1.5MOQ: 100 Pieces
-
Rfid Uhf Epc Gen 2 Label With Self-adhesive Can be Stick on the Windshield for Car Management ApplicationNegotiableMOQ: 100 Pieces
-
Uhf Rfid Windshield Label With Self-adhesive Function Can be Stick on the Windshield for Car Management ApplicationNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ChaFon
Model Number
CF-TU9101
Specifications
1.passive card2.Frequency:UHF9860~868MHz/902~928MHz)
3.Protocol:ISO18000-6C(EPC GEN2)
4.Material:PVC
5.Size:86*54*0.8mm
uhf passive card made by PVC material can provide printing service
Product Description
1.Dimensions: 86 x 54mm
2.Thickness:0.8mm
2.Thickness:0.8mm
3.Material: PVC, PET
4.Chip optional:Alien H3.
5.Protocol:ISO18000-6C
6.Reading range:10m (it depends on the reader)
7.Memory:32bits TID, 240bits EPC Number, 512bit user memory
8:Working mode:read/write
9.Anti-collision:Yes
10.Card Surface: Matt or glossy finish
11.Magnetic Stripe Option: 300oe, 2750oe, 4000oe
12.Housing: Lamination card
13.Operating Temperature: -20 to +60°C
14.Stockage Temperature: -20 to +65°C
11.Magnetic Stripe Option: 300oe, 2750oe, 4000oe
12.Housing: Lamination card
13.Operating Temperature: -20 to +60°C
14.Stockage Temperature: -20 to +65°C
Printing of RFID Card
1.Full color offset printing
2.Silk-screen printing
3.Metallic gold/silver
2.Silk-screen printing
3.Metallic gold/silver
4.Spot colour
Optional request of RFID Card
1.Barcode:EAN13,code 39,code 128,etc
2.Jet dot numbering:black colour
2.Jet dot numbering:black colour
3.Thermal printing number(black or silver colour)
4.Encoding upon requirement
5.Magnetic strip:300oe,2750oe,4000oe
6.Signature panel: white or transparent
7.Scratch panel(pin code)
8.Laser printing UID number
Application
Public transportation, Access management
Event ticketing, Gaming Identity, club visiting, advertising, lottery, retail shop or store
insurance policy, super market, medical care, bank, parking, school. etc
Packing
One carton quantity:1000pcs/2000pcs 200pcs/one box.
Weight:7.5KG/1000pcs. 15KG/2000PCS.
Size:31*21*16cm/1000pcs. 37.5*24*25mm /2000pcs
Other support
We can provide printing service,such as print the logo,serial number,barcode and so on accoring customer's specific requirement.
Besides,about the passive card,we also have other types according different frequency,such as lf and uhf.
Please come to below link to check with much more card information:
/product.aspx?cid=274

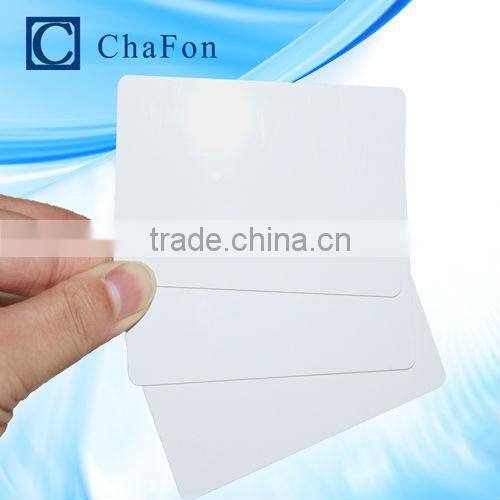

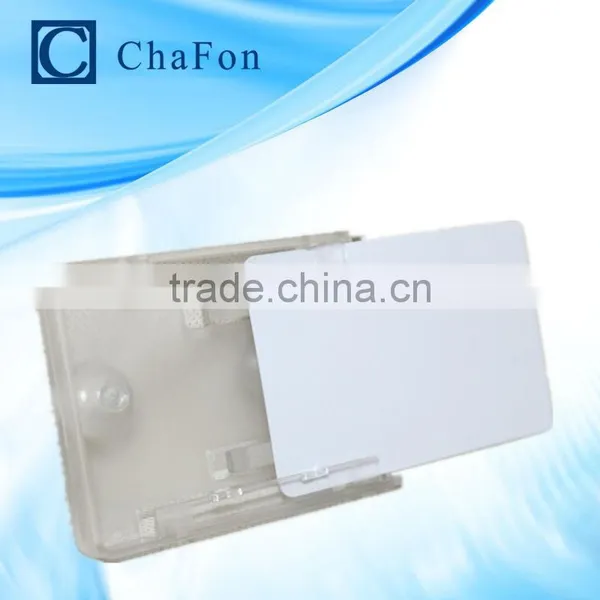

Product picture
