Uhf Rfid Windshield Label With Self-adhesive Function Can be Stick on the Windshield for Car Management Application

Uhf Rfid Windshield Label With Self-adhesive Function Can be Stick on the Windshield for Car Management Application photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ChaFon
Model Number:
CF-TU9505
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ChaFon
Model Number CF-TU9505

Specifications

1.rfid windshield label
2.860~960MHz
3.ISO18000-6C(EPC GEN2)
4.Alien H3
5.110*45*0.3mm( can be customized)

uhf rfid windshield label with self-adhesive function  can be stick on the windshield for car management application





uhf rfid windshield label with self-adhesive function can be stick on the windshield for car management application





Product Description


1.General tag: global operation 860 to 960 MHz
2.Accord EPC Class1 Gen2 standard
3.The best solutions for Glass surface, windshield applications
4.Provide Logo printing according to customer's request, work distance above 10m





Parameter



Performance Specifications

Product model

CF-TU9505

Frequency

860~960MHz

Standard

ISO18000-6C(EPC-Gen2)

Chip type

Alien H3

Memory

32bits TID, 96bits EPC Number, 512bit user memory

Working mode

read or write

Read distance

read(1~10m) (Reader dependent)

Write distance

write(1~3m) (Reader dependent)

Data retention

10(yrs)

Anti-collision

yes

Physical Characteristics

Dimension

110mm*45mm*0.3mm(customizes)

Base material

Thermal Paper/Self-adhesive paper

Antenna material

Aluminum

Operating temperature

-10°C~+70°C

Operating humidity

≤80%

Package

200pcs/box

Weight

1±0.05kg/box











Application



1.In accordance with the requirements of client package into 4 * 2 ', 4 * 4', 4 * 6 different sizes, such as self-adhesive Labels

2.Can be used for car, glass and parking management (this tag with self-adhesive,can be stick on the car windshield directly)





Other Support



1.More information about this product , please visit follow link:

/productdetails.aspx?pid=512



2.Please pay attention:

The size of tags can be customized according customer's specific requirement,at present,we have made the size of 4*2inch,4*4inch and 4*6 inch.

We also can help customer print on the tags,such as print logo,digital and so on.

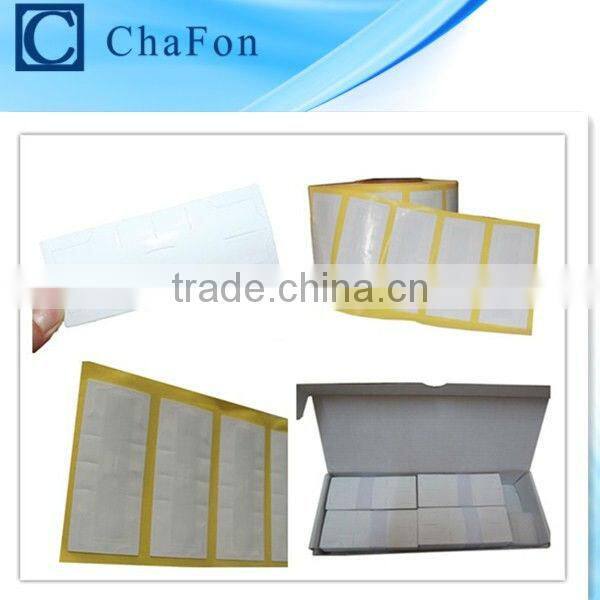

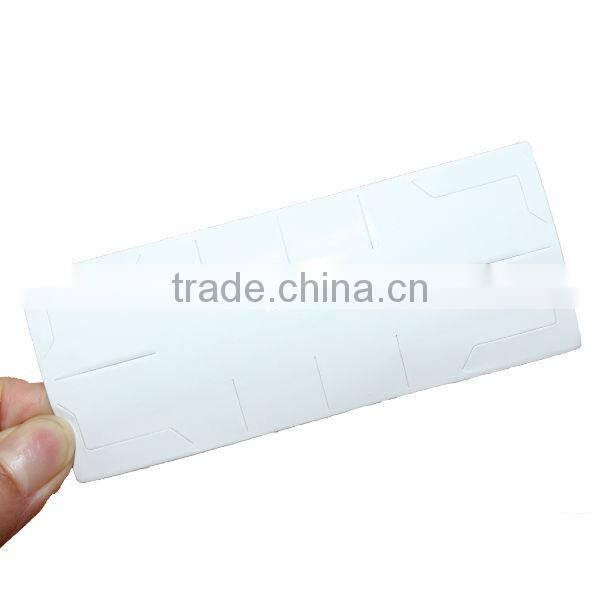

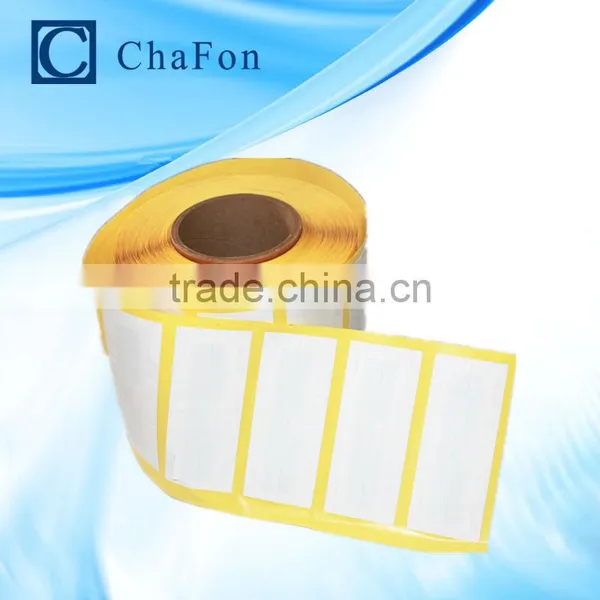

Products picture



uhf rfid windshield label with self-adhesive function can be stick on the windshield for car management application
