13.56mhz rfid rewritable card support SO15693/ISO14443A/ B
Product character
1. General tag: global operation 13.56MHz.
2. In accordance with the requirements of customers printing picture, LOGO, serial number
Parameter
Performance Specifications | |
Product model | CF-TH9100 |
Frequency | 13.56MHz |
Chip type | M S50/S70,M ultralight,I-code2 |
Working mode | read or write |
Read distance | read (Reader dependent) |
Write distance | write(Reader dependent) |
Data retention | 10(yrs) |
Anti-collision | yes |
Physical Characteristics | |
Dimension | 86mm*54mm*0.78mm |
Base material | PET/PVC |
Antenna material | aluminum |
Operating temperature | -25°C~+70°C |
Storage temperature | -20°C~+50°C |
Operating humidity | ≤80% |
Package | 200pcs/box |
Weight | 0.5kg/box |
Application
1. IC card can primarily on the basis of the requirements of customers into different package
sizes of cards.
2. IC card can be used for vehicle management
3. IC card can be applied to personnel management
4.to product control
Other support
1.Can package different chips into inside of cards according to customers requirement,such as EM4100/TK4100,M S50/S70,M ultralight,I-code2,Alien H3,Impinj,HID i-Class.
2.Can make it into dual frequency card.you can put two frequency chip into card at the same time.
3.More product information,please check below link:
/product.aspx?cid=274

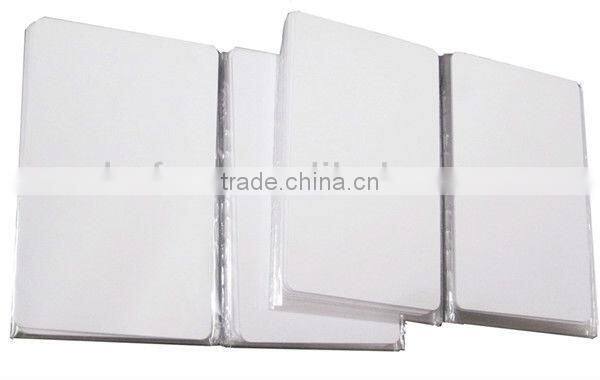

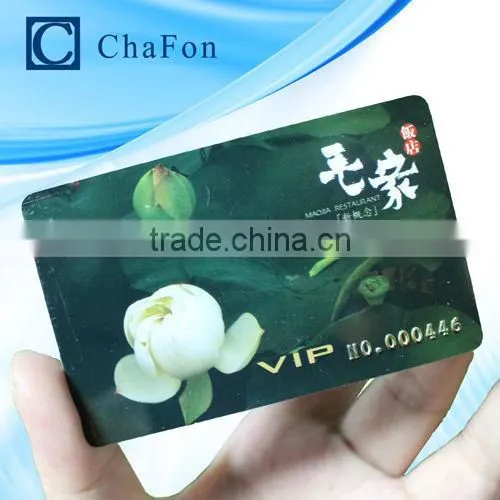

Product picture
Product landscape
