Simple Type Automatic Gate Parking System

Low cost simple UHF automatic parking management

Application feature:

1.Access to automatic access, no need hand scan cards.
2.Convenient installation, low cost, no need software installation, security and reliable
3.Only need UHF long range reader and barrier can let it come true.

Solution description:

1.Install UHF long range reader
2.Reader connect with barrier controller through WG26
3.Use UHF USB desktop writer to authorize tag
4.Install tag on vehicle windshield
5.When vehicle driving close to parking lot, reader can read tag information,barrier will open,after vehicle enter to parking lot, barrier will close,if tag invalid and without authorization,then can’t enter.

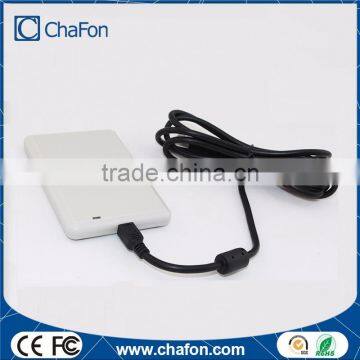

CF-RU5102,USB UHF RFID desktop reader/writer

Frequency:902MHz~928MHz (FCC),865~868MHz(CE)
Protocol: ISO18000-6B/ EPC G2
Reading Range: 0~50cm
Interface:USB
Size:104x68x10mm

Product link:

/productdetails.aspx?pid=384

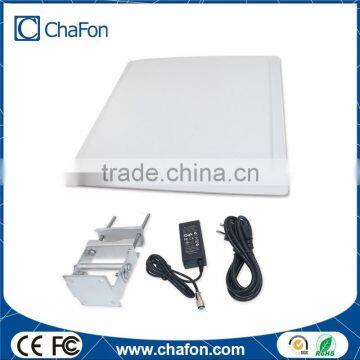

CF-RU5115,UHF RFID long range integrated reader

Frequency: 902MHz~928MHz (FCC),865~868MHz(CE)
Protocol: ISO18000-6B/ EPC G2
Reading Range: 10~20m
Size:445mmX445mmX55mm
Interface:RS232/RS485/WG26

Product link:

/productdetails.aspx?pid=383

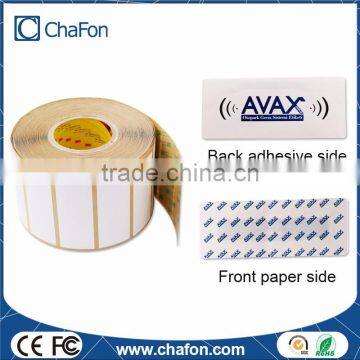

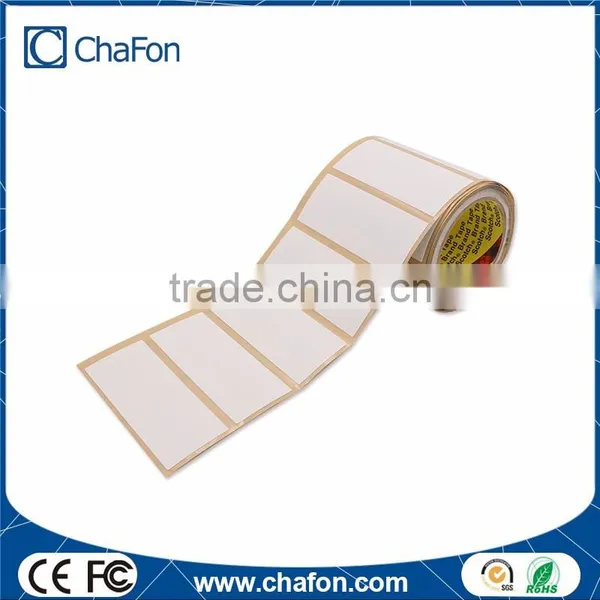

G9305,UHF RFID windshield tag

Frequency:UHF (860~960MHz )

Chip type:Alien H3
Size:110*45mm
Material:PP synthetic paper
Glue:3M

Product link:

/productdetails.aspx?pid=512
