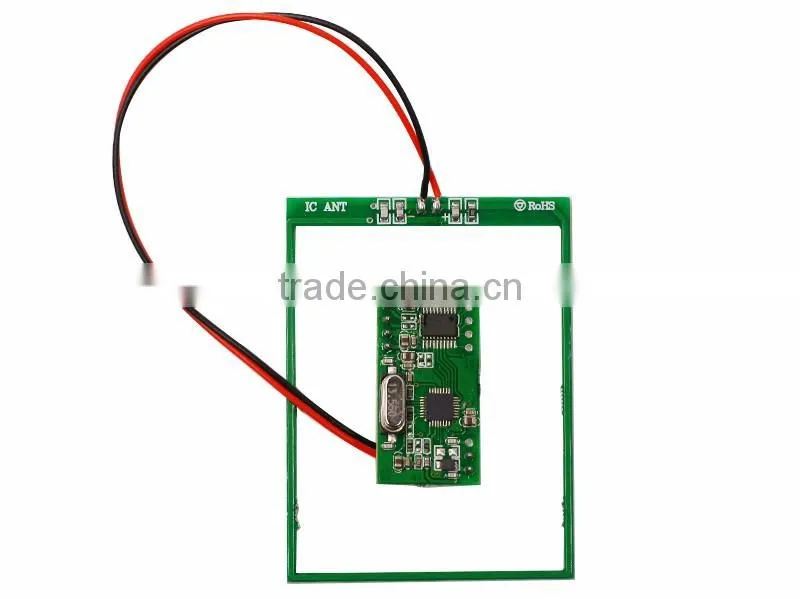

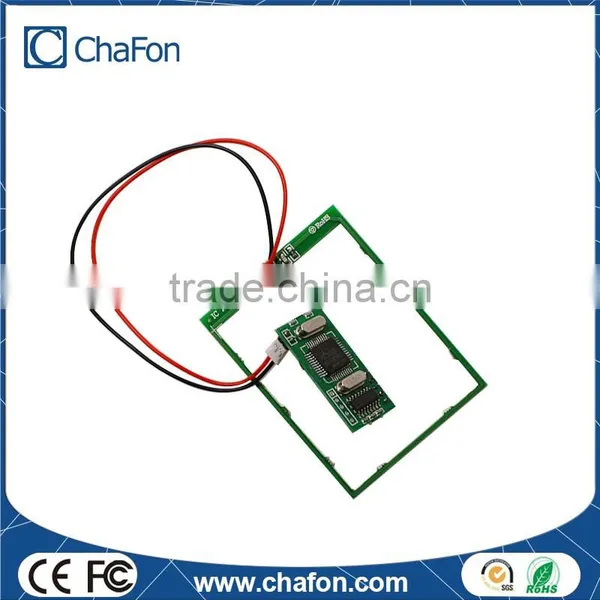

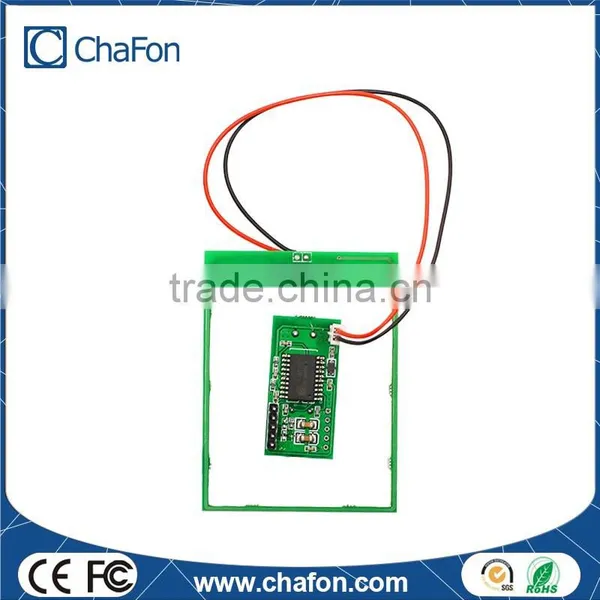

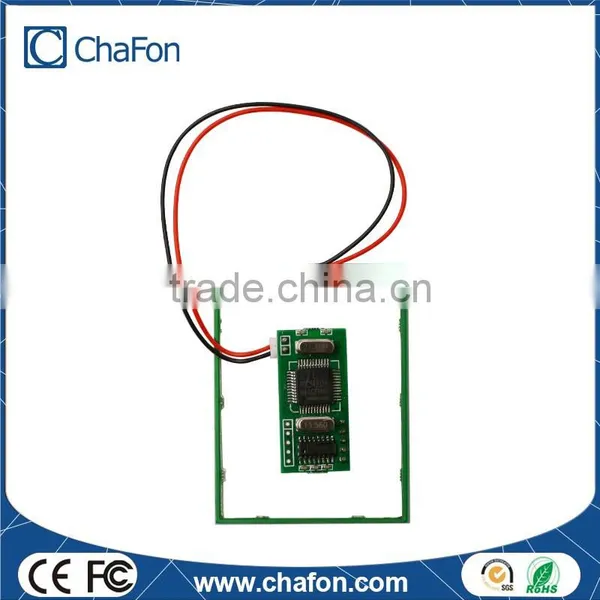

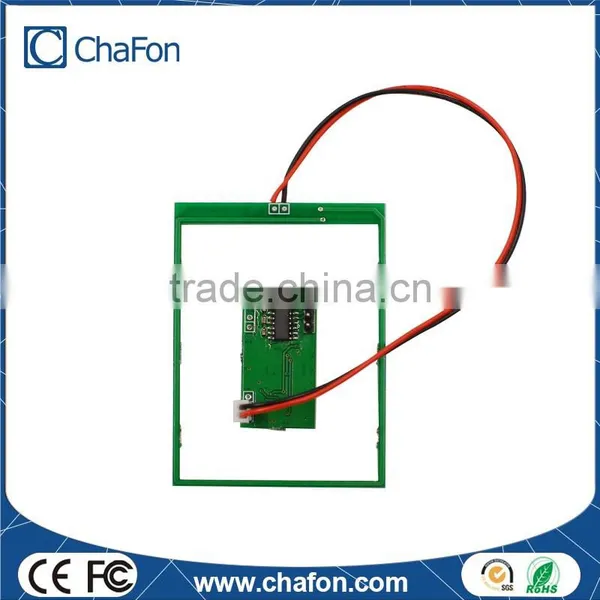

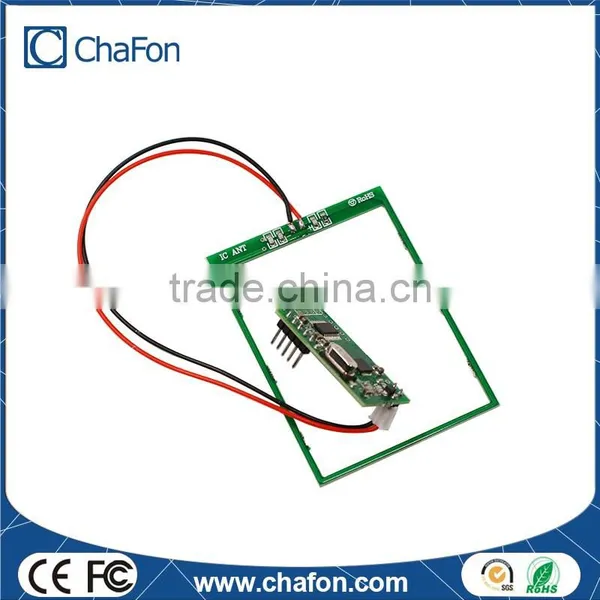

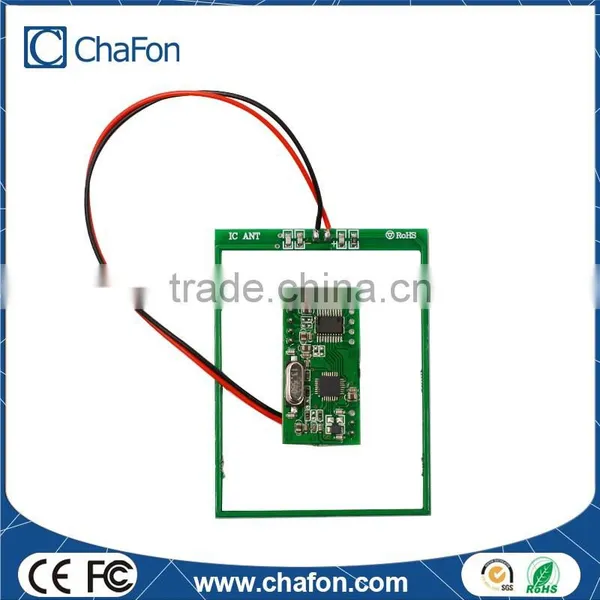

OEM RS232 13.56mhz rfid reader module
CF-MH200 series read-write modules (connected with antennas) are smart modules without touching based on international standard agreement ISO14443A, ISO14443B and ISO15693. They are of high capability, anti-jamming, small size and good quality, and are used for guarding, security, bus ticketing, filing, electronic ticketing, and anti-fake tracking and so on.
Product type
Product standard | support |
ISO14443A | S50/S70,F08 compatible card |
ISO15693 | I-Code2 compatible card |
ISO14443A/B, ISO15693 | S50/S70,F08 compatible card, I-Code2 compatible card |
Capability specifications
Model Number | CF-MH200 |
Dimension | 39x19x9mm |
Standard | ISO14443A/B, ISO15693 |
Support | Mifare One S50/S70 Mifare One UltraLight AT88RF020 66CL160S SR176 RIX4K(TYPE-B) I-Code2 TI RFID Tag-it HF-I EM4135 EM4034 etc. |
Frequency | 13.56MHz |
speed | 106 kbit/s |
Baud rate | 9600-115200 bit/s(optional),usually 9600 |
Power supply | DC +5V (±5%) |
Consumed current | < 90mA |
Operating distance | 50--100mm |
Interface | RS232/TTL(optional) |
Service temperature | -10℃ ~ +70℃ |
Store temperature | -20℃ ~ +80℃ |
Pin DefinitionRemark: antenna size: 40*20mm, 73*54mm, 53*53mm
Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly product?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
