13.56Mhz read/write rfid nfc reader module with external antenna
CF-MH200 series read-write modules (connected with antennas) are smart modules
without touching based on international standard agreement ISO14443A, ISO14443B
and ISO15693. They are of high capability, anti-jamming, small size and good quality,
and are used for guarding, security, bus ticketing, filing, electronic ticketing,and anti-fake tracking and so on.
Product model explanation
CF-MH200-R: interface is RS232
CF-MH200-T: interface is TTL
Parameter
Model number | CF-MH200 |
Dimension | 39X19X9mm |
Standard | ISO/IEC 14443A/B;ISO/IEC 15693 |
Support | Mif S70;Mif UltraLight;Mif S50; Mif Pro; AT88RF020;66CL160S; SR176; SRIX4K(TYPE-B); I-Code2;TI RFID Tag-it HF-I ,EM4135,EM4034 etc. |
Frequency | 13.56MHz |
speed | 106 k bit/s |
Baud rate | 9600-115200 bit/s(optional),usually 9600 |
Power supply | DC +5V (±5%) |
Consumed current | < 90mA |
Operating distance | 50--100mm |
Interface | RS232/TTL(optional) |
Status indicate | 2pcs LED indicate,1pcs buzzer |
Service temperature | -10°C ~ +70°C |
Store temperature | -20°C ~ +80°C |
Remark: antenna size: 90*65mm;75*75mm;68*65mm;78*68mm;70*68mm(optional)
Application:
- Guarding,
- Security,
- Bus ticketing,
- Filing,
- Electronic ticketing,
- Anti-fake tracking
Other support
The module come with the completed English SDK,demo softwarr,user manual and source code,and these documents will help you develop the softwre.
Please come to below link to download the SDK for checking at first:
/df23a2bm/HF-module-rar
We can provide OEM service,such as make different size according customer's specific requirement.
Besides,about the smart card reader module,we also have other types according different frequency and size,about the specific information,
please come to below link to check:
/product.aspx?cid=239

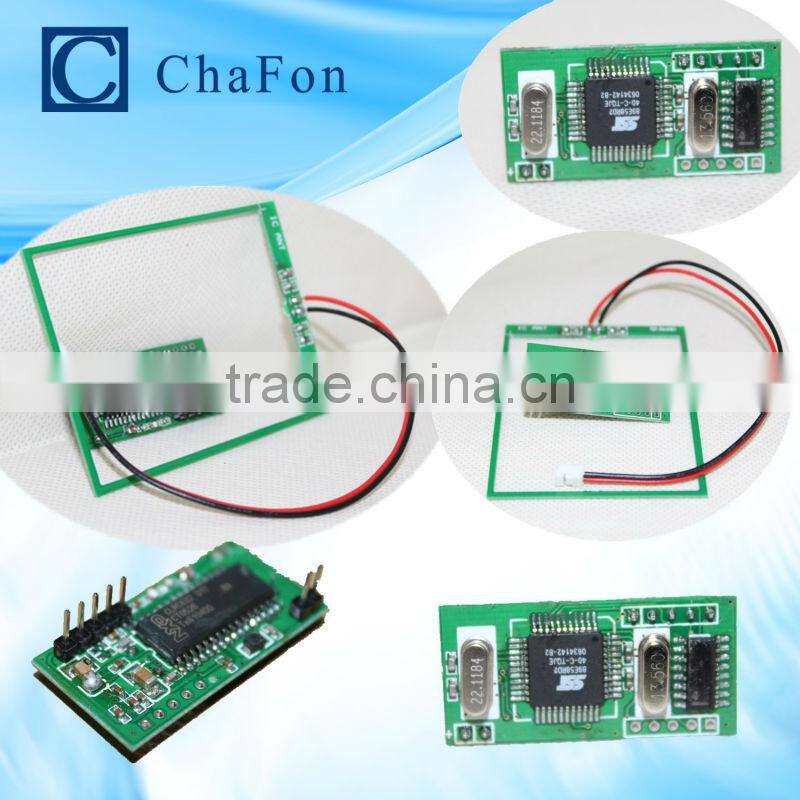

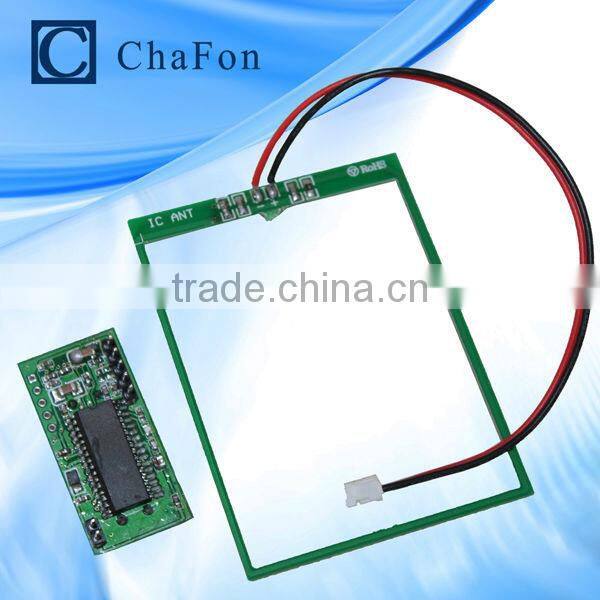

Product pictures
