Bluetooth WiFi GPRS barcode smartphone with uhf reader

Name: Bluetooth WiFi GPRS barcode smartphone with uhf reader
Brand: Chafon
Price: USD $455 - 1,000 / Piece

FOB Price

USD $455 - $1,000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Chafon

Model Number:

CF-H5202

Product Description

Product mode explanation:

Model	Parameter
CF-H5202	Barcode
CF-H5202H	Barcode, 13.56MHz
CF-H5202U	Barcode, UHF

Detailed Parameters:

Model	CF-H5202
Ergonomic design	Max: 192mm73.8mm29mm Hand Grip: 90mm60mm25mm
Weight	350g(with batteries)
Hard keyboard	alphanumeric keyboard
Soft keyboard	Microsoft Windows CE 6.0 OS (Multi-lingual)
Operating System	Operating System
CPU	SamSung Cortex-A8 1GHz CPU
Screen	3.5 inch TFT-LCD QVGA (240 x 320) or VGA (480 * 640) color touch screen
Memory	ROM	512MB Nand Flash
	RAM	512MB Mobile DDR
One dimension-al laser	Scanning speed	100±20 per second (bidirectional)
	Readable bar codes	Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded
2DCMOS	Readable bar codes	1D Symbologies：UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes 2D Symbologies：PDF417、MicroPDF417、Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse Postal Codes：U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Wi-Fi WLAN (standard configuration)	The CF-H5202 product supports communication on the 802.11b/g Wi-Fi WLAN with a rate of 54 Mbit/s, which meets the requirements of the CISCO CCX2, 3 security standards and supports CISCO AP and security regulations.
WCDMA	Work frequency Band	UMTS2100/900 MHz UMTS1900/850 MHz GSM850/900/1800/1900 MHz
	Data service	GSM CS: UL 9.6kbps/DL 9.6kbps GPRS/EDGE: Multi-slot Class 12, Class B WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA：DL 3.6Mbps
CDMA 2000	Work frequency Band	CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A Supports BC0 (800MHz band), BC1 (1900MHz band)
	Data service	CDMA2000 1X: UL/DL: 153.6 kbps CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps
Camera (extension)	Camera with 3 million/5 million pixels and fill light
GPS	48 channels; positioning accuracy: less than 1 m
RFID	LF：ISO11784/11785 HF：ISO15693、ISO14443A/B、SRI513/SRI4K UHF：ISO180006C（EPC C1 Gen2）
Bluetooth	Bluetooth V2.1+EDR
Audio	The speaker x1,Microphone x1, Receiver x1
Master battery	3.7 V 3000 mAh rechargeable lithium battery
Slave battery	150 mAh, providing power for six hours
RTC battery	Maintain equipment clock is not lost
Operating temperature	–10°C ～ +50°C
Storage temperature	–20°C ～ +60°C
Operating humidity	Relative humidity: 5–95% (no condensation)
Endurable height for dropping	The CF-H5202 product can endure multiple drops to a smooth concrete floor from a height of 4 inches (1.2 m).
Extension	Micro SD/TF slot (a maximum of 32 GB)
Physical interface	Mini USB x 1, 3.5mm audio interface x 1
Charging seat	At the same time to two battery charging
Printer	Can connect all Bluetooth support agreements serial printer
other attachments	Power adapter , Data line
Ingress protection	IP65
Electrical safety standard	UL60950,CSA C22.2 No.6050,EN60950/IEC950
Laser safety standards	IEC2 /FDA class II, conforms to the IEC60825-/EN60825-1 standard

Products Details

Detailed Images

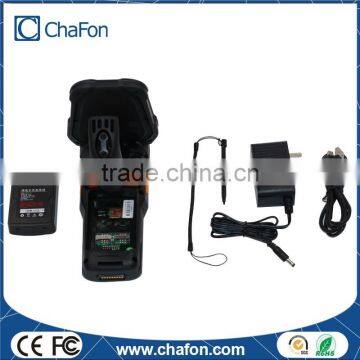

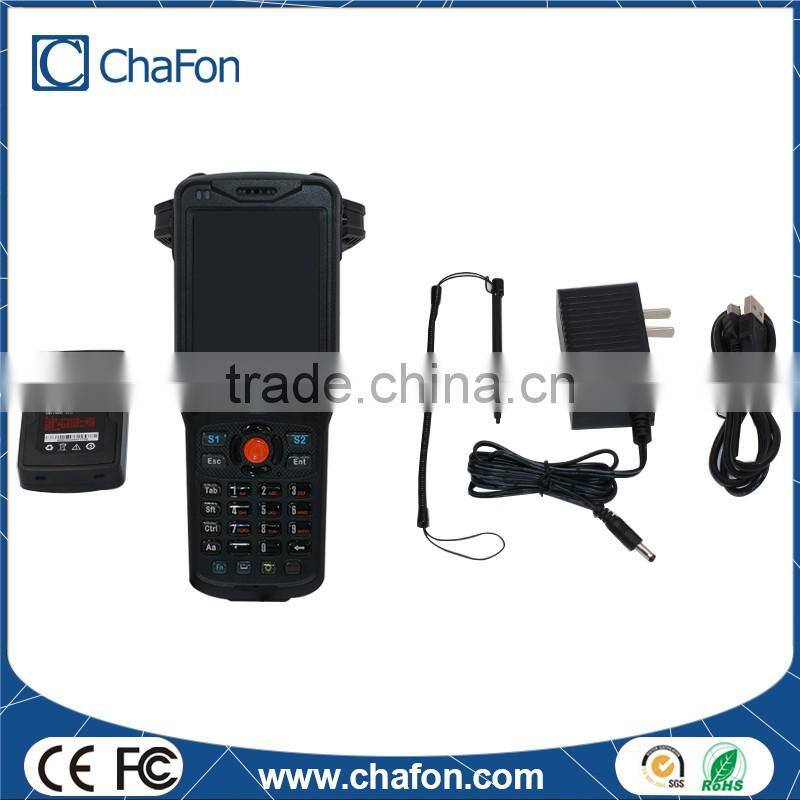

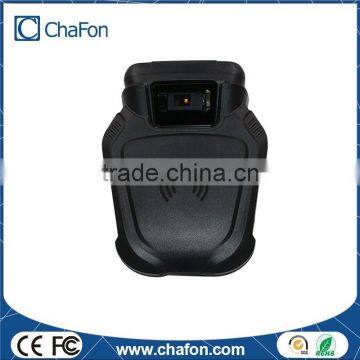

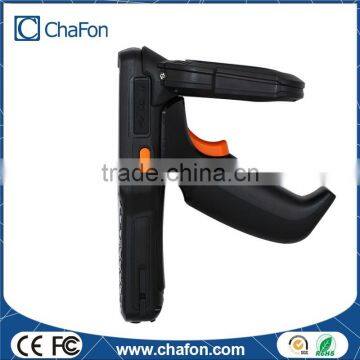

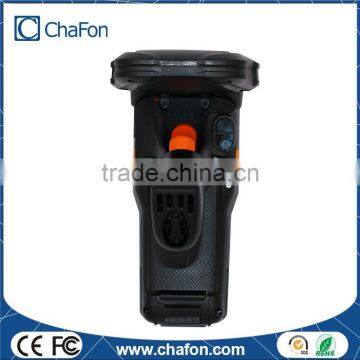

This reader is a IP65 industrial-grade handheld reader, with 1D barcode, WIFI and Bluetooth standard function, can add 2D barcode, 3G, GPRS, GPS function. The accessories include battery, charger and the pen.

User Manual

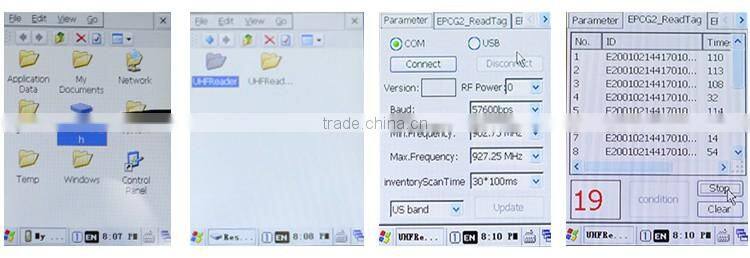

Open the "Resident Flash", choose "UHF reader" file, click the "read" buttom, then can read the tag.

Application

This reader can be used to different applications, such as warehouse management, clothes management, library management and retail management.

Packing & Delivery

Packing:

1pc/box, box size is 16*19.5*12.5cm, the gross weight is 1kg.

Delivery:

We can ship goods by Express, such as DHL,TNT,FEDEX,UPS etc, also can ship goods by air or sea, depends on different goods quantity and package specification.

Company profile:

Shenzhen Chafon Technology Co, Ltd. was founded in 2009,we are specialized in RFID products research and develop,and automatic identification technology application and promotion.Company products have won the United States FCC certification,European CE/ETSI certification, and China will WuWei CMII certification which products is exported globally.

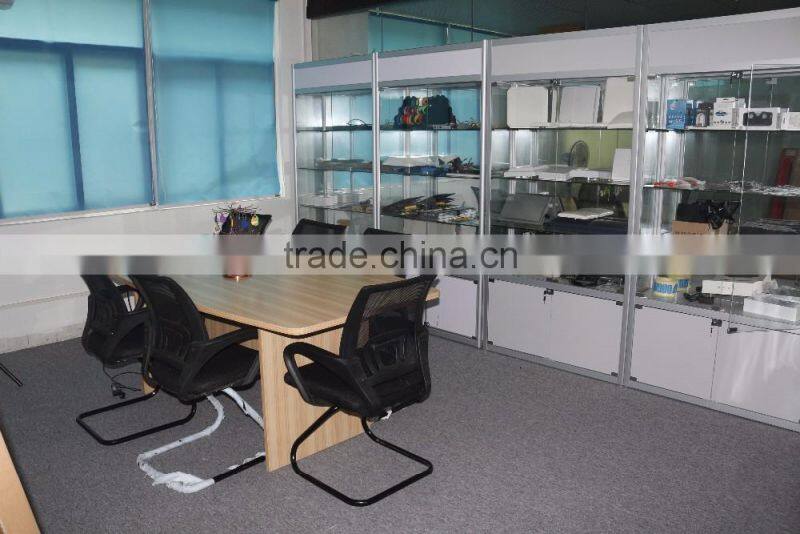

Our Office:

Our Certificate:

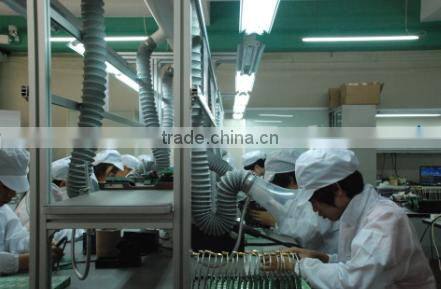

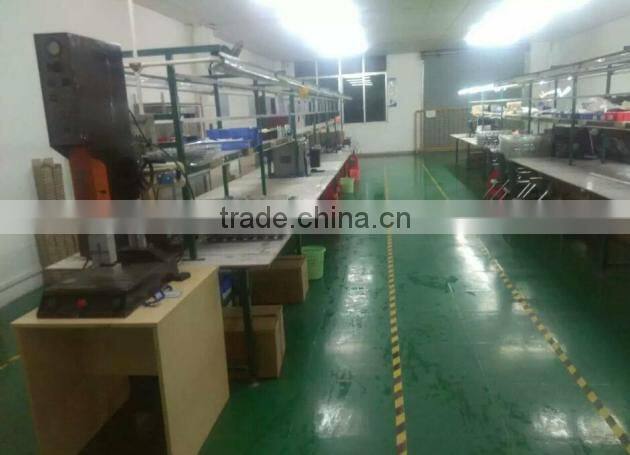

Our production:

Our Resarch & Development:

FAQ

1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and UHF three frequency.
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.

Contact Us

Shenzhen Chafon Technology Co., Ltd.: Contact nameAngela Hu; Phone0086-755-23202330; Address Rm408,Minde Building, Minde Road,Minzhi street,Longhua,Shenzhen Shenzhen,Guangdong
