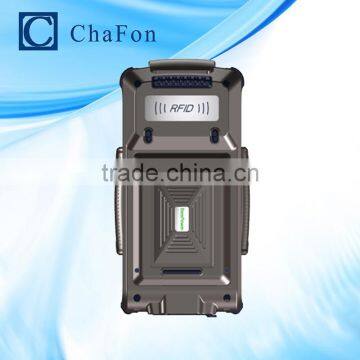

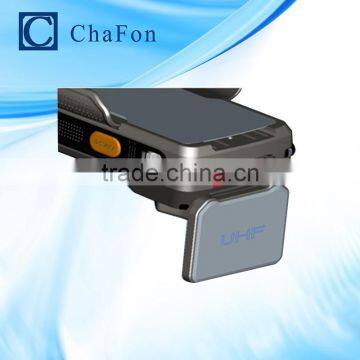

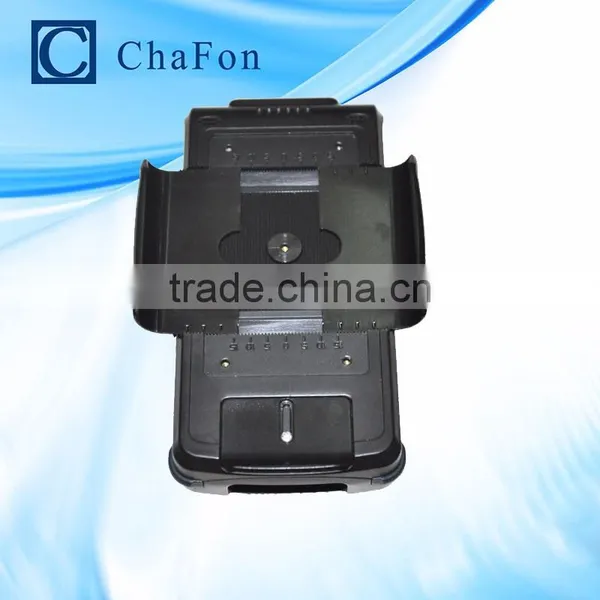

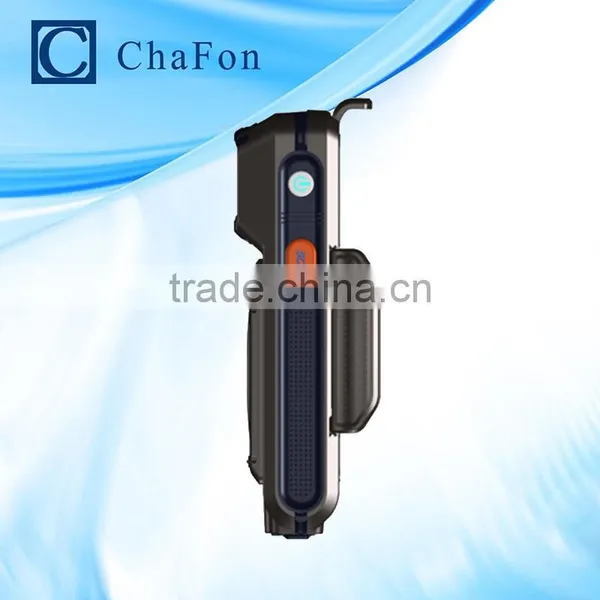

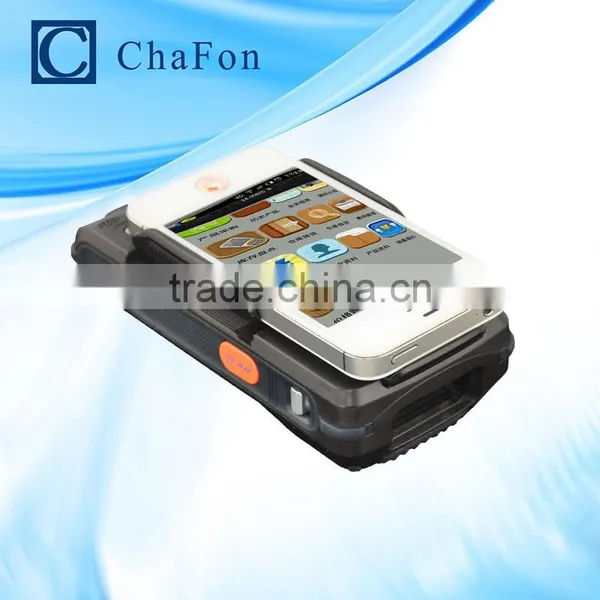

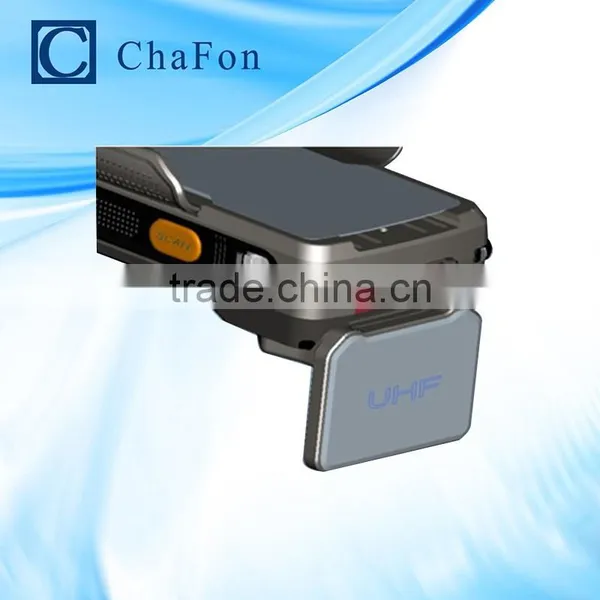

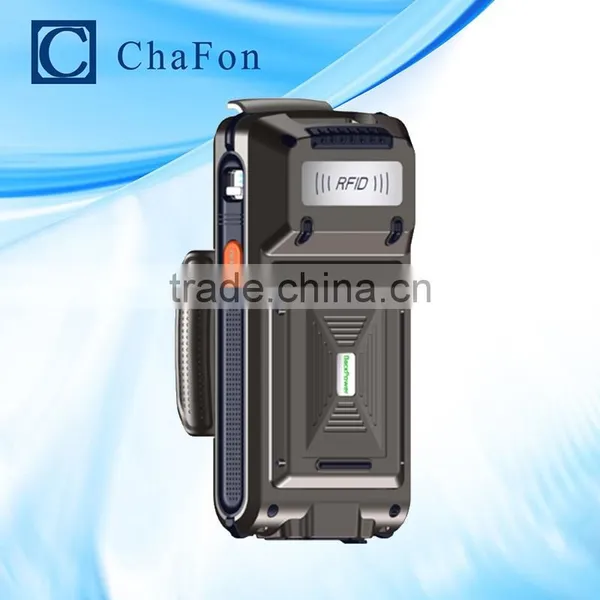

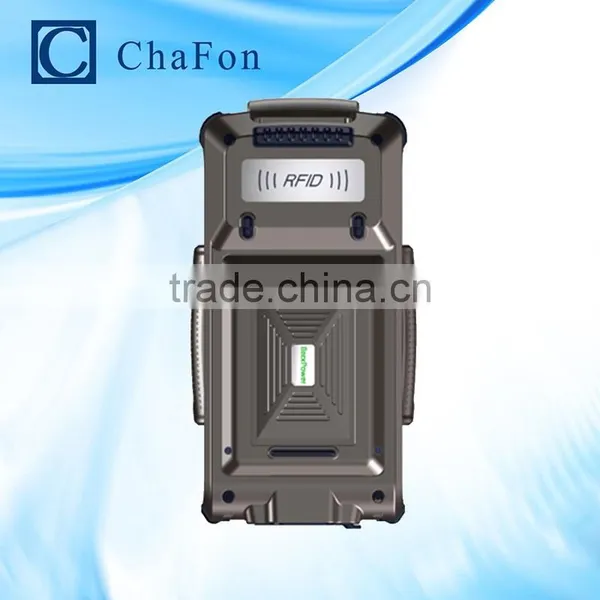

long distance uhf handheld bluetooth reader
Product Features:
1. High versatility: It has adjustable buckle, can easily combine different size of mobile phone or table PC (Has passed the patent of utility model).
2. Multi-function option: It has more than 20 kinds of function optional, can satisfy the individual needs of government and enterprises.
3. Charging function: Built-in high capacity 3000mAh polymer battery, can charge the phone any time to meet all day outdoor work.
4. Bluetooth communication: Fast software adaptation, mobile phone doesn't need to make any changes( Provide communication interface SDK and the source code),
5. Long-life, low cost replacement: After phone upgrade or replace the battery, it is also a latest PDA.
6. Dustproof, Drop resistance and Durable: According to characteristics for outdoor use of government and enterprises, we make the hard shell thicker and use corners soft processing, to make this product fully meet the needs of industry and durable.( Affordable> 1.2m drop test)
7.Various reading prompt modes: When collecting the data, it has sound, LED light and motor vibration three prompt modes, can use in the complex environment.
feature | |||
charging and discharging parameter | Input | 5.0±0.25V DC | |
output | 5.0±0.25V DC | ||
nominal capacity | 3000mAhlithium polymer battery (>500 charge cycles) | ||
Standard Charge Circuit | <1A | ||
Standard Charging method | CV(constant voltage5.0V)charging | ||
charging time | ≤6 hours | ||
max charging current | <1A | ||
max discharge current | <1A | ||
end-off voltage | 3.3V | ||
Interface | Bluetooth HID & SPP | ||
1D Infrared | Reading Mode | CCD | |
Resolution | 2500 | ||
Scan Rate | 300 scan/sec | ||
Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14 | ||
Precision | ≥ 5mil(under the condition of PCS: 0.9,Code 39) | ||
Scan Distance | Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm; | ||
sensitivity | incline | ±65°@0°Roll and 0° Skew | |
rotate | ±30°@0°Pitch and 0°Skew | ||
declination | ±60°@0°Roll and 0° Pitch | ||
outdoor scanning | proprietary technology-- able to read the code bar under sun light | ||
current | maximum current | 100mA | |
standby current | 45mA | ||
RFID(optional) | HF | ISO14443A Reading Mode:reading-writing or auto-induction just for Reading Working distance: >30mm | |
UHF | EPC Gen2 Reading Mode: reader and writer Working distance:0~3m | ||
Environment | Operating temperature | 0℃~45℃ | |
Storage Temperature | -10℃~ +45℃ | ||
Humidity | 5% - 95% ( Non-condensing ) | ||
Clip | LED display | 4LED to show charging and discharging active status and electrical quantity: 2LED show the working mode of Bar codes and Bluetooth working mode | |
Auto charging | Automatically charging without pressing any key when inserting into the interface by USB cable. | ||
Auto Detect | Automatically detect whether to charge when inserting into the interface by USB cable. | ||
priority of charge | Priority of charging mobile phone, then charging the internal battery. | ||
UPS function | When external power supply breaks off, its internal battery with keep charging mobile phone. | ||
battery overcharge protection | Dual hardware protection: >4.2±0.04V | ||
Battery over discharge alarm voltage | HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection | ||
Output Current Limiting Threshold | ≤ 1.2A | ||
short-circuit protection | HW protection | ||
Standard Configuration | Micro USB Cable | ||
Left and right buckle | |||
front buckle (two pieces with different height) | |||
skid and scratch resistant cloth 2pcs | |||
Warranty Card | |||
Certification | |||
Instruction Book | |||
Options | 5V/2A & 5V/1A two separate output high-quality car charger(use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC. | ||
Sling | |||
AC charger | |||
Cross Screwdriver | |||
