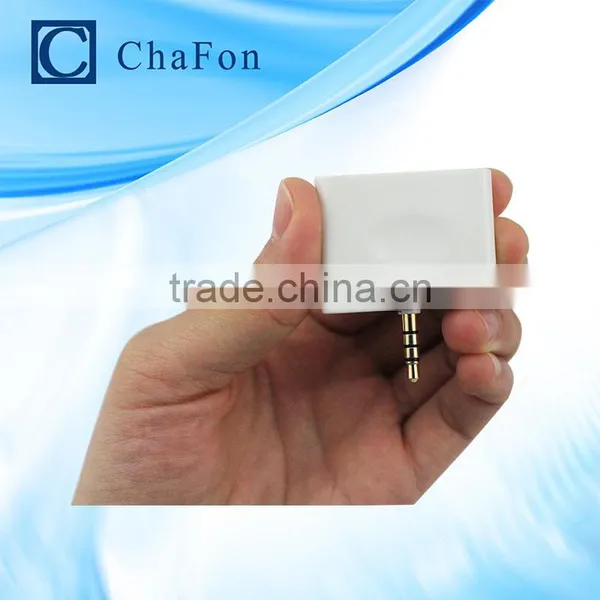

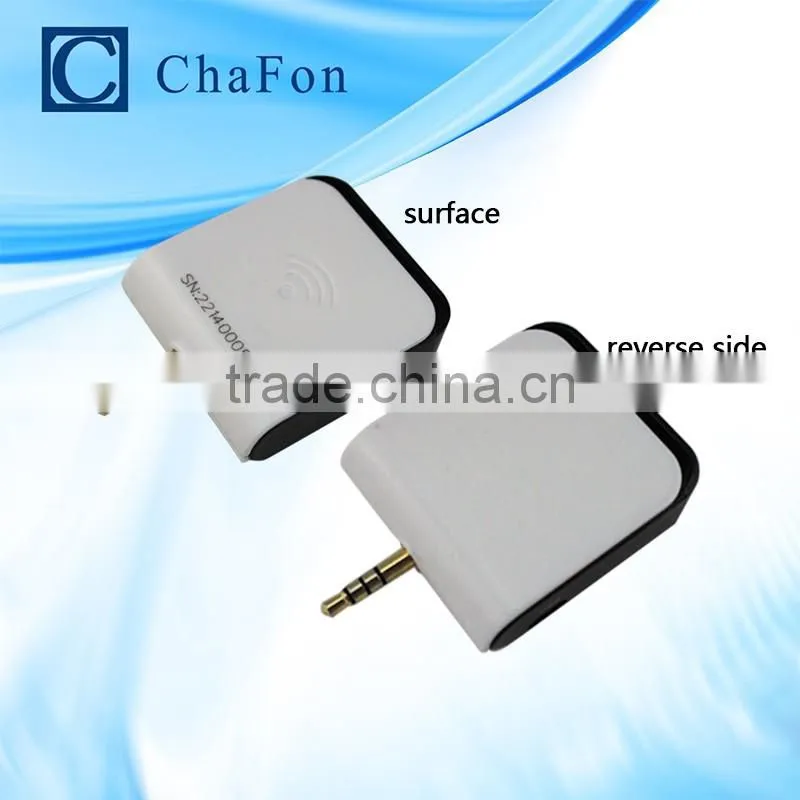

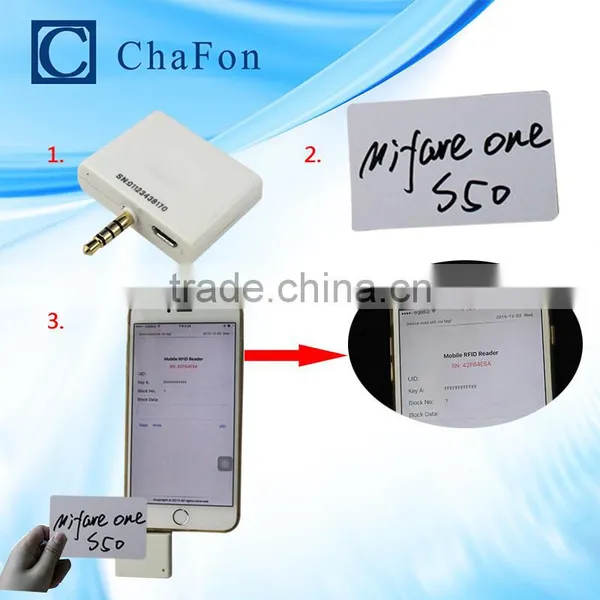

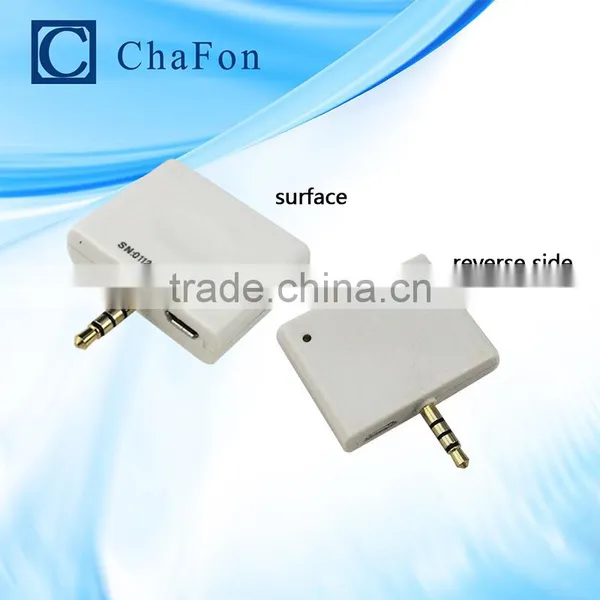

Audio Interface Standalone Rfid Reader Support Iso14443a Protocol to Read and Write Can Work With Android and Ios Phone

Product model

CF-H101

Support protocols

(Mif

1K,Ultralight,NTAG203)only support Key A function.

Support system

IOS, Android intelligent platforms.

Communication interface

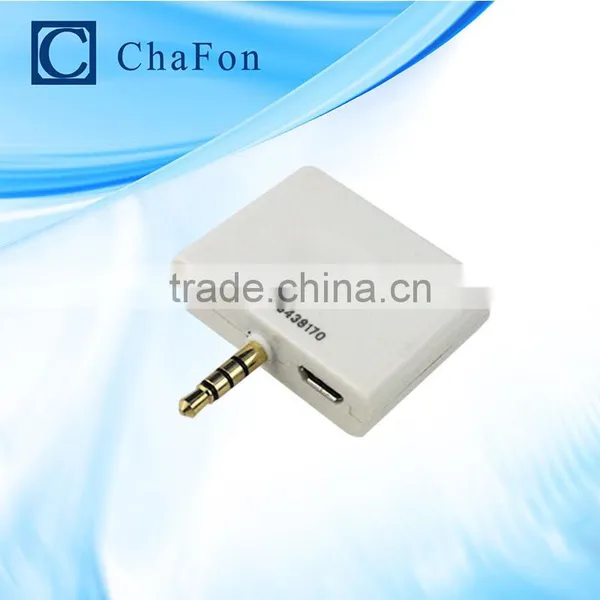

3.5mm audio interface ( common headphone jack)

Read distance

22mm(depend on tag size)

Work time

continuous 7 hours, query over 3 000 times.

Material

ABS+PC engineer plastics

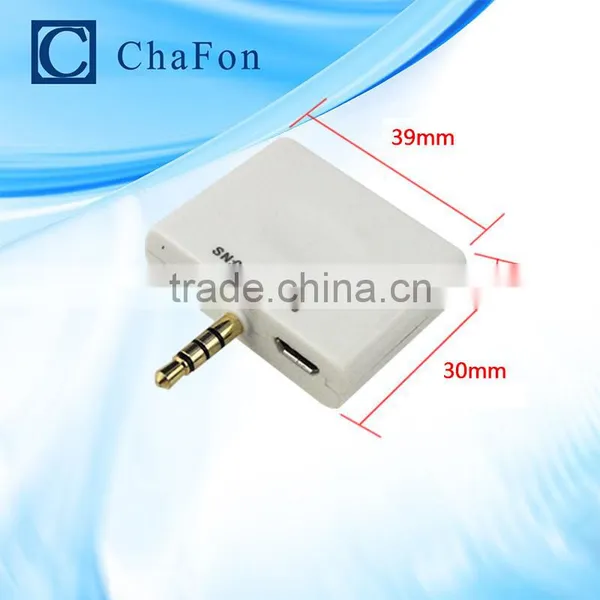

Size

39mm*30mm*11mm

Weight

12g

Battery capacity

Lithium battery 130mA, can be recharged.

Charge method

USB 5V/0.5A,charge time is about 30 minutes.

Work environment temperature

-20 degree ~60 degree

Indicator light states

1. normal work: green light maintain light.

2. read tag ID: green light flashes.

3. Read tag block data: green light flashes.

4. Equipment malfunction: light does not shine.

5. Low power : green light has been slow blink ( low power alarm, please charge as soon as possible )

6. Ultra low power: green light always flash rapidly ( low power can’t use, can’t read card)

7. In charge: long red light.

8. Charge electricity finished: long green light.

Brand

Model No.

apple

iPad2, iPhone4, iPhone4S, iPhone5, iPhone5S, iPhone6, iPhone6S

SAMSUNG

I8150, I9508, I8190N, 9300, I569, N719, I939, N7100CC, I8262D, S5820, I9500, S7566,

 S7562i, S7568, S5830, S5830I, S6500D, S7562, I959, I519, I509

HTC

A6380, A510e, Rezound, A9191, S710E,

T329t, S510b, T328W, T328D, X315E, Z710e, Z710

OPPO

U701T, R815W, U705T, U705W, R805, R823T, R801, R821T

BBK

Y3t, X1S, Elt, X1St, Y11, S7, S6T, Y19T, S9, S6, X1w, S7t, X3t, X3+

Sony Ericsson

ST18i

Sony

LT26i

TETC

G19

eliteK

ET666

MI

M2, MI-ONE, MI1S, MI 1 SC, MI 2, MI 2A, MI 2S, MI 2-SC, MI-ONE Plus

ZTE

U880s, U930, V880, N880E, U880, N880, U956, V790

HUAWEI

C8813D, C8813Q, C8812, C8812e, P6-U06,

T8951, U8661, C8650+, G510-0010, G520-0000, U8836D, G610, G610-U00, T8830,

Y210-2010

Coolpad

5930, 7260+, 7295A, 7295, 7019A, 7296

Lenovo

P770, A560e, S890, A288t, A820, A60+, P700i, A798t, S720

Konka

W990, U926

MEIZU

Mx2, M032

LOVME

X10

VOTO

T6000, X2

Android

T9989
