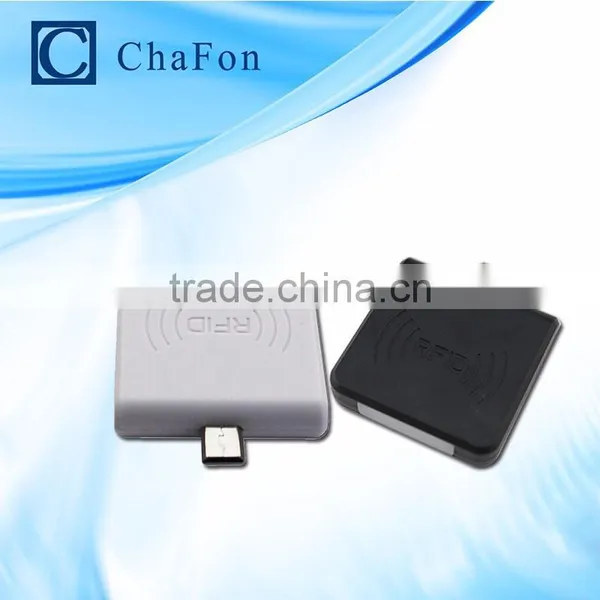

small size card reader android 13.56mhz rfid reader
CF-RH400 is a portable 13.56MHz reader, can supply in reader&writer or reader only type, can connect with Android device via mini USB interface. don’t need additional power supply.
Exquisite and small design not only simple and convenient in using, but also reading accurately and reliable.It not only can be used on Android system mobile phone and tablet, can be also used in pc via OTG Converter. Reader only device Will output ID number in output software (such as notepad, WORD, EXCEL, etc editor).
Parameter
• Frequency:13.56MHZ
• Support:Mifare one S50,S70 ISO14443A standard
• Operate system:Android(testing mobile: Samsung,Sony,VIVO,MIUI)

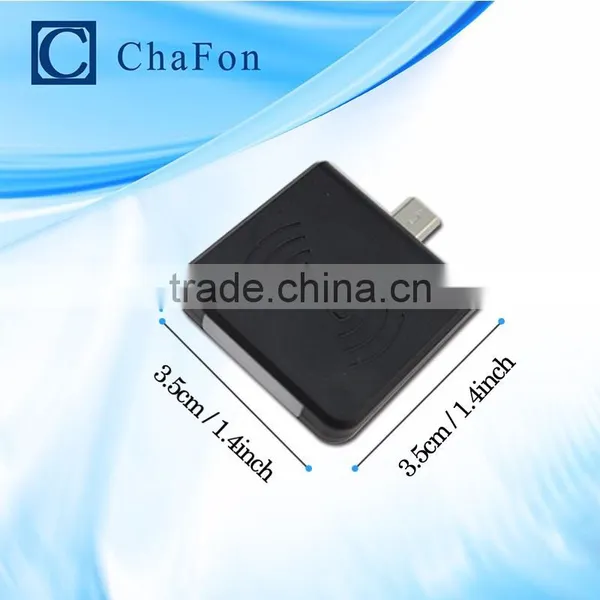

• Product size(interface not included): 35mm*35mm*7mm
• Package size: 71mm×71mm×19mm
• Read range : 0-3cm(front/back side reading);0-10cm(flank reading)
• Reader time: <100MS
• Read speed: 0.5S/time
• Read interval: 0.3S
• Interface: mini USB
• Power supply: USB
• Weight: 20G(NW)/50G(GW)
• Service Temperature:(-20℃~85℃)
• Humidity:(5%~95%)
• Power supply: 5V
• Consumed Current:100mA
• Status Indication:2 co lour LED(blue lighting or green lighting)

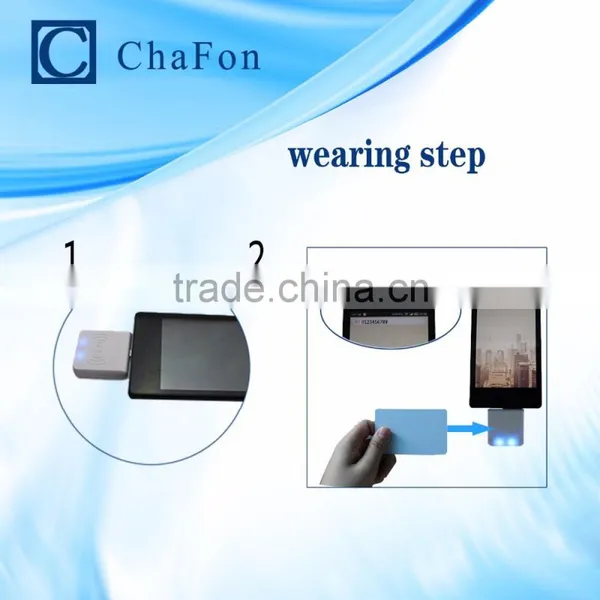

Reader only using method
1. reader connect with Android mobile phone through Micro USB interface,LED co lour in blue ,it means reader is waiting for reading cards.
2. Open output software(such as memorandum/Note editor) in mobile/tablet, put card close to reader,will output the ID card number in output software, and enter a new line.
Reader&writer, we will provide SDK, demo software and user manual, you can use the demo software to read&write.
