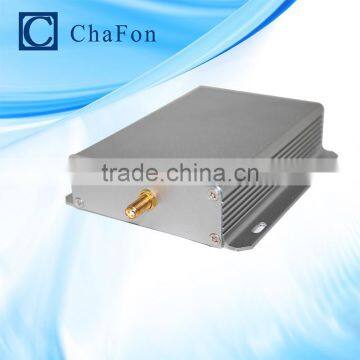

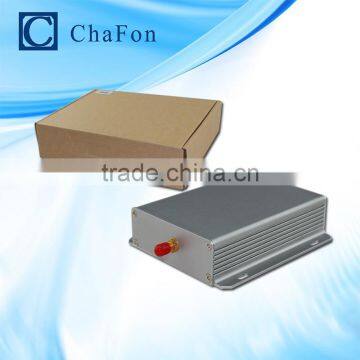

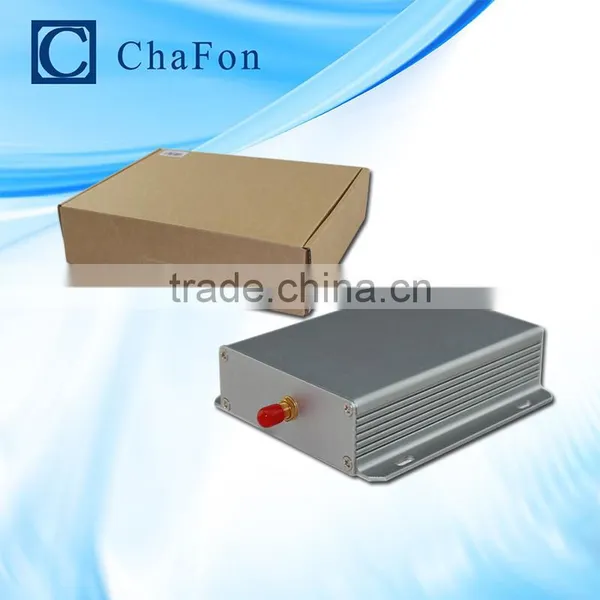

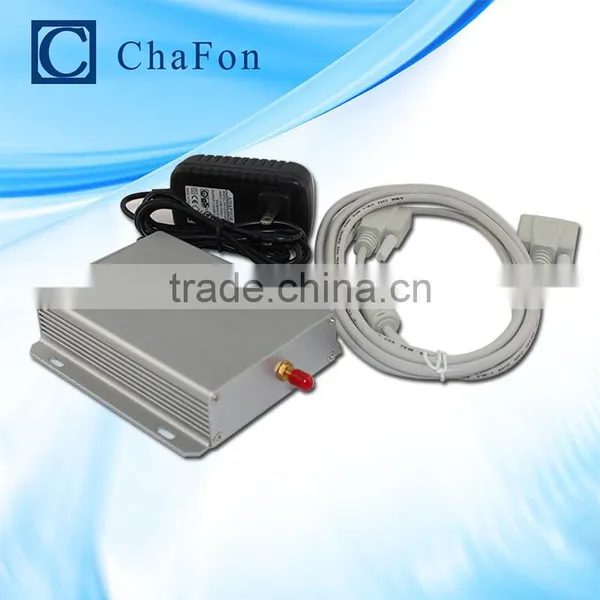

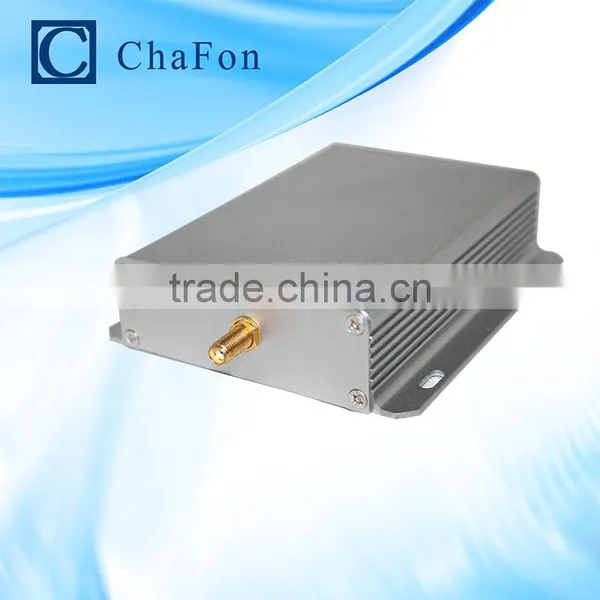

ISO15693 RS232 mid range RFID reader with free SDK accept paypal
CF-RH9011 is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietory efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
FEATURES
1.Self-intellectual property;
2.Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM…);
3.RF output power over 1W;
4.Advanced anti-collision algorithm. High identification rate with tag processing speed 30~50pcs/s);
5.SMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 70cm;
6.Support TRANSPARENT COMMAND;
7.Support optional DPPM and WPPM;
8.Support multiple readers network;
9.Low power dissipation with single +12V DC power supply;
10.Provide DLL and demonstration software to facilitate development
INTERFACE DESCRIPTION
Standard DC power supply socket.

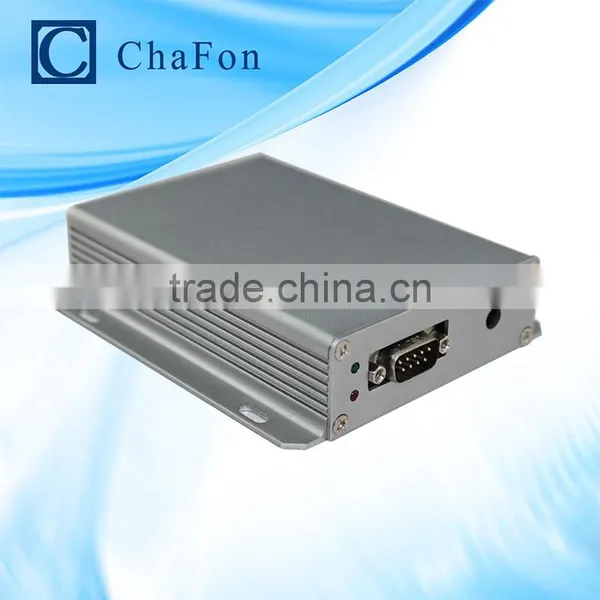

Standard DB9 Female Socket to be directly connected to the host.
No. | SYMBOL | COMMENT |
1 | G_IN1 | General TTL level input with internal 20kΩ pull-up resistor to +5V |
2 | TXD(R-) | RS232 serial data output or RS485 R- |
3 | RXD(R+) | RS232 serial data input or RS485 R+ |
4 | G_OUT1 | General TTL level output with drive/sink 5mA current (max.) |
5 | GND | Ground |
6 | G_OUT2 | General TTL level output with drive/sink 5mA current (max.) |
7 | COMMON | Common contact of built-in relay |
8 | N_C | Normally close contact of built-in relay |
9 | N_O | Normally open contact of built-in relay |
CHARACTERISTICS
Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
G_IN1,G_OUT1,G_OUT2 I/O Voltage | VIO | 7 | V |
Operating Temp. | TOPR | -25~+60 | ℃ |
Storage Temp. |
TSTR | -25~+80 | ℃ |
Electrical and Mechanical Specification
Under TA=25℃,VCC=+12V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT | |
Power Supply | VCC | 11.5 | 12 | 15 | V | |
Current Dissipation | IC |
| 350 | 450 | mA | |
Frequency | FREQ |
| 13.56 |
| MHz | |
Effective Distance* | DIS | 0 | 700 | 850 | mm | |
G_IN1 Input Level | VIH VIL | 3.5 | 2.6 2.3 |
1.55 | V V | |
G_OUT1, G_OUT2 Output Current | ±IO |
|
| 5 | mA | |
G_OUT1,G_OUT2 Output Level | VOH(IO=-5mA) VOL(IO=5mA) | 3.95 |
|
0.73 | V
| |
Relay | Rated Load | CLOAD |
|
| 0.5A at 125VAC 1A at 24VDC |
|
Operating Voltage |
|
|
| 125VAC 60VDC | V | |
Operating Current |
|
|
| 1 | A | |
Size | L x W x H |
| 116 x 104 x 27 |
| mm | |
Related products
Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly product?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
