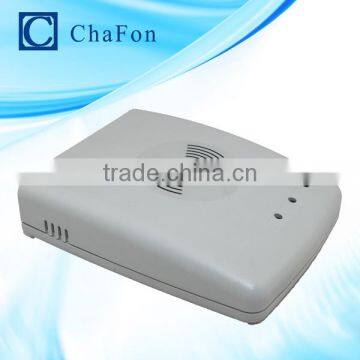

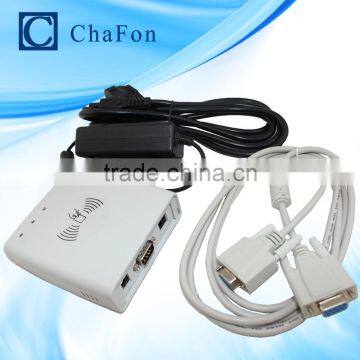

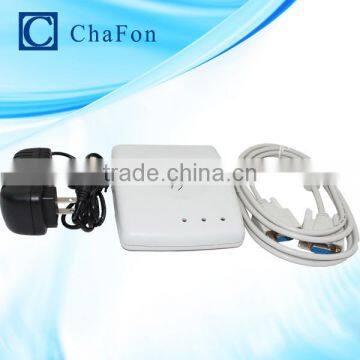

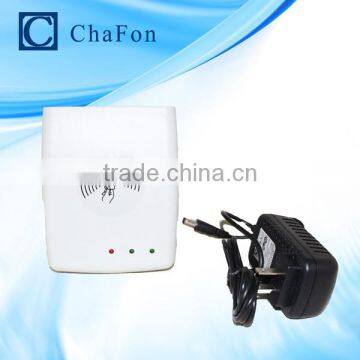

HF 13.56MHz rfid reader writer with ethernet interface
Product Description
CF-RH390 is a high performance Multi-Protocol HF tag reader supporting ISO/IEC15693, ISO14443TypeA/TypeB. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
Product mode explanation
Model | Standard | interface |
CF-RH391 | IS014443A | R(RS232)/TCP/IP |
CF-RH392 | IS014443A/B | R(RS232)/TCP/IP |
CF-RH393 | ISO15693 | R(RS232)/TCP/IP |
CF-RH394 | ISO/IEC14443A/B,ISO15693 | R(RS232)/TCP/IP |
Features
1.Self-intellectual property;
2.Support mainstream ISO/IEC15693, ISO14443TypeA/TypeB protocol tag (TI, PHILIPS, ST, FUJITSU, EM);
3.Advanced tag processing algorithm, high identification rate;
4.Built-in TX/RX antenna with effective distance up to 100mm *;
5.Low power dissipation design with single DC+12V power source needed;
6.Support TCP/IP and RS232 interface and provide DLL and demonstration software to 7.facilitate development;
8.Provide DLL and demonstration software to facilitate development.
Parameter
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 12 | V |
Operating Temp. | TOPR | -10~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
Electrical and Mechanical Specification
Under TA=25°C,VCC=+12V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 11.5 | 12 | 15 | V |
Current Dissipation | IC |
| 150 | 200 | mA |
Frequency | FREQ |
| 13.56 |
| MHz |
Effective Distance * | DIS | 0 | 80 | 100 | mm |
Other Support
1.The reader come with completed English SDK, demo software, user manual and source code, and these documents will help you develop the software for your application.
2.When you buy our reader, we can provide free sample card to you for testing.
1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
2. What is your mainly product?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
