mini contactless reader android usb chip card reader

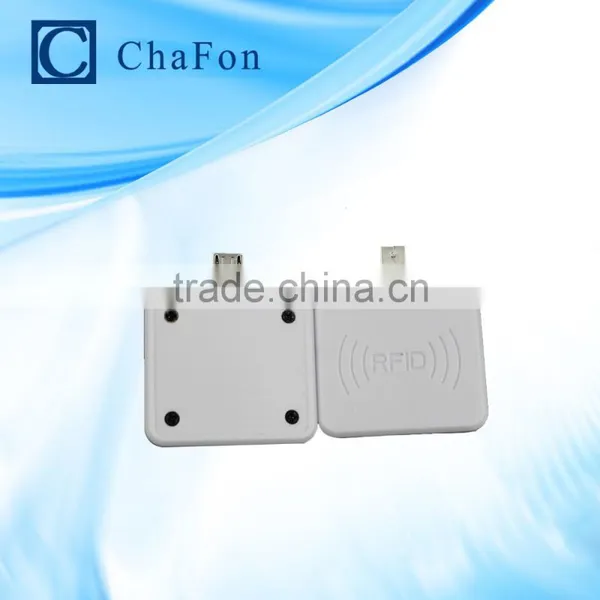

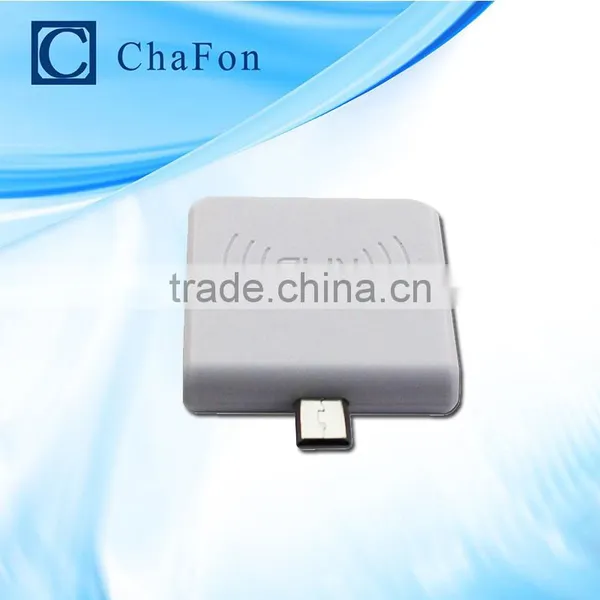

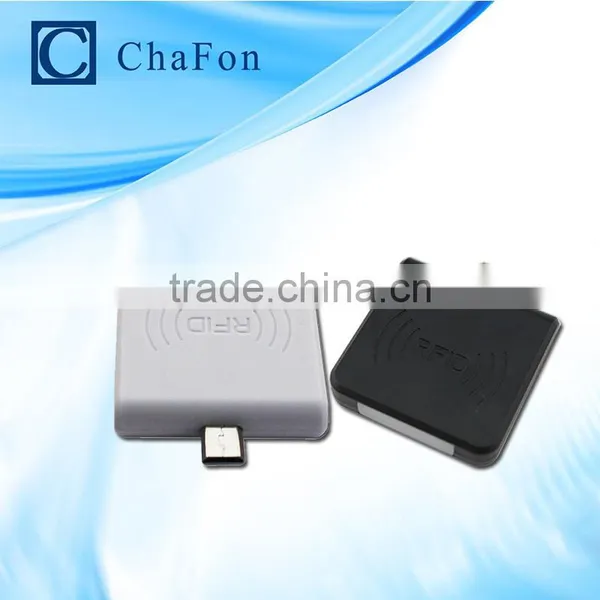

CF-RL300 is a portable 125khz reader only, can connect with Android device via mini USB interface. Plug&play, don’t need additional power supply.

Exquisite and small design not only simple and convenient in using, but also reading accurately and reliable.

It not only can be used on Android system mobile phone and tablet, can be also used in pc via OTG Converter. Will output ID number in output software (such as notepad, WORD, EXCEL, etc editor).

Parameter

 Frequency:125KHZ

 Support:EK4100,EM4100,EM4001 chip card

 Operate system:Android(testing mobile: Samsung,Sony,VIVO,MIUI)

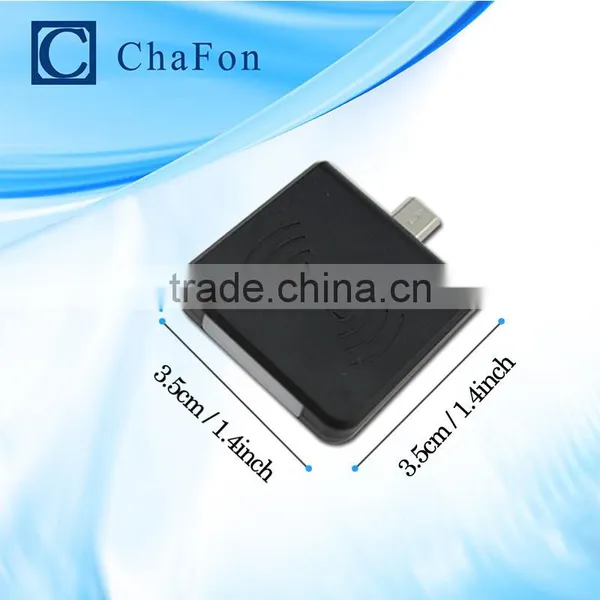

 Product size(interface not included): 35MM×35MM×7MM

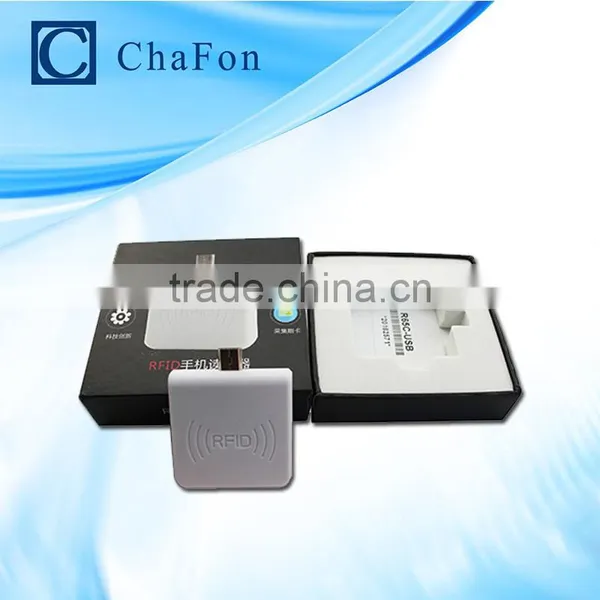

 Package size: 71mm×71mm×19mm

 Read range : 0-30MM(front/back side reading);0-10MM(flank reading)

 Reader time: <100MS

 Read speed: 0.5S/time

 Read interval: 0.3S

 Interface: mini USB

 Power supply: USB

 Weight: 20G(NW)/50G(GW)

 Service Temperature:(-20℃~85℃)

 Humidity:(5%~95%)

 Power supply: 5V

 Consumed Current:100mA

 Status Indication:2 co lour LED(blue lighting or green lighting)

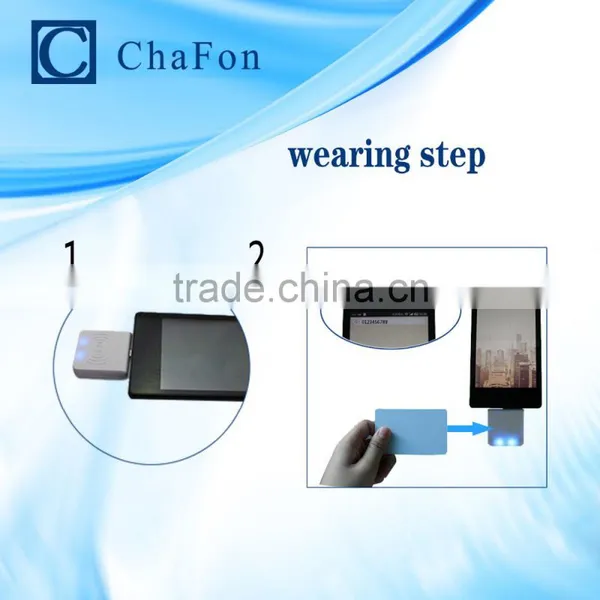

 Using method

reader connect with Android mobile phone through Micro USB interface,LED co lour in blue ,it means reader is waiting for reading cards.

Open ooutput software(such as memorandum/Note editor) in mobile/tablet, put card close to reader,will output  the ID card number in output software, and enter a new line.
