Specifications
Long Range Active RFID tags 2.4GHz1.RFID tag with battery
2.Effective reading range up to 80m
3. Active operating mode

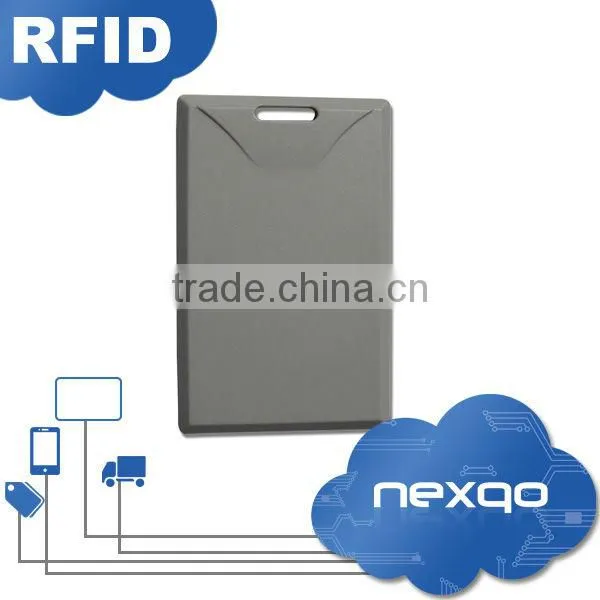

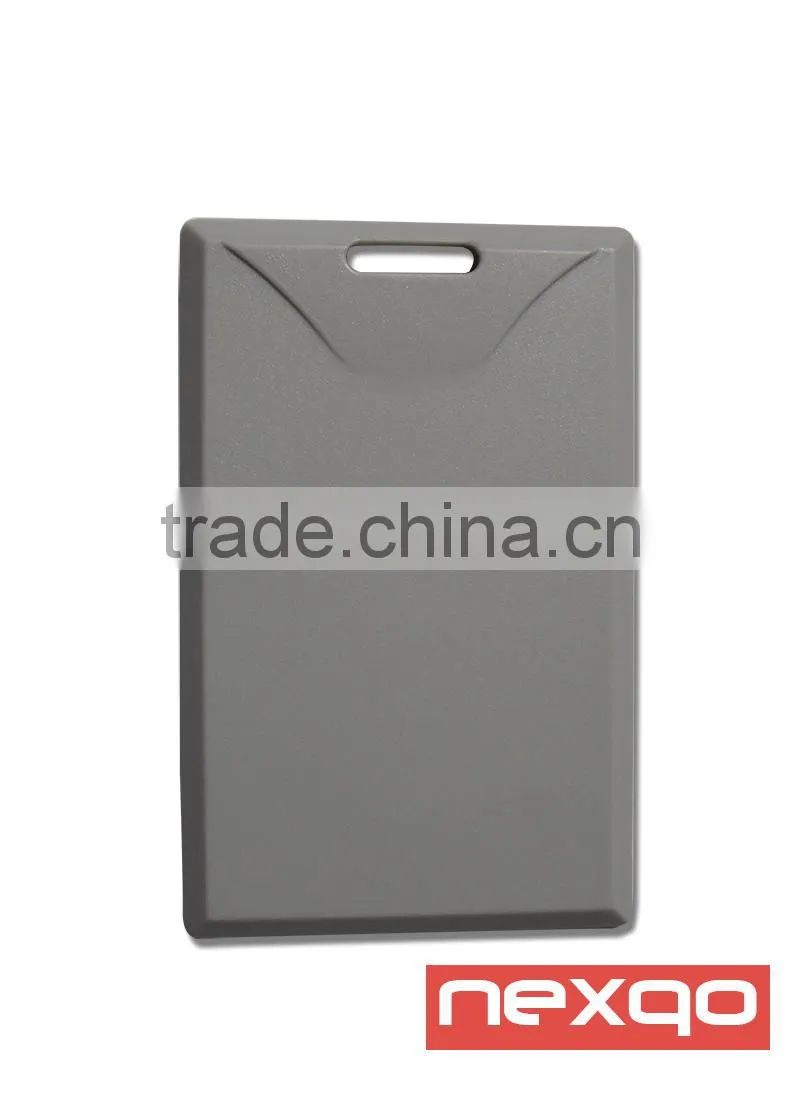

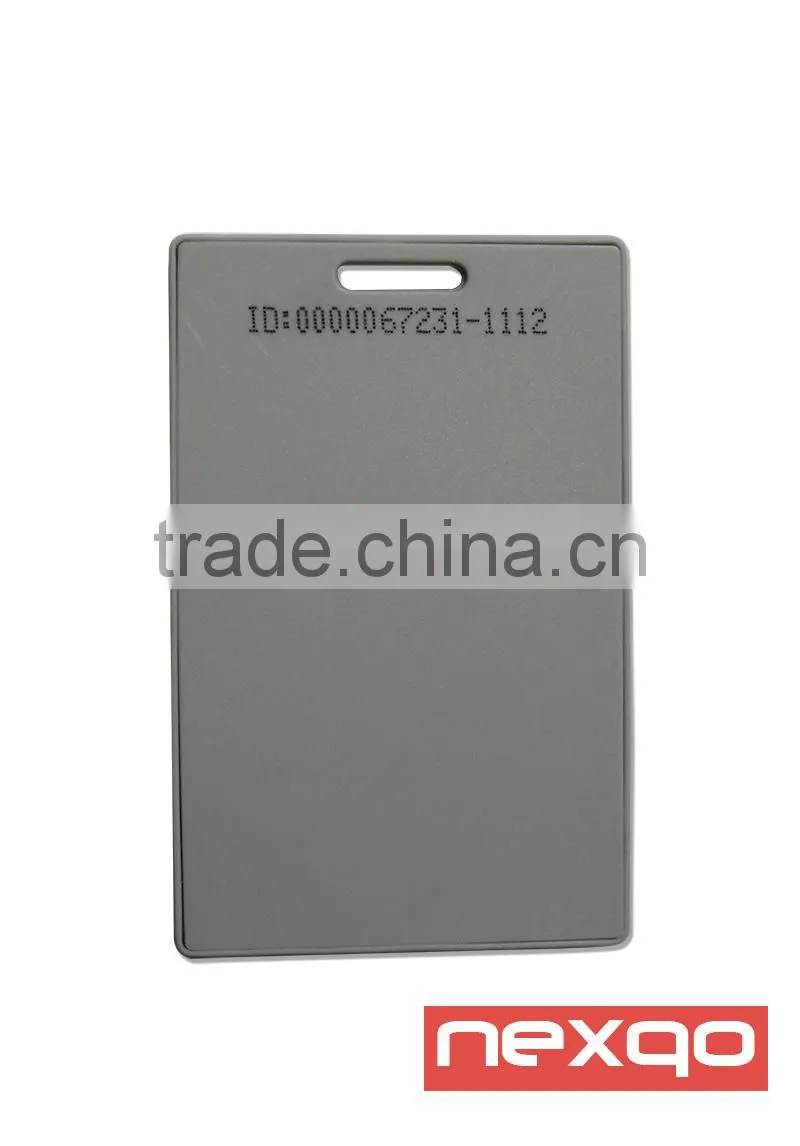

Long Range Active RFID tags 2.4GHz
Product Feature
1. Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2. Effective reading range up to 80m (depend on reader and antenna, software configurable);
3. Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4. Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Physical Characteristic:
Model No | NEX-3831E |
Type | 2.4G Card Type (read only) |
Inductive mode | Initiative transmit, RF Power-0dBm transmit every second |
Material | ABS, heat resistant ,White color/Black Color |
Dimension | 86*55*5.2mm |
Battery | Battery life 3 years (battery can replace) |
IP Grade | IP54 |
Weight | 28g |
Microwave Link Characteristic:
Signal Modulation Mode: GFSK
Communication Speed: one-way 1Mbit/s
Operating Frequency: 2.4GHz
Maximum output power: 0dbm (1mw)
Receiver sensitivity: -85dbm
Error Rate: 10-6
Electrical Characteristic:
Quiescent Current: Less than 3MICROAMP
Operating Current: Less than 16mA
Operating Temp: -20°C~+45°C
Storage Temp: -30°C~65°C
Operating Humidity: Less than 85%
Drop Test: 1m (concrete floor) fall free
System Features:
l The electronic license is unique and able to be duplicated;
l Track the movement of vehicles, not influenced by weather;
l Identification vehicles without stop; Set up mobile monitoring point at important crossings;
Nexqo Service:
1. Your inquiry will be well replied within 24 hours.
2. Competitive price, high quality and prompt shipment. Samples will be shipped within 3 working days after confirm receipt of the payment, for bulk production please contact us for an exactly delivery date.
3. Payment: You could pay via T/T, Western Union, Paypal.
4. Shipment: FedEx, DHL, TNT or your own shipping forwarder.
