Portable RFID Reader with Antenna
Our website is
Product Details:
|
RFID
|
||
|
Type
|
LF&HF Handheld Reader DL710PLUS |
|
|
Operating Frequency
|
LF(Low Frequency) 125 KHz or HF(High Frequency) - 13.56MHz |
|
|
Protocol
|
·LF - EM4001 & EM4100 & TK4100 |
|
·HF - ISO15693 & ISO14443 |
||
|
Reading Range
|
10cm maximum |
|
|
SDK
|
Free SDK provided attached to the Reader |
|
|
RFID Antenna Readers System features
|
||
|
Operating system
|
Microsoft Windows CE 5.0 OS (Multi-lingual) |
|
|
Processor
|
SAMSUNG S3C2451 (533 MHz) |
|
|
RFID Antenna Readers Memory
|
||
|
Memory
|
128 MB SDRAM |
|
|
Flash memory
|
128/256/512 MB (standard configuration: 128 MB) |
|
|
Extension
|
Micro SD/TF slot (a maximum of 16 GB) |
|
|
RFID Antenna Readers Barcode Scanning Parameters
|
||
|
Scanning engine type
|
One-dimension laser scanner |
|
|
Scanning speed
|
100±20 per second (bidirectional) |
|
|
Scanning distance
|
60–650 mm |
|
|
Scanning angle
|
54±5 degree |
|
|
Resolution
|
0.127–1.00 mm |
|
Readable bar codes |
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, Code 39, Trioptic Code 39, Code 39 Full ASCII, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar 14, GS1 DataBar Limited, GS1 DataBar Expanded |
|
|
RFID Antenna Readers Audio, Slots, and Ports
|
||
|
USB Ports
|
1 USB Interface |
|
|
Slots(Extension)
|
1 Micro SD/TF Slot |
|
|
RFID Antenna Readers Input/Output devices
|
||
|
Input devices
|
Soft keyboard, Hard keyboard, Scanning start key |
|
|
Output devices
|
3.2 in. TFT-LCD QVGA , (240 x 320) color touch screen |
|
|
RFID Antenna Readers Communication features
|
||
|
Wi-Fi WLAN(standard configuration)
|
802.11b/g |
|
|
Bluetooth(standard configuration)
|
Bluetooth V2.1+EDR |
|
|
Wide-area wireless network (extension)
|
Provides a GSM/GPRS wireless communication module and supports GSM/GPRS Class10 and GSM0710 multiplexing. |
|
|
Camera(extension)
|
Camera with 2 million/3 million pixels and fill light |
|
|
GPS(extension)
|
Integrated |
|
|
RFID Antenna Readers Product specifications
|
||
|

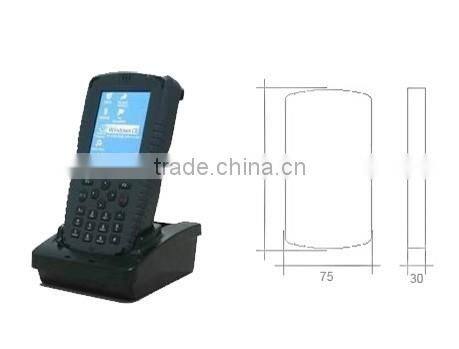

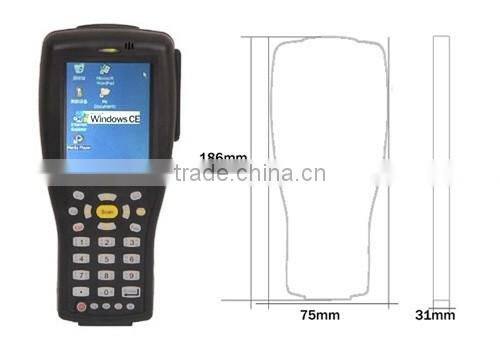

Dimensions
|
150 x 70 x 25 mm (w x d x h) |
|
|
Weight
|
200g |
|
|
RFID Antenna Readers Energy Efficiency
|
||
|
Master battery
|
3.7 V 2800 mAh rechargeable lithium battery |
|
|
Working hours
|
8 or above (depending on the actual environment) |
|
|
Charging time
|
3.5 hours |
|
|
Slave battery
|
150 mAh, providing power for six hours |
|
|
RFID Antenna Readers Environment Requirement
|
||
|
International Protection
|
IP54 |
|
|
Operating Temp
|
-15°C to 50°C |
|
|
Storage Temp
|
-20°C to 60°C |
|
|
Humidity
|
5% to 95% Non-condensing |
|
|
Endurable height for dropping
|
Endure multiple drops to a smooth concrete floor from a height of 4 inches (1.2 m). |
|

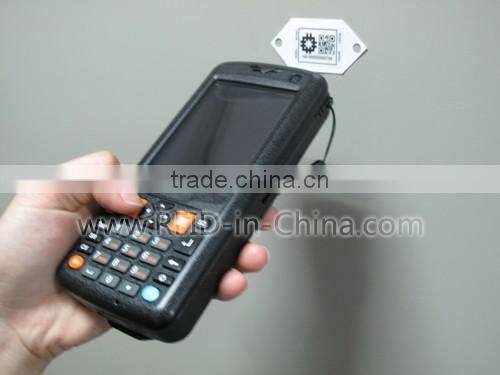

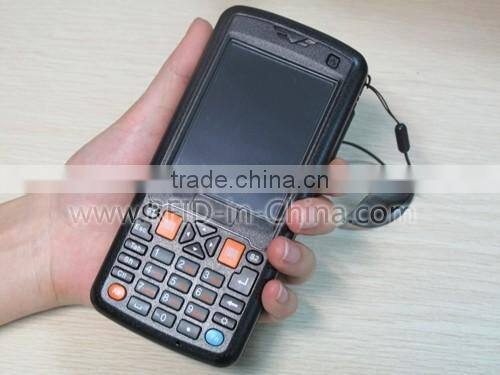

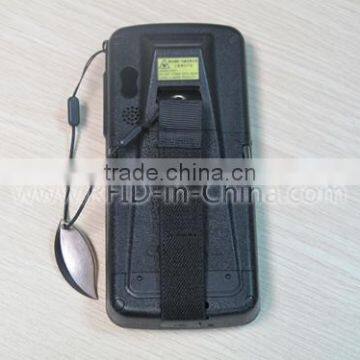

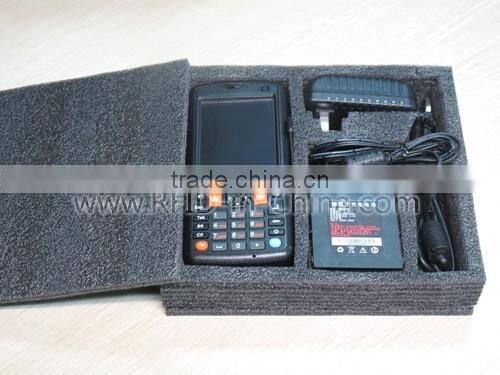

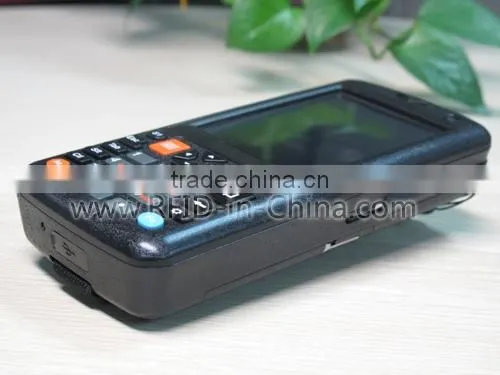

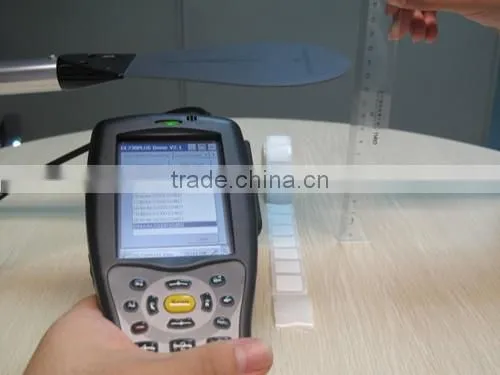

More pictures for Portable RFID Reader with Antenna:

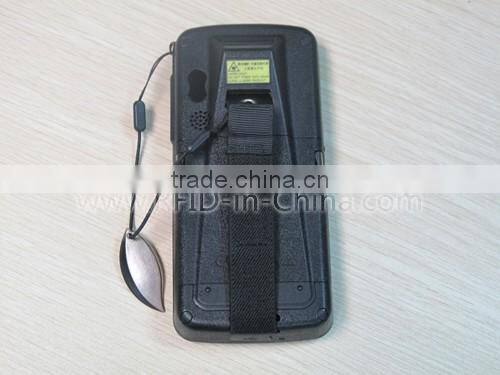

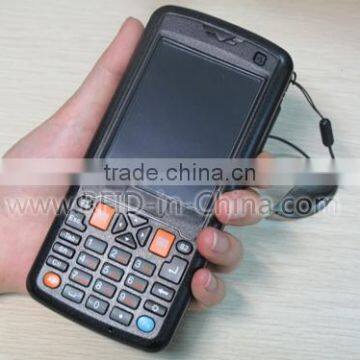

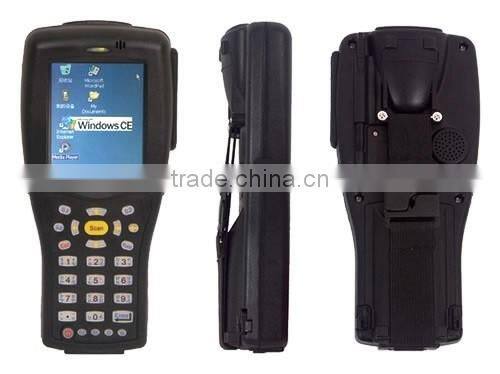

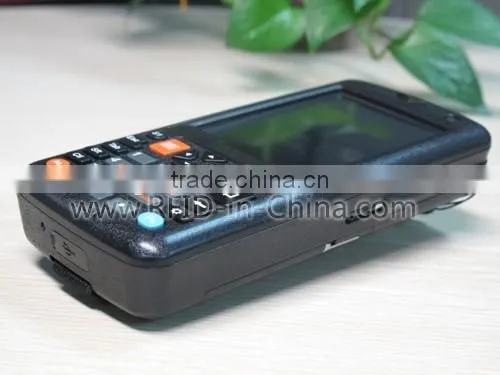

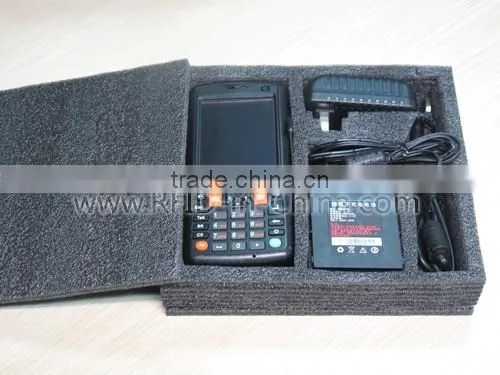

More other pictures for Portable RFID Reader:
