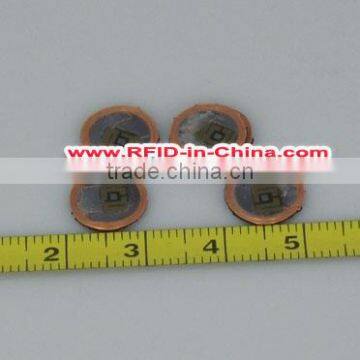

NTAG203/213 HF RFID Writable Tags,13.56MHz RFID One-metal Asset Tracking Tags With Factory Low Price

Description

Contactless read/write on-metal RFID tag is a kind of industrial mount-on-metal RFID tags. It has been widely used in the asset tracking applications, where under the metallic environment. Besides, it can support the highest operating temperature of100°C and longest reading / writing range of 15cm.

This MT011 can be personalized with printing and numbering.

Specification

Type: Contactless R/O or R/W

Operating Frequency: LF(125KHz) or HF (13.56MHz)

IC Available at 125KHz: EM4200, EM4102, EM4100, EM4001, TK4100, GK4100

IC Available at 13.56MHz:

I-CODE (ISO 15693-3), MF Ultralight (ISO 14443A), MF1K (ISO 14443A), MF 4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

Size: dia.32mm,chip:19*19mm, thickness:4mm

Reading Distance: Up to 12cm

Material: PVC / Special Magnetic Material / 3M® Glue

Operating Temperature: -40 centigrades to +80 centigrades

Storage Temperature: -40 centigrades to +100 centigrades

Competitive Advantage

1.Waterproof IP 68

2.100, 000 times reading & writing

3.Excellent read/write performance on any metal surface

4.Exceptional temperature and harsh environmental performance

5.Also Available: Custom colors, OEM logo
