Home > Security & Protection > Access Control System > Access Control Card Reader > Handheld ISO14443 RFID Reader HF Iso 15693

Handheld ISO14443 RFID Reader HF Iso 15693

Name: Handheld ISO14443 RFID Reader HF Iso 15693
Brand: DAILY RFID
SKU: 140571728
Availability: InStock

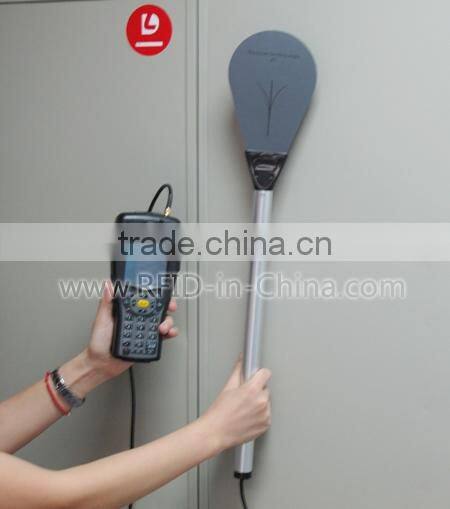

Handheld ISO14443 RFID Reader HF Iso 15693 thumbnail-1

Handheld ISO14443 RFID Reader HF Iso 15693 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DAILY RFID

Model Number:

rfid reader hf iso 15693

Contact Supplier Request Quote Chat Now

Guangzhou Daily RFID Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DAILY RFID

Model Number rfid reader hf iso 15693

Handheld ISO14443 RFID Reader HF iso 15693

Our website is

Product Details:

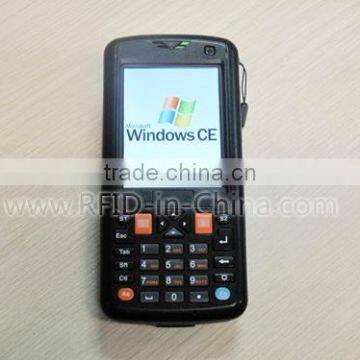

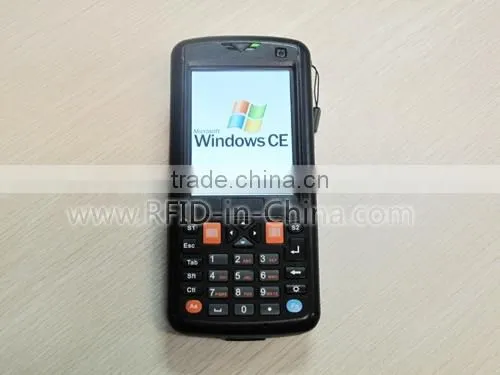

The DL710PLUS product is an industry-level handheld terminal developed, designed, and produced based on features of different industries by our company. The DL710PLUS series adopt ergonomic design and is compact and flexible, shock-proof, and drop-proof. The DL710PLUS series can work in the standby mode for a long time. In addition, the DL710PLUS series adopt the dual power supply mode and support the conversation function, is perfect for Applicable Apparel industry, fast moving consumer goods (FMCG), retail, and supply chain industries Logistics industry, Hospital, government, mobile office, asset inventory and other RFID applications.
RFID
Type	LF&HF Handheld Reader DL710PLUS
Operating Frequency	LF(Low Frequency) 125 KHz or HF(High Frequency) - 13.56MHz
Protocol	·LF - EM4001 & EM4100 & TK4100
Protocol	·HF - ISO15693 & ISO14443
Reading Range	10cm maximum
SDK	Free SDK provided attached to the Reader
System features
Operating system	Microsoft Windows CE 5.0 OS (Multi-lingual)
Processor	SAMSUNG S3C2451 (533 MHz)
Memory
Memory	128 MB SDRAM
Flash memory	128/256/512 MB (standard configuration: 128 MB)
Extension	Micro SD/TF slot (a maximum of 16 GB)
Barcode Scanning Parameters
Scanning engine type	One-dimension laser scanner
Scanning speed	100±20 per second (bidirectional)
Scanning distance	60–650 mm
Scanning angle	54±5 degree
Resolution	0.127–1.00 mm
Readable bar codes	UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, Code 39, Trioptic Code 39, Code 39 Full ASCII, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar 14, GS1 DataBar Limited, GS1 DataBar Expanded
Readable bar codes
Audio, Slots, and Ports
USB Ports	1 USB Interface
Slots(Extension)	1 Micro SD/TF slot
Input/Output devices
Input devices	Soft keyboard, Hard keyboard, Scanning start key
Output devices	3.2 in. TFT-LCD QVGA , (240 x 320) color touch screen
Communication features
Wi-Fi WLAN(standard configuration)	802.11b/g
Bluetooth(standard configuration)	Bluetooth V2.1+EDR
Wide-area wireless network (extension)	Provides a GSM/GPRS wireless communication module and supports GSM/GPRS Class10 and GSM0710 multiplexing.
Camera(extension)	Camera with 2 million/3 million pixels and fill light
GPS(extension)	Integrated
Product specifications
Dimensions	150 x 70 x 25 mm (w x d x h)
Weight	200g
Energy Efficiency
Master battery	3.7 V 2800 mAh rechargeable lithium battery
Working hours	8 or above (depending on the actual environment)
Charging time.	3.5 hours
Slave battery	150 mAh, providing power for six hours
Environment Requirement
International Protection	IP54
Operating Temp	-15°C to 50°C
Storage Temp	-20°C to 60°C
Humidity	5% to 95% Non-condensing
Endurable height for dropping	Endure multiple drops to a smooth concrete floor from a height of 4 inches (1.2 m).
