Specifications
1. rfid card reader
2. 3.2inch screen
dows mobile 6./ android 2.3 OS
4. CE certificate

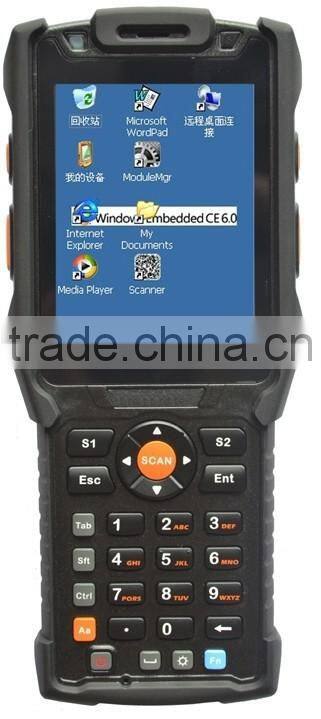

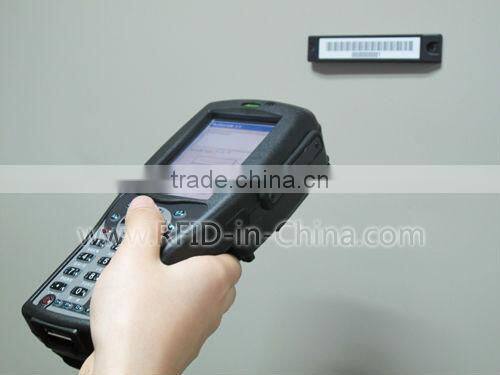

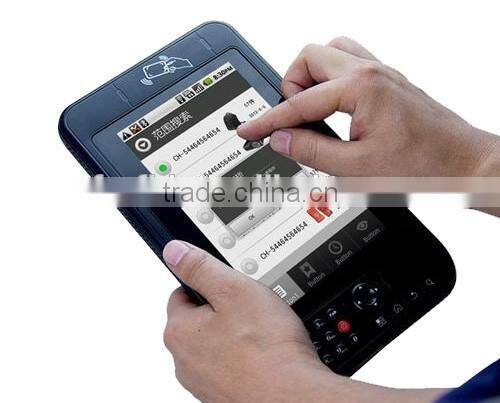

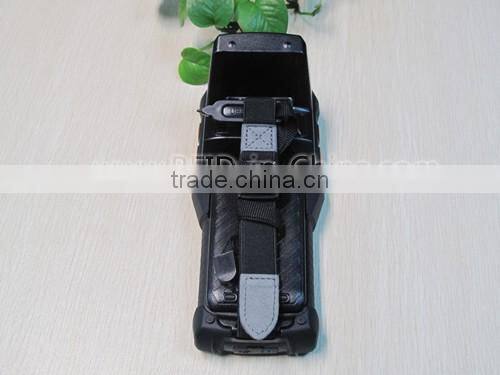

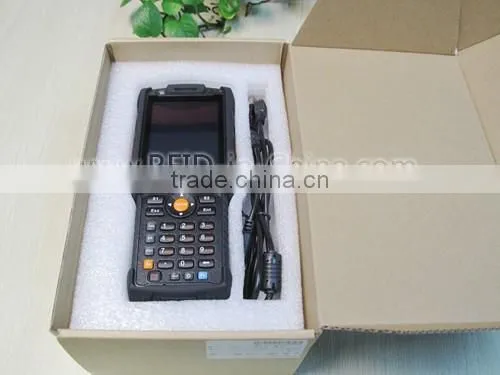

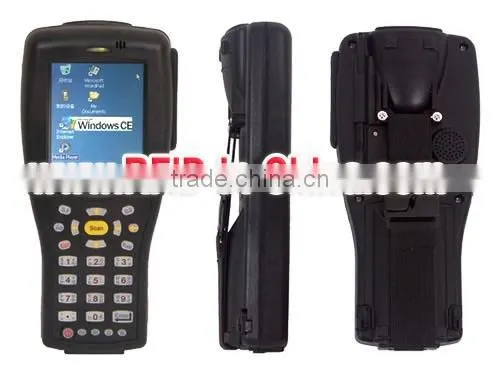

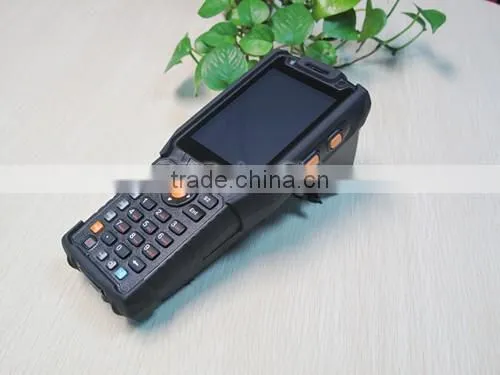

Portable Computer RFID Card Reader Device HF/UHF RFID Handheld Reader
Speedata MT32 selling points:
1. support 1d and 2d barcode reader.(Infrared/ Laser/ DDC)
2. support 13.56Mhz RFID reader(ISO14443&ISO15693)
3. support Android 2.3 & Windows mobile 6.x
4. Low cost industrial portable pda
5. IP54/ SDK free
Specification Data
| Core board | ||||
| WM6.1/6.5 OS | option 1 | Marvell PXA310(624MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS, EDGE/WCDMA 2100MHz HSDPA 3.6Mbps) | ||
| Android OS | option 2 | Marvell PXA910(806MHz)+qualcomm (GSM Quad-band 850 /900 /1800 /1900 MHz, GPRS, EDGE WCDMA 3G 900/1710/2100MHz HSDPA 3.6Mbps | ||
| Memory | Flash ROM | 512MB | ||
| RAM | 512MB DDR (256MB for windows mobile OS) | |||
| Extend Slot | Micro SD 16G (SDHC) | |||
| Motherboard | ||||
| Display | 3.2inch TFT LCD (Transflective screen QVGA) | |||
| touch screen | 4-wire resistive | |||
| Form Factor | Bar type classical Pocket PC,Industrial appearance | |||
| GPS | Qualcomm chipset (WM OS) | |||
| UBLOX module (Android OS ) | ||||
| Bluetooth | Bluetooth SIG version 2.0 compliant; Supported profiles: headset, hands-free, object push, serial port, dial-up network | |||
| WiFi | WiFi (802.11 b/g) | |||
| DGPS | option 1 | ublox lea- 6N | ||
| option 2 | ublox lea- 6T | |||
| RFID Reader | option 1 | HF RFID(13.56MHz ISO 14443A/B) | ||
| option 2 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | |||
| barcode scanner | option 1 | NEWLAND:EM1300(1D Infrared barcode reader) | ||
| option 2 | NEWLAND:EM3000(1D/2D barcode reader) | |||
| option 3 | symbol:SE955(1D laser barcode reader) | |||
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | |||
| option 5 | Honeywell:5100(1D/2D barcode reader) | |||
| option 6 | symbol se4500(1D&2D barcode reader) | |||
| External Interface | USB HOST/RS232(Customized) | |||
| Protection class | IP54 | |||
| Drop resistance level | 1.5m | |||
| Camera | Camera | 5MP AF | ||
| Video | Support still image and video capture | |||
| Keypad | Front | 30keys | ||
| Side | 4keys | |||
| Interface | Mini-USB connector | USB2.0 connection | ||
| SIM card slot | Yes | |||
| PSAM card slot | option | |||
| TF card slot | Yes | |||
| power jack | Yes | |||
| Audio Jack | Yes | |||
| Battery | Type | rechargeable Li-ion battery 3600mAh | ||
| Standby Time | 500hours | |||
| Calls Time | Up to 6hours | |||
| Charging Time | 4 hours | |||
| Physical Characteristics | Dimension | 149*72*28mm | ||
| Weight | >300g with battery (according config) | |||
About the company:
DAILY RFID Co., Ltd is a professional manufacturer of industrial PDA/ portable data collector, wireless barcode reader , android barcode scanner, android bluetooth rfid reader, tablet with rfid reader, android handheld barcode scanner, parking ticket machine, bluetooth fingerprint reader , waterproof tablet pc ip65 in China for 17 years. We have kinds of customers in all over the world.
Why choose us
1. Experienced
- More than 17 years experience in production(OEM,ODM included), R&D and oversea sales, we know how to be a good manufacturer and business partner.
2. High Quality Products
- Battery: All products are equipped with Polymer Lithium Battery which is much safer and more durable.
- All of our products meet the CE, standard.
3. Satisfactory Service
- Before-Sale Service: quick response within ONE working day; patient communication
- On-Sale Service: delivery on time; quality and quantity assured
- After-Sale Service: 13 months warranty period; technology support during your project.
DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website or email us, we will contact you as soon as possible.
