Middle Range UHF Embedded RFID Reader With Impinj R200 Chip for Car Parking System
Middle Range UHF Embedded RFID Reader with Impinj R200 chip for Car Parking System

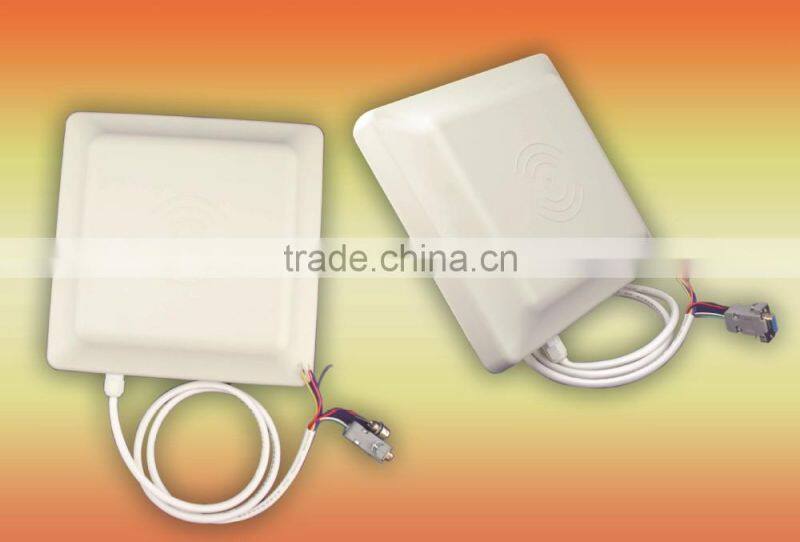

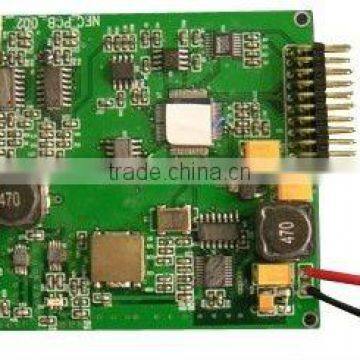

1. Pictures of product
2. Specifications of product
| Working frequency | 902-928Mhz(Customizable) |
| Protocols | ISO18000-6B, ISO18000-6C (EPC CLASS1 G2 ) |
| Interfaces | RS232, RS485, Weigand 26/34, (RJ45 and WiFi optional) |
| Reading distance | 0-5m |
| Gain | 8dbi |
| Polarization | Circular polarization |
| Transmission mode | FHSS or Fix Frequency transmission |
| Working mode | Auto-running, interactive and trigger-activating |
| RF output power | 30dBi(Adjustable) |
| Power | DC+9V |
| Software | C#,VB, Delphi Demo;C#, Java, VC SDK |
| Storage temperature | -10- +60℃ |
| Operating temperature | -25 +80 ℃ |
| Item Size | 235x235x57mm |
| Net weight | 900g |
Logistics, warehouse management vehicle auto access control, car parking management, manufacturing control and etc
1 piece/carton, with a power adaptor, mountting parts, Packing size:350×250×120mm, Gross weight:2kgs
car parking reader car parking reader car parking readercar parking reader
1. Customers offer general information about the projects which you will use this product, such as how
long is reading distance, on what kind of materials to install tags, what are the purposes you'de like
to achieve.
2. Our sales will make a professional recommendation according to the requirements of your projects.
3. After your confirmation of working frequency, power plug, commuication interfaces, we will quote
according to your quantity.
4. Your PO will be dealed at the first moment and send to you as soon as possible.
DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website or email us, we will contact you as soon as possible.
