UHF RFID Animal Tag RFID Chip Design Printable Anti-Allergic RFID Animal Chip

Description

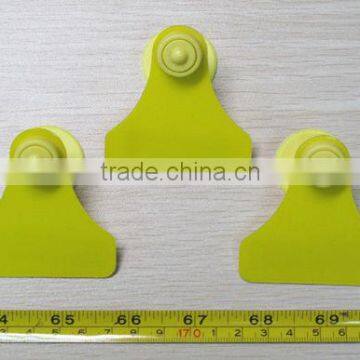

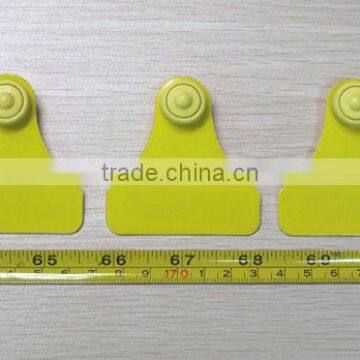

Constructed from polyurethane, this round RFID ear tag is specially designed for livestock tracking such as sheep, cattle and pigs. Available in 125KHz, 134.2KHz or 13.56MHz frequency options, this RFID animal ear tag provides a good way to improve the efficiency of the livestock management. And it can be made with various chips, such as Hitag-S, EM4100, MF-One S50. Thus, with these smart ear tags attached to every cattle, and by scanning each ear tags by RFID reader and transferring the data to the computers and networks, the information of each livestock can be searched on the computer.

Available in LF or HF frequency, this RFID livestock ear tag is ideal for applications of tracking animals on large area - sheep, pigs, cattle and the like. Since each animal ear tag has its unique ID number, livestock owners can easily get animal’s information, such as feeding, location, vaccination, etc.

What’s more, the housing material of this animal tag is made of polyurethane which is used in healthcare and not easy for bacteria to grow. Thus, this animal tag makes it play an important role in reducing the chances of livestock infection during the system building period.

Specification

Type: Contactless R/O or R/W

Operating Frequency: LF(125KHz / 134.2KHz) or HF (13.56MHz)

IC Available at 125KHz: EM4102, EM4100, EM4001, TK4100, GK4100

IC Available at 134.2KHz: HITAG-S 256 Bit, HITAG-S 2048 Bit

IC Available at 13.56MHz:

I-CODE (ISO 15693-3), MF Ultralight (ISO 14443A), MF 1K (ISO14443A), MF 4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

Size: chip:dia.32mm, height:9mm

Reading Distance: Up to 5~20cm (Depends on reader and IC type)

Material: TPU / PU Anti-allergic Material

Operating Temperature: -40 centigrades to +80 centigrades

Storage Temperature: -40 centigrades to +100 centigrades

Competitive Advantage

1.Waterproof IP 68

2. Anti-allergic Material

3.Read distance: Up to 5~20cm (Depends on reader and IC type)

4.Flexible & easy-to-wear

5.100, 000 times reading & writing

6. Also Available: Custom colors, number printing
