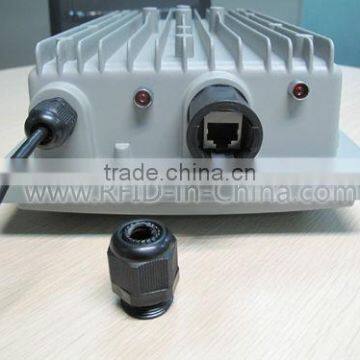

Help CenterEthernet/RS232 Directional Long Distance RFID Reader 2.4GHz Active Long Range Reader
Related Products
-
WIFI/Bluetooth RFID Inventory Computer Programs RFID Active ReaderNegotiableMOQ: 1 Set -
100 Meters RFID Inventory Computer Programs, Best Active RFID ReaderNegotiableMOQ: 1 Set
-
Factory Price for Nfc Access Control ReaderNegotiableMOQ: 100 Pieces
-
Low Cost 2.4GHZ Passive Active RFID Tag Reader for AssetTrackingNegotiableMOQ: 1 Piece
-
Low Cost Parallax RFID Card Reader Long Range RFID Active ReaderNegotiableMOQ: 1 Piece
Keywords Searching: Long distance 2.4G active RFID directional reader, 2.4G RFID Reader, active integrated reader, long distance RFID reader, directional rfid reader, active directional rfid reader, 2.45ghz rfid reader, vehicle access control rfid reader, RFID reader price,RS232 RFID reader, Ethernet RFID reader.
Technical data
- Frequency Band--2.400-2.4835GHz
- Reading Range-- 0-200m(adjustable)
- Simultaneous Tag Detection—200
- Sensitivity-- -95dBm
- Waterproof--IP67
- Software---development kit of API (C++ and C#)
- Communication interfaces-- RS-232, RS-485, Wiegand 26/34,
- 10/100M Adaptive Ethernet and customized interfaces
Applications
- School & cooperation personnel management and positioning
- Automatic vehicle identification
- Parking management, highway toll collection
- Warehousing and logistics
- Vehicle Tracking
Specifications
RF Parameters | |
Operating Frequency | 2.4-2.48GHz |
Sensitivity | -95dBm |
Communication Interfaces | RS-232, 10/100M Adaptive Ethernet |
Expansion Interfaces | RS-485 interface, Wiegand 26/34 interfaces |
I/O Port | 2- channel relays output(optional), 2- channel trigger input(optional) |
Firmware Upgrade | Upgrade through Serial Port |
Application Software Platform | Provide development kit of API(C++ and C#) |
Tag operation | |
Tag Protocol | Private Protocol |
Tag Operating Mode | Compatible with active and passive operating mode tags |
Reading Range | 0-260m (depend on the tag power output) |
Identification Speed | 200pcs/s (tag ID) |
Anti-confliction | Identifying 300pcs tag at the same time |
Mechanical & Electrical performance | |
Dimensions | 315mm×200mm×110mm |
Weight | 1.7kg |
Power Supply | DC5V input |
Power Consumption | 300mW |
Power Isolation | 1KV (Except Ethernet data, I/O port) |
Operating Temperature | -40°C~+60°C |
Storage Temperature | -40°C~+80°C |
Humidity | 5% ~ 95% (non-condensing) |
Waterproof | IP67 |
Shock Resistance | 10~500Hz, 100mm/15g, triaxial |
