Home > Security & Protection > Access Control System > Access Control Card Reader > 200 M Reading Range Parallax RFID Card Reader for Logistics Management

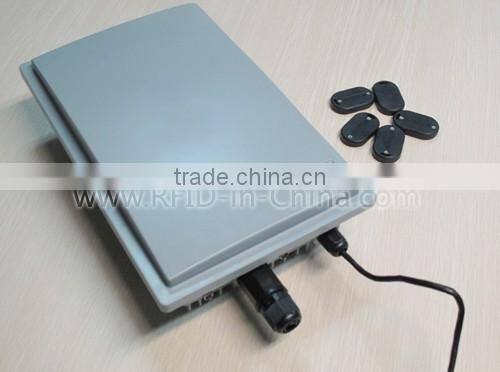

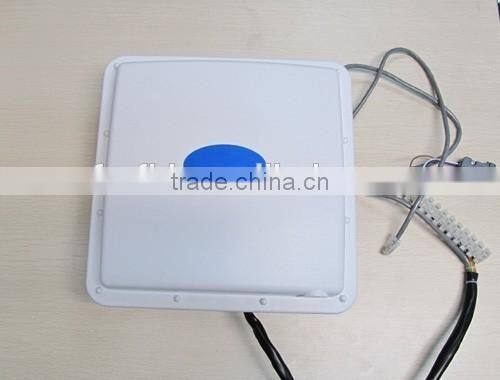

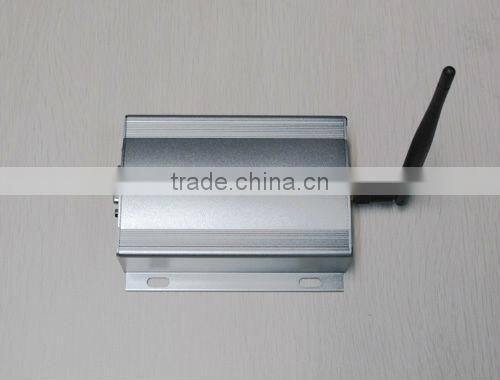

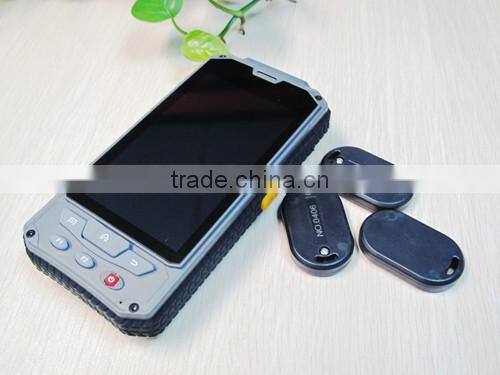

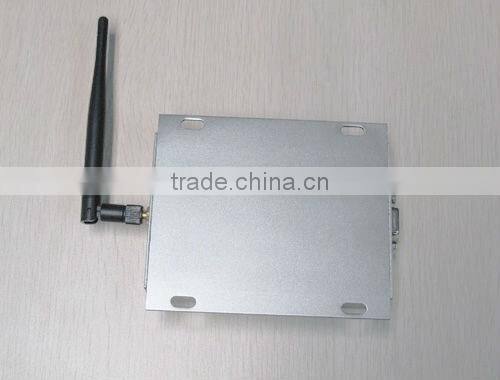

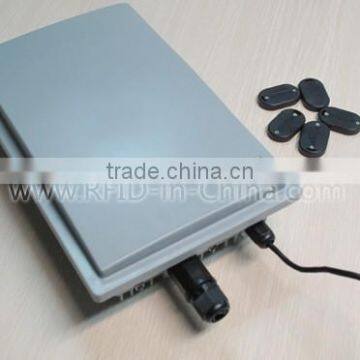

200 M Reading Range Parallax RFID Card Reader for Logistics Management

Name: 200 M Reading Range Parallax RFID Card Reader for Logistics Management
Brand: DAILY RFID
SKU: 140569436
Availability: InStock

Guangzhou Daily RFID Co., Limited

200 M Reading Range Parallax RFID Card Reader for Logistics Management thumbnail-1

200 M Reading Range Parallax RFID Card Reader for Logistics Management photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DAILY RFID

Model Number:

Parallax RFID Card Reader

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DAILY RFID

Model Number Parallax RFID Card Reader

200 M Reading Range Parallax RFID Card Reader for Logistics Management

Our website is .This 2.45GHz RFID active reader DL580 is designed for asset tracking. With its long read up to 100 meters, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of asset tracking and management.

Product Specifications:

Important performance
Working frequency	ISM 2.4GHz ~ 2.5GHz
Identifiy direction	Omni-directional or directional (antenna dependent)
Antenna	Connect 1 antenna through SMA
Standard matched antenna	Omni-directional antenna
RF Power Range	-20 dBm ~ 0 dBm (set by software)
Receiving Sensitivity	-90 dBm
Modulation	GFSK
Read-Write performance
Read Mode	1) Automatic identifying within effective area (Auto mode) 2) Reading after external trigger (Trigger mode) 3) Reading under software command (Master-slave mode)
Identify Tag Time	Less than 1ms when identify single tag
Anti-collision	Read up to 500 pieces of tags simultaneously
Read distance	0 ~ 100 m adjustable For reader with RSSI function, the distance will be half the above distances
Buffer Capacity	1000 tags data
Working Status Indication	Buzzer, LED indicator light
Communication performance
Communication Speed	1000kbps
Input and Output	1 triggering input
Optional function	2 Relay output, CAN, RSSI
Data Port interface
RS232 Port	Yes
RS485 Port	Yes
USB Port	Yes
Weigand Port	Weigand26/34/42/50
Ethernet	Yes
Electric parameter
Power supply	DC+5V,1A
Exterior and weight
Product size	119 mm100 mm35 mm
Packing size	300 mm280 mm90 mm
Gross weight	900 g
Net weight	250 g
Accessories	Standard matched antenna, DC 5V/1A adapter, power cable, RS-232 cable, USB cable, Ethernet cable
Working environment
Working temperature	-20°C ~ 70°C
Storage temperature	-40°C ~ 85°C

Competitive Advantages:

Extensive experience, leading technology and innovation
Provide one-top personalized products, data security and application solutions
DAILY RFID has a professional design team, close to trend of world
High quality and competitive price
Customized based on your specific requirements
Excellent after-sale service, guarantee commitments
Cooperation with top-level partner
Professional creates assurance
Have our own manufacturing factory
We can open a new mould for you, with your logo engraved on the current wristband tag. Or produce new tag completely with your design, more details please contact the sales.

We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements.For more info about RFID products please kindly visit our website http:// or mail to us,our sales will contact you as soon as possible.

-Best DAILY, Best RFID-
