100m Reading Range Texas Instruments RFID 2.4GHz Reader With Multiple Tags
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DAILY RFID
Model Number:
Texas Instruments RFID
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou / Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Active RFID GPS Tracker for Vehicle TrackingNegotiableMOQ: 1 Set -
Cheapest RFID Inventory Scanner, Portable Active Computing by China RFID DeveloperNegotiableMOQ: 1 Piece
-
Portable RFID Experts RFID Tablet Device With Various Programming LanguagesNegotiableMOQ: 1 Piece
-
Latest Handheld Battery Powered Rfid Reader With High QuanlityNegotiableMOQ: 10 Units
-
Directional Long Distance RFID Reader 2.4GHz Active RFID Reader With Factory PriceNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
DAILY RFID
Model Number
Texas Instruments RFID
100m Reading Range Texas Instruments RFID 2.4GHz Reader with Multiple Tags
Our website is
| Product Details: | |
| This 2.45GHz active RFID reader DL9230 is designed for inventory management. With its long read and write range of up to 100m, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of inventory tracking and management. | |
| Important Performance | |
| Working Frequency | ISM 2.4GHz ~ 2.5GHz |
| Identify Direction | Semi-omnidirectional |
| Antenna | 15dBi Built-in antenna |
| Polarization | Vertical Polarization |
| RF Power Range | -30 dBm ~ 0 dBm (set by software) |
| Receiving Sensitivity | -90dBm (set by software) |
| Modulation | GFSK |
| Read Performance | |
| Read Mode | 1) Automatic identifying within effective area (Auto mode) |
| 2) Reading after external trigger (Trigger mode) | |
| 3) Reading under software command (Master-slave mode) | |
| Anti-collision | Read up to 200 pieces of tags simultaneously |
| Read Distance | 0 ~ 100 m adjustable |
| Working Status Indication | Buzzer |
| Communication Performance | |
| Communication Speed | 1000kbps |
| Data Port Interface | |
| Port Available | TCP/IP (RJ45) / USB / RS232 / RS485 / Weigand26 / Weigand34 |
| Electric Parameter | |
| Power Supply | DC+9V ~ +15V, 1A |
| Exterior and Weight | |
| Dimension | 320 mm*200 mm*100 mm |
| Weight | 2.5kg |
| Accessories | 12V/1A adapter, Mounting bracket |
| Working Environment | |
| International Protection | IP65 |
| Working Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |

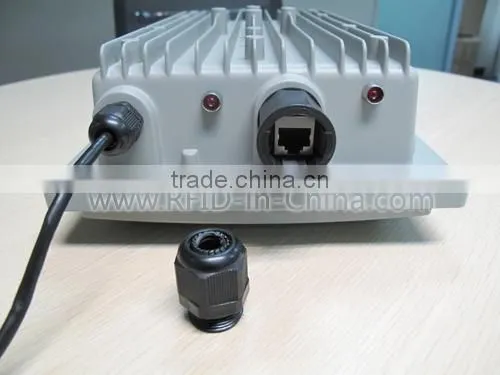

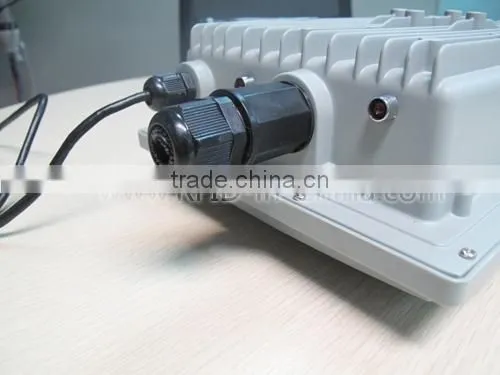

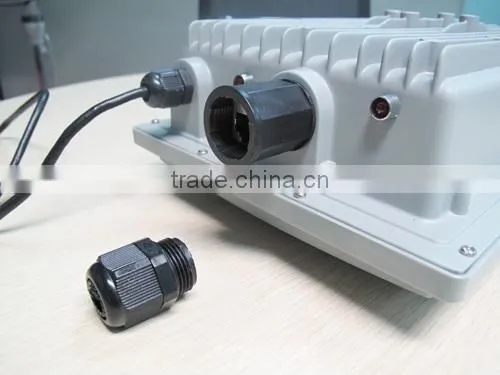

More Prictures for 100m Reading Range Texas Instruments RFID 2.4GHz Reader with Multiple Tags

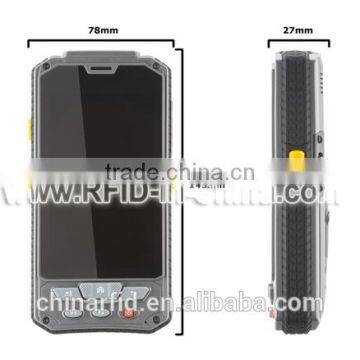

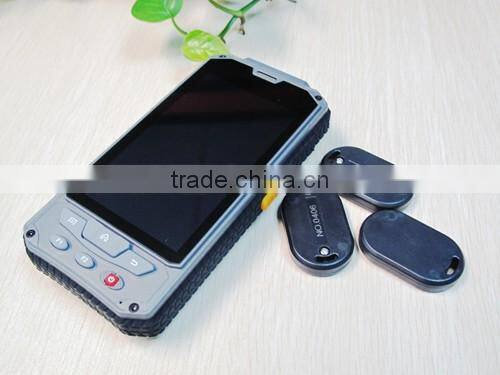

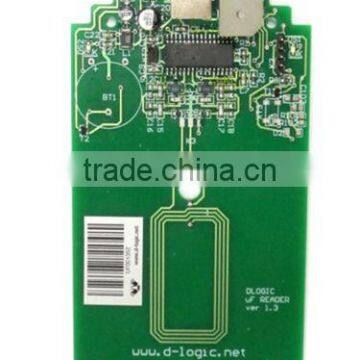

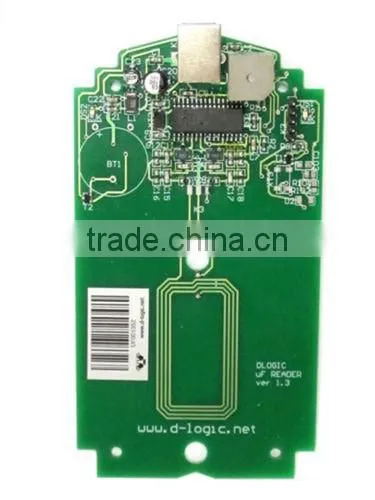

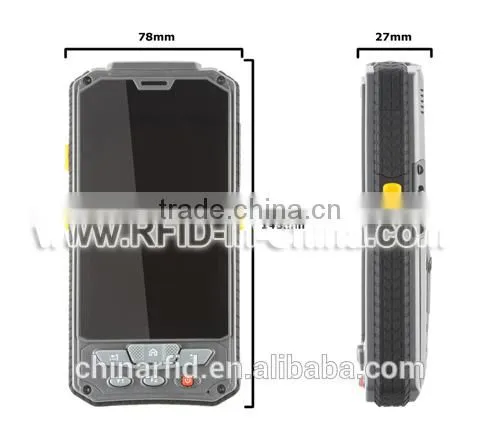

Other Prictures for Texas Instruments RFID
DAILY RFID is able to design and develop RFID readers and RFID tags in different sizes and shapes for your different requirements. For more info about RFID products, please visit our website: or email us, we will contact you as soon as possible.
