Specifications
reinforced angle bracket1.model no.:RAB002
2.material:pre-galv.steel sheet DX51D+Z275
3.surface finish:hot dip galvanized
our factory can produce more than 20 different style of timber connectors with more specifications, which are used for construction and linking.

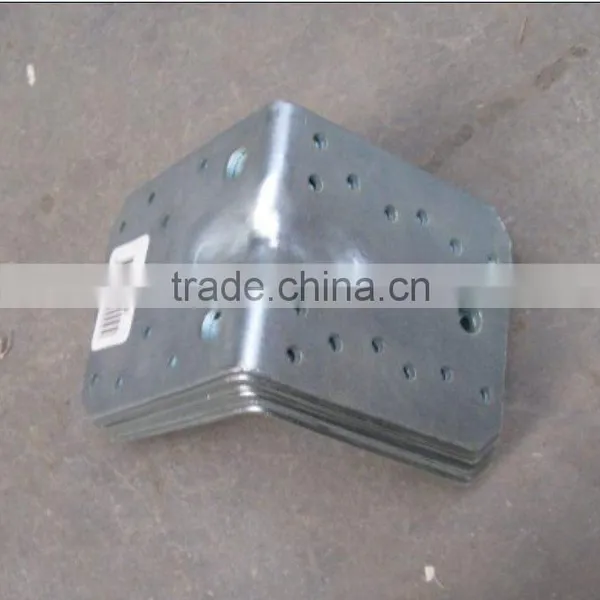

1. product: reinforced angle bracket
2. material: low carbon steel Q235
3. surface treatment: hot dip galvanized
4. specifications:
Reinforced Angle Bracket | ||||
Art Nr. | Dimentions(mm) | |||
A | B | C | D | |
MT-RB5050352 | 50 | 50 | 35 | 2 |
MT-RB7070552 | 70 | 70 | 55 | 2 |
MT-RB9090402 | 90 | 90 | 40 | 2 |
MT-RB9090652 | 90 | 90 | 65 | 2 |
MT-RB100100552 | 100 | 100 | 55 | 2 |
MT-RB100100902 | 100 | 100 | 90 | 2 |
MT-RB105105902 | 105 | 105 | 90 | 2 |
MT-RB120120902 | 120 | 120 | 90 | 2 |
MT-RB140140902 | 140 | 140 | 90 | 2 |
MT-RB5050352.5 | 50 | 50 | 35 | 2.5 |
MT-RB7070552.5 | 70 | 70 | 55 | 2.5 |
MT-RB9090402.5 | 90 | 90 | 40 | 2.5 |
MT-RB9090652.5 | 90 | 90 | 65 | 2.5 |
MT-RB100100552.5 | 100 | 100 | 55 | 2.5 |
MT-RB105105902.5 | 105 | 105 | 90 | 2.5 |
MT-RB120120902.5 | 120 | 120 | 90 | 2.5 |
MT-RB140140902.5 | 140 | 140 | 90 | 2.5 |
Material: pre-galv. Steel sheet DX51D+Z275 | ||||
Other sizes may be available upon request | ||||
other specifications also can be produced according to customer's request.
5. packing: with carton or other packing means if necessary in accordance with customer's demand.
6. delivery time: 30~35 days after receipt of deposit
7. payment term: L/C, T/T
8. contact us: +86-13127345690 +86-317-5236377
