ISO rockwool sandwich panel

Specifications

pu sandwich panel
1.Perfect thermal insulation:0.020W/mk
2.Perfect water proof and drainage:
3.Long life time





Wall Panel materials:

1.  Structure:

a) Upper and lower layer: uses Colored metal sheets

b) Middle: PU foam

2.  Width: 950mm; 980mm; 1150mm (we can make customized size)

3.  Thickness: 40mm, 50mm, 60mm, 75mm, 80mm, 100mm, 125mm, 150mm, 175mm,200mm, 225mm, 250mm

4. Length: depending on the design and conditions of transportation

5.  Thermal conductivity (R-value) : 0.0300.044W/mk



Specification:

1. R-value (w/mk):

T:      50mm         75mm       100mm    150mm      200mm

RV:    0.044          0.038          0.035       0.032         0.030

2. Sound insulation (R(dB))

T:      50mm        75mm       100mm   150mm

SV:      20             21.5            23          26

3. Water absorption:

 V/V, 24hr:,30%

4. Fire resistance (Oxygen index):

B3 Grade

5. Density:  140kg/m3

6.Steel sheet thickness:

0.42mm---0.5mm---0.63mm

7. Characteristics:

light weight and durable, easy installed, widely used for industry warehouse, workshp.

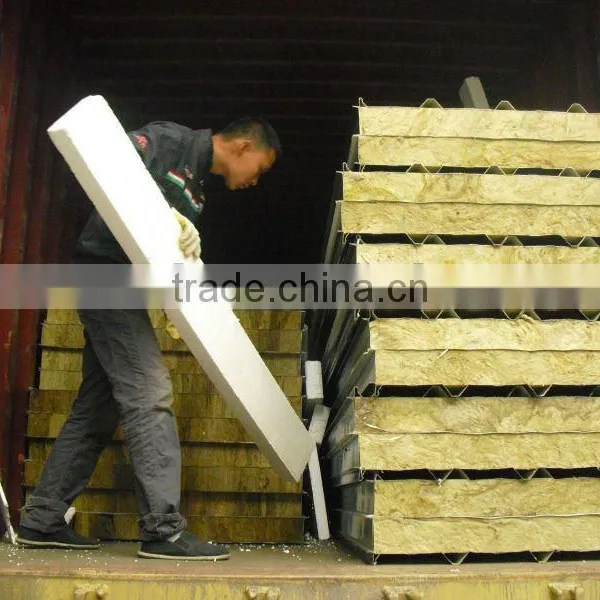

Pls see below photos:
