Nanjing Haisi Plastic Pelletizing Machine/Plastic Pelletizer
- 300 Set / Sets per Month
- Shanghai or Nanjing
- T/T
-
High qulity cheap price industrial plastic pelletizer machine supplier
-
Good Price Industrial Plastic Strip Cutting Machine Supllier
-
Plastic Strip Cutting Machine/Plastic Pellet Cutter
-
Plastic Pellet Cutting Machine | Plastic Granule Cutter
-
industrial plastic pelletizer/plastic pelletizing machine/Plastic Pellets Cutter
-
Online Thermoforming Sheet Plastic Soundproof Crusher Machine
Product Details
| Condition: | New | Type: | Recycling Granulator | Capacity: | 300-500kg/h |
| Place of Origin: | Jiangsu, China | Brand Name: | Haisi | Model Number: | LQ-300/500/900 |
| Material: | Other, stainless steel | Screw Design: | Double | Voltage: | 380 V |
| Power: | 0.75-7.5KW | Dimension(L*W*H): | 1530*750*1630 mm | Weight: | 380kg,640kg |
| Certification: | CE & ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Nanjing Haisi Plastic Pelletizing Machine
Application:
The Cantilever Pelletizer is designed to produce uniform pellets in wide varieties of size for most of any plastic material.
We have different types of pelletizer available in strand pelletizing line.
»Cantilever Pelletizer/Cutter/Granulator
»Planer Type Pelletizer/Cutter/Granulator
»Gantry Type Cutter/Pelletizer/Granulator Specially for Soft Rubber
»Imported Pelletizer/Cutter/Granulator
Parameters of the pelletizer/cutter/granulator
Machine Model | Motor Power | Speed Control | Number of Strand | Maximum Hauling Speed | Particle Size (mm) | Maximum Output (kg/h) | Rotating knife dia.×L (mm) | Rotating knife teeth | Rubber diameter L(mm) | Dimension (mm) (L×W×H) |
LQ-300 cantilever | 3~4 | Slip / Inverter | ≤14 | 96 | φ3×3 | ≤300 | φ120×100 |
32
| φ200×100 | 1270×750×1510 |
LQ-300 planer type | 3~4 | Slip / Inverter | ≤14 | 96 | φ3×3 | ≤300 | φ120×100 | 24 | φ100×150 | 790×710×1570 |
LQ-500 Pelletizer Configuration
Elements of the Planer Type Cutter/ Pelletizer/ Granulator
Fixed Knife and Moving Blade
Moving Blade
Iron bar
Parameter table of various pelletizer/cutter/granulator machine
Model | HS-LQ 60 | HS-LQ 300 | HS-LQ 500 | HS-LQ 900 |
Max output | 60kg/hr | 300kg/hr | 500kg/hr | 900kg/hr |
No. of strand | 6 | 15 | 625 | 42 |
Standard pellet | 3*3mm | 3*3mm | 3x3mm | 3x3mm |
Cutter dimension (L*W*H) | 120x60mm, 14 tooth | 120x100mm, 32 tooth | 200x200mm, 32 tooth | 200x300mm, 32 tooth |
Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
Motor power | 1.5kw | 3kw | 5.5kw | 11kw |
Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
Leading roller | PU | PU | PU | PU |
Driver control | Frequency inverter | |||
AC motor | 3 Phase / 380 V / 50 Hz | |||
Material of cutter | High-speed Steel / Hard Alloy | |||
Characteristics of the plastic pelletizer/cutter/granulator machine
High quality & reasonable price
Low noise
Easy operation
Available for various plastic raw material, like PP, PA, PBT , ABS, AS, PC, POM, PPS, PET, etc.
Produced as customer required
Motor can be controlled by Frequent Inverter control to meet customer productivity demand.

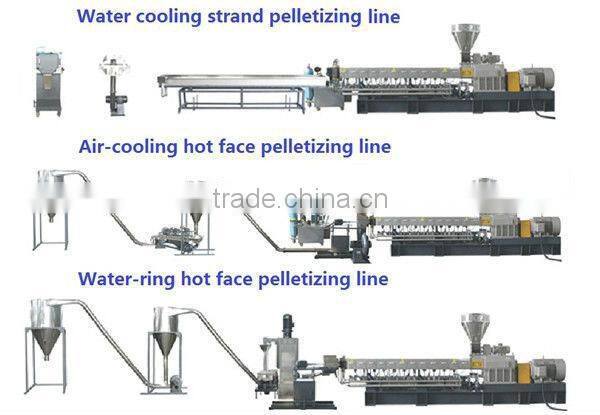

Auxiliary Facilities in water-cooling strand pelletizing line
Nanjing Haisi is a professional manufacture of high quality pelletizing extruders for coloring/ dyeing and master batch production, as well as plastic modification and compounding ,plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption.
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
