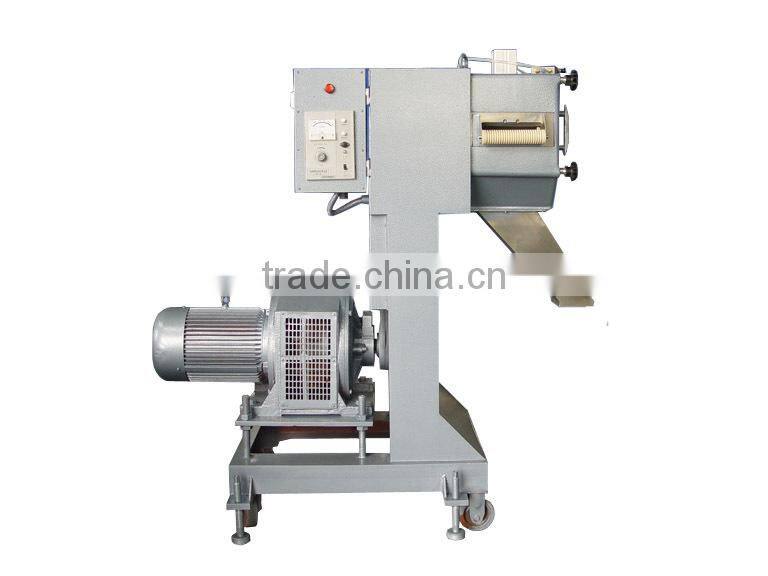

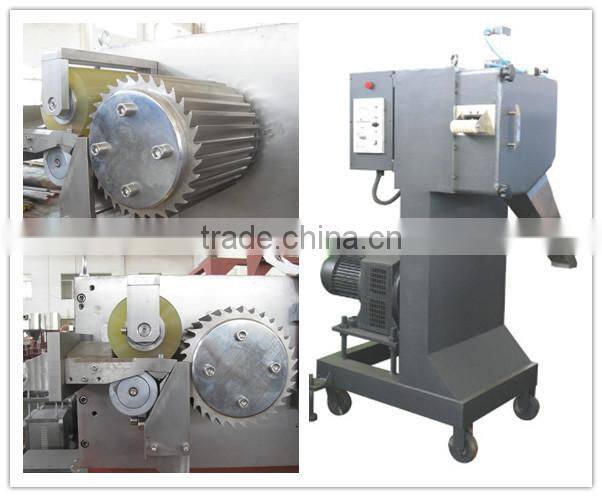

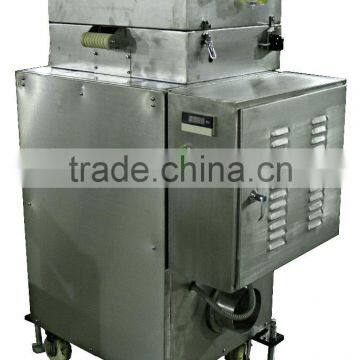

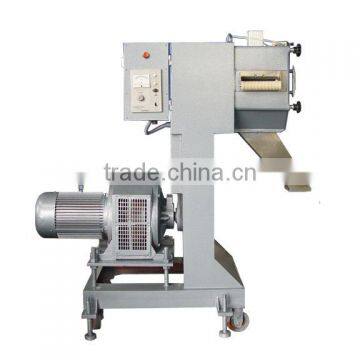

Haisi Hot Sale Mixer Plastic Granulator Equipment
The Technical Data of Pelletizer Machine :
Model | HS-LQ 60 | HS-LQ 300 | HS-LQ 500 | HS-LQ 900 |
Max output | ≤ 60kg/hr | ≤ 300kg/hr | ≤ 500kg/hr | ≤ 900kg/hr |
Motor power | 1.1~1.5kw | 3~4 kw | 5.5~7.5 kw | 11kw |
No. of strand | 6 | 15 | 25 | 42 |
Standard pellet | 3*3mm | 3*3mm | 3x3mm | 3x3mm |

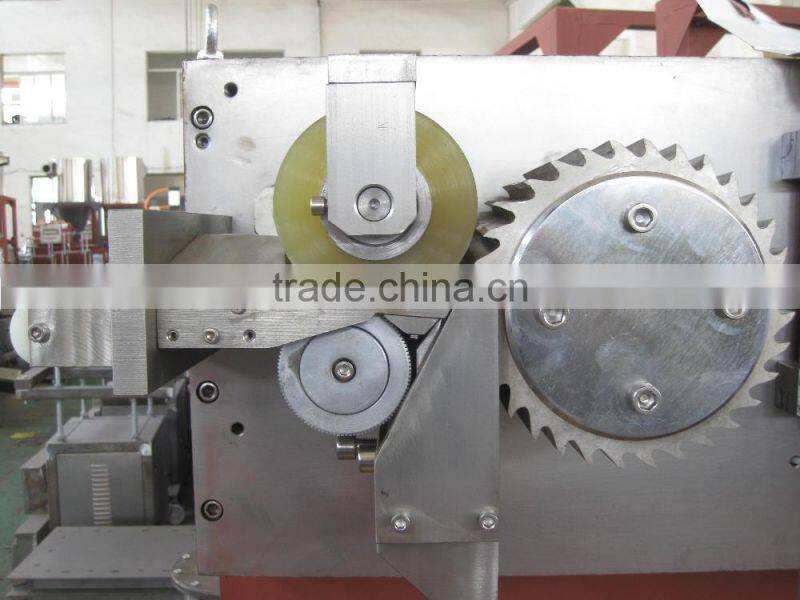

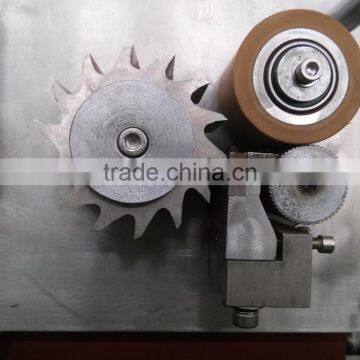

Rotating cutter knife dimension (L*W*H) | 120x96mm | 200x100mm | 200x200mm | 200x300mm |
Cutter tooth No. | 14 tooth | 32 tooth | 32 tooth | 32 tooth |
Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
Leading roller | PU | PU | PU | PU |
Sizer | 960×530×1330mm | 1270×750×1510mm | 1530×750×1630 mm | 1660×750×1730 mm |
Driver control | Sliding type inverter | |||
AC motor | 3 Phase / 380 V / 50 Hz | |||
Model | LR125 | LR 240 |
Cutting Rotor(mm) | Φ18, 125 | Φ80, 240 |
Strand speed (m/min) | 83 | 83 |
AC Motor | 3 Phase /380V/ 50Hz | |
Drive Motor (KW) | 5.5/7.5 | 7.5/11 |
Driver Control | Frequency Inverter/ Slip Differential Controller | |
Max of Strand | 30 | 60 |
Pellet Size | 3*3mm | 3*3mm |
Material of Cutter | High speed steel/ Hard Alloy | |
Overall dimension (L*W*H) | 1100*1200*1600mm | |
Gross Weigh (kg) | 460 | 490 |
More Details :

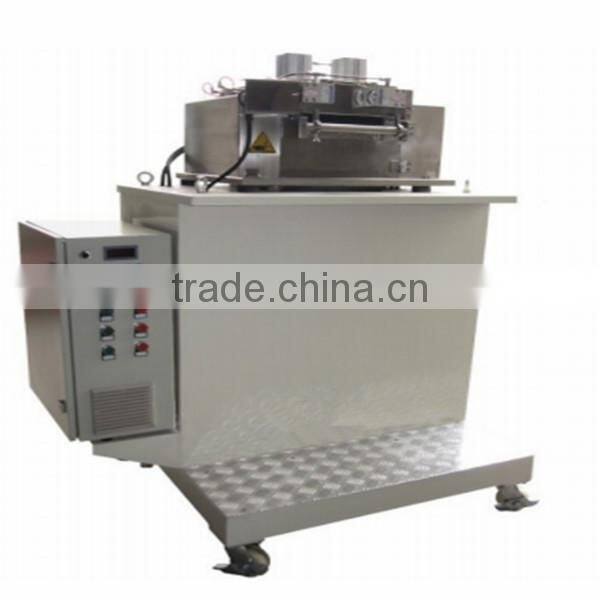

Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing,
water-ring pelletizing, under water pelleting, etc.
1.Quality guaranteed
2.Support factory visit
3.Technology supports
4.We are the manufactuer
Welcome to Nanjing Haisi Extrusion Equipment CO., Ltd.
Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and sales service and has specialized in extruder industry for ten years. We are now devoted to highly active single / twin screw compounding extruders and interrelated techniques. According to the material system and technical process, we have achieved the optimization of structural design for mixing equipment and combine electromechanical and technique systems together, which show our many years' experience and comprehensive techniques.
Our products are single screw extruders, co-rotating twin-screw compounding extruders,two-stage compounding extruders, auxiliary equipment, etc.
Believe yourself, and cooperating with HAISI is your wise decision; believe us ,since "high quality and service" is our promise forever!
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong
team which has substantial experience in R&D, manufacture, technique and sales service and has
specialized in extruder industry for ten years,leading screw barrel manufacturer in China.
2. Q:What's Haisi capacity?
R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200
models of extruders and spare parts.
3. Q:What's the delivery time?
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
for customized, normally 3~4weeks.
4.Q:How about Haisi screw extruder quality and price?
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:what's the life time and guarantee buy from Haisi screw extruder?
R:3~5years life time for nitriding ones and bimtallic ones will be longer
One year min. Guarantee.
6.Q:Where is Haisi factory and how to reach there?
R:At Lishui,Nanjing City,Jiangsu Province. It's near Shanghai City,If you want to visit us,we can pick you up

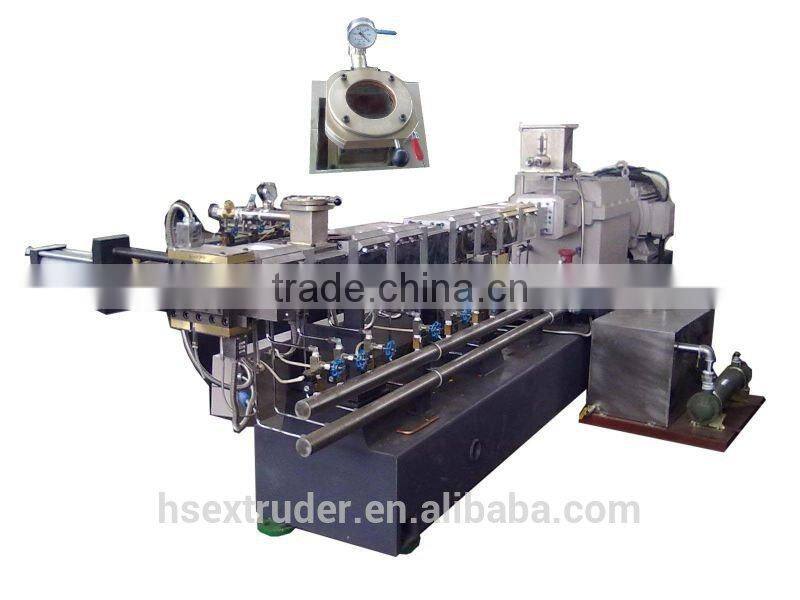

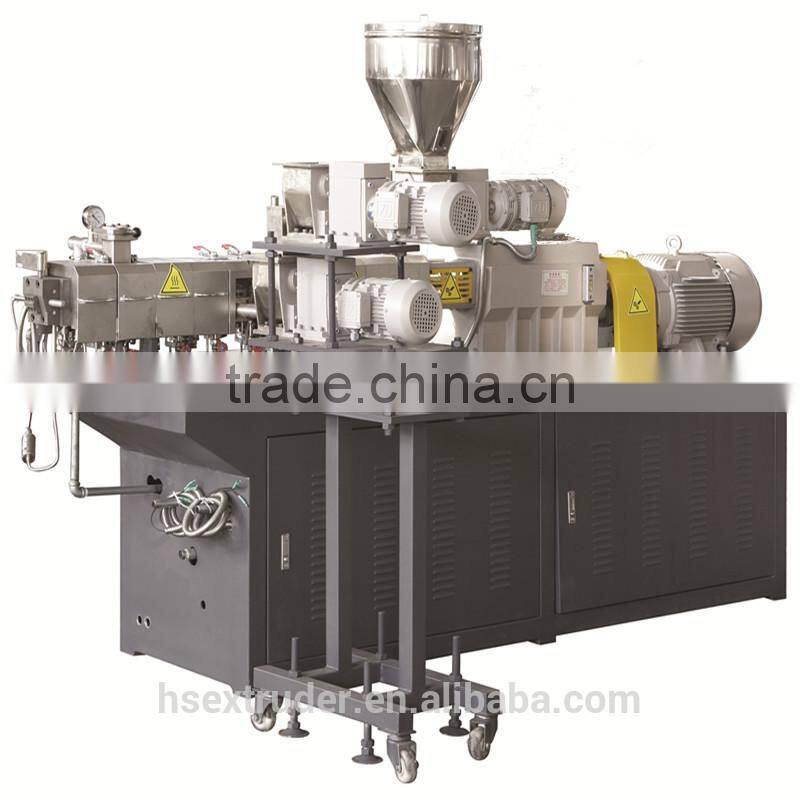

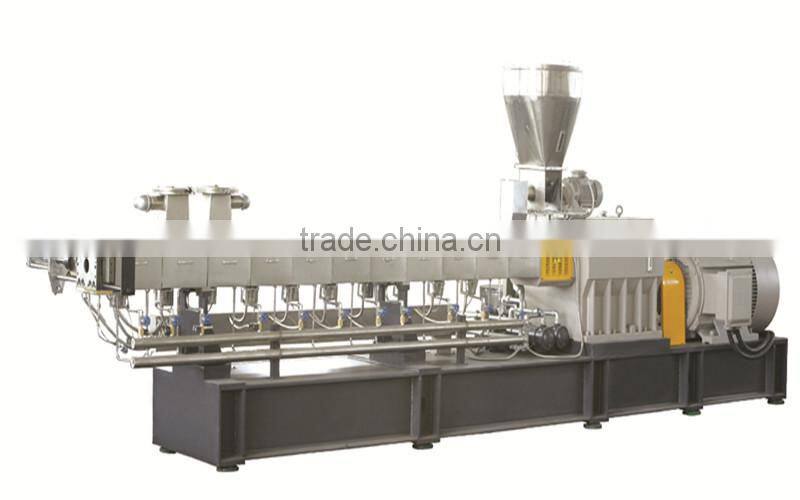

TSE—30 TSE—65
TSE—75 TSE—95
