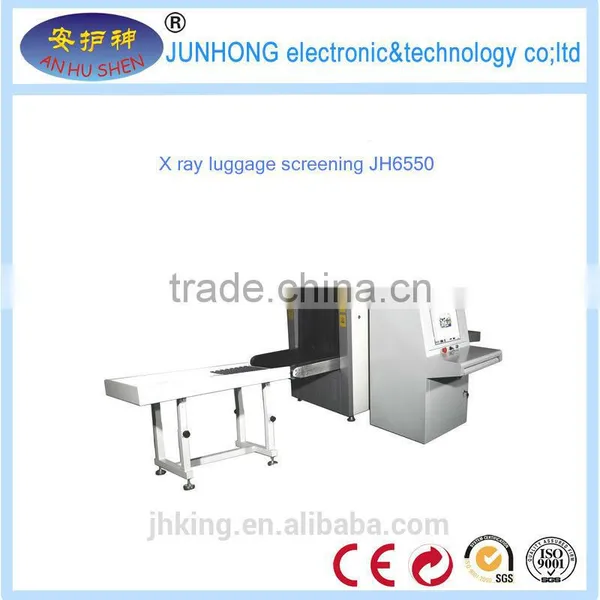

Checked Airport,hotel,station and Embassy Security X-ray Machine Security Scanner JH-6550US$ 13,000 - 14,000MOQ: 1 Set
-
Checked Airport,hotel,station and Embassy Security x Ray Machines JH-6550US$ 13,000 - 14,000MOQ: 1 Set
-
160KV Generator X-ray Baggage Scanning MachineUS$ 13,000 - 14,000MOQ: 1 Set
Specifications
X-RAY luggage scanner JH5030C1.Alarm by sounds & light
2.Simple operation by mouse
3.Turn off by a key
FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Simple operation by mouse:Without keyboard and work table, control by mouse, save space.
5. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
6. Eagle-eye:Could be expediently observing enlargement area.
7. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 650(W)×500(H)mm
Conveyor Speed: 0.22 m/s 1
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3µGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
IMAGE PERFORMANCE SYSTEM:
X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
COLOR QUALITY: 24 BIT REAL COLORS
EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT
HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
IMAGE RESTORATION:RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
MULTI-ENERGY FUNCTION:
MULTI-ENERGY COLOR:DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN
HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC
AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.
AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION
OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <65DB
