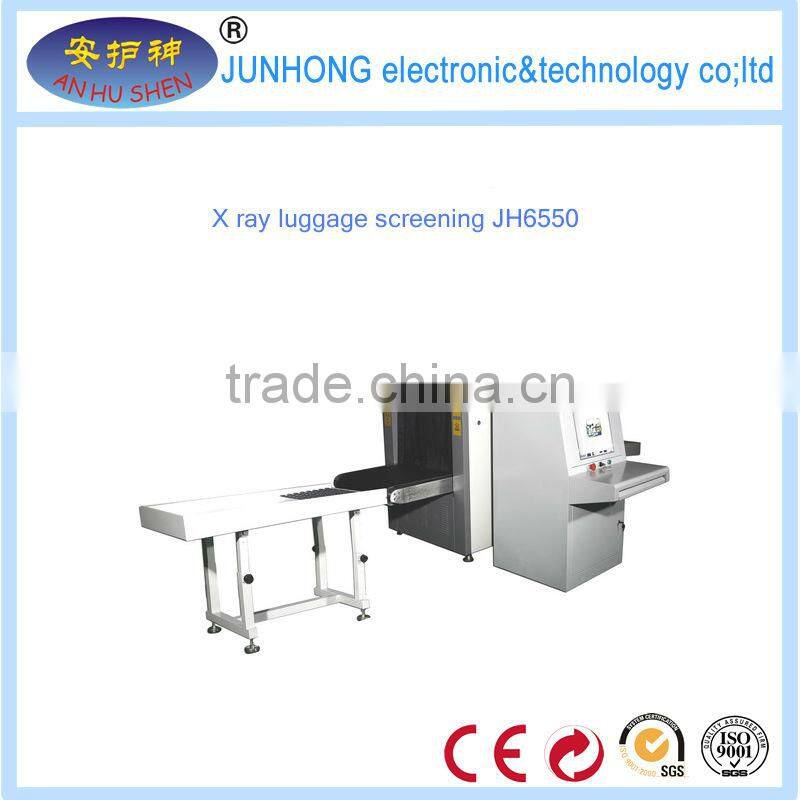

Checked Airport,hotel,station and Embassy Security X-ray Machine Security Scanner JH-6550

Checked Airport,hotel,station and Embassy Security X-ray Machine Security Scanner JH-6550 thumbnail-1
Checked Airport,hotel,station and Embassy Security X-ray Machine Security Scanner JH-6550 photo-1
US$ 13,000 - 14,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Properties:
Other, Luggage safety detector
Brand Name:
AN HU SHEN
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Junhong Electronic & Technology (Dongguan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Other, Luggage safety detector
Brand Name AN HU SHEN
Place of Origin Guangdong, China

Specifications

1.X-Ray Scanner
2.Alarm by sounds&light
3.Safety ray
4.Turn off by a key control
5.Estimate malfunction by self

Checked airport,hotel,station and embassy security x-ray machine security scanner JH-6550





Feature:

1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.



2. Network interfaceCould be connect local area network and support multi-terminal check baggage at same times



3. Safety rayTransmit ray under automatic control, avoids the miss.



4. Simple operation by mouseWithout keyboard and work table, control by mouse, save space.



5. Turn off by a key controlTurn off the machine only need one steprevolves the key.



The equipment automatic security close-down, does not need complex many steps, is simpler.



6. Eagle-eyeCould be expediently observing enlargement area.



7. Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.

 Checked airport,hotel,station and embassy security x-ray machine security scanner JH-6550





TECHNICAL DATA:



Tunnel Size:                        650W×500Hmm



Conveyor Speed:                  0.22 m/s 1



Conveyor Max Load:              100 kg



Single inspection dosage:       < 1.5µGy



Wire Resolution:                  0.1mm metal line



Steel Penetration:                30MM armor plate



Film Safety:                        For ISO 1600



Maximum leakage radiation:      <0.3µGY/H







X-RAY GENERATOR:



Orientation:                                  Vertically Upward



Tube Current:                                0.4~1.2MAadjustable



Anode Voltage:                              100~160 KV(adjustable



Angle:                                        80°



Generator cooling/working periods:     Sealed oil bath with forced air/100







IMAGE PERFORMANCE SYSTEM:



X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT







MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY







COLOR QUALITY: 24 BIT REAL COLORS







EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT







SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT







HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY







LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY







MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT







BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE







IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM







IMAGE RESTORATION:RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR







IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS







MULTI-ENERGY FUNCTION:



MULTIENERGY COLOR:DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN







HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC







AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.







AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION







OPERATING ENVIRONMENT:



Storage Temperature:             -20ºC to 60ºC



Operating Temperature:           0ºC to 45ºC



Relative Humidity:               20 to 95% non-condensing



System Power:                  220 VAC (±10%) 50±3HZ



Power wastage                1.0 KW (Max)



Noise                        <65DB
