X-RAY Luggage Scanning Machine/ Airport x Ray Luggage Scanner

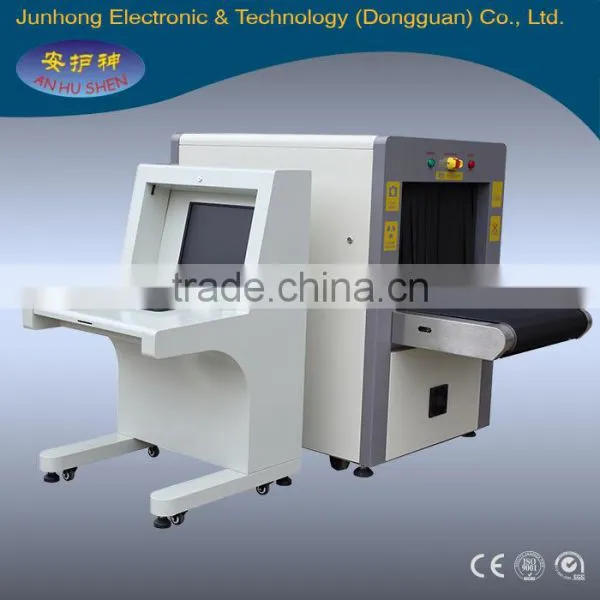

X-RAY luggage scanning machine/ airport x ray luggage scanner JH-6550

FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Simple operation by mouse:Without keyboard and work table, control by mouse, save space.
5. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
6. Eagle-eye:Could be expediently observing enlargement area.
7. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA:
Tunnel Size:                        650(W)×500(H)mm
Conveyor Speed:               0.22 m/s 1
Conveyor Max Load:         100 kg
Single inspection dosage:     < 1.5µGy
Wire Resolution:                  0.1mm metal line
Steel Penetration:                30MM armor plate
Film Safety:                         For ISO 1600
Maximum leakage radiation: <0.3µGY/H

X-RAY GENERATOR:
Orientation:             Vertically Upward
Tube Current:          0.4~1.2MA(adjustable)
Anode Voltage:       100~160 KV(adjustable)
Angle:                     80°
Generator cooling/working periods:     Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:
X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17 INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

IMAGE RESTORATION:RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

MULTI-ENERGY FUNCTION:
MULTI-ENERGY COLOR:DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN

HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC

AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.

AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

OPERATING ENVIRONMENT:
Storage Temperature:        -20ºC to 60ºC
Operating Temperature:     0ºC to 45ºC
Relative Humidity:              20 to 95% non-condensing
System Power:                  220 VAC (±10%) 50±3HZ
Power wastage:                 1.0 KW (Max)
Noise:                                <65DB
