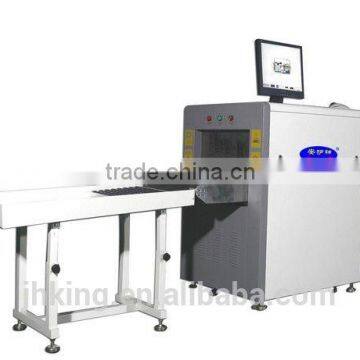

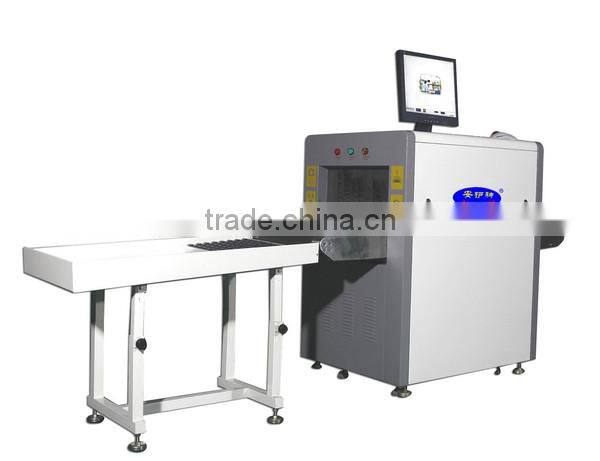

X-RAY Luggage Scanner Machine Inspection Systems

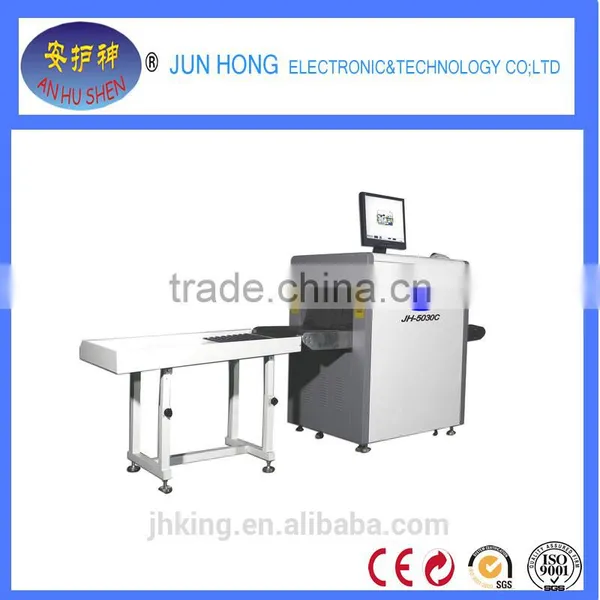

X-RAY luggage scanner JH5030C

TECHNICAL DATA:

Tunnel Size:                       500(W)×300(H)mm

Conveyor Speed:                 0.22m/s

Conveyor Max Load:             20 kg

Single inspection dosage:'      < 1.5µGy

Wire Resolution:                 0.1mm metal line

Steel Penetration:               32MM armor plate

Film Safety:                       For ISO 1600

Maximum leakage radiation:     <0.3µGY/H

X-RAY GENERATOR:

Orientation:                                  Vertically Upward

Tube Current:                                0.4~1.2MA(adjustable)

Anode Voltage:                              100~160 KV(adjustable)

Angle:                                        80°

Generator cooling/working periods:     Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

OPERATING ENVIRONMENT:

Storage Temperature       -20ºC to 60ºC

Operating Temperature        0ºC to 45ºC

Relative Humidity            20 to 95% non-condensing

System Power        220 VAC (±10%) 50±3HZ

Power wastage      1.0 KW (Max)

Noise                  <65DB
