High Sensitivity Walk Through Door Frame Metal Detector

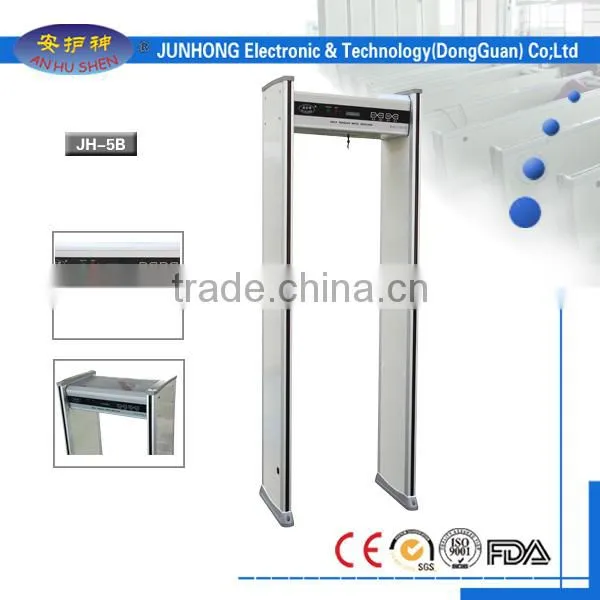

JH-5B (LCD) Walk Through Metal Detector (18 zone)

Professional choice for metal detection
JH series walk through metal detector is a CE approved concealed weapons detector. This walk-through metal detector which uses advanced magnetic technology to accurately pinpoint the location, size, and number of concealed weapons, such as knives and guns. Personal artifacts such as coins, keys or belt buckles will not set off the alarm. The walk-through metal detectors a true multi-zone metal detector with new advanced features. It offers superior performance for demanding high security applications.

Reasons to choose JH walk-through metal detector
1. Deters crime
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption

This walk-through metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu, where the prohibited articles need to be checked for safety.

Function and Character

(1)       All weather water proof, IP55 Standard . Durable with Alloy & PVC Construction.

(2)       LCD Screen Display   LCD Screen Display with two version of Chinese and English menu. Easy to view and operation.

(3) Alarm     Audible tone and volume adjustable with low , middle and high . Bright LED Visual alarm

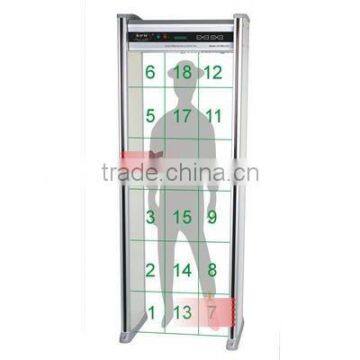

(4)    18 independent detection zones.

18 independent distributing search coverage and acousto-optic alarm when target is found. LED gatepost lights directly displays the alarming area which can exactly indicate the target from left , middle and right area.

(5) 255 sensitivity level Adjustable Flexibility   We can reach the security requirements by adjusting the flexibility. There are 255 flexibility degrees in each detective area.

(6) Complex circuit, infrared installation and computer automatic identification decrease the mistakes and missing dramatically. It can automatically show the alarm frequency and numbers of passed people.

(7)  Password protection setting   You can change the system, flexibility and other setting only after typing in the pass word correctly and only authorized person allowed to change the setting can't change the settings.

(8)  Adoption of weak magnetic field launching technology will not cause harm to heart pacemaker wearer, pregnant women, disks and videos.

(9)   Two or more gates can work simultaneously

(10). Network connection,RS485 port can connect Max32 units gates. It’s easy to control and adjust the progress.

• Warranty    Limited 12 months, parts and labor
• Dimensions
• Outer frame   2.2 X0.82 X0.5m ( H X W X Depth)
• Inner frame   2.0X0.7X0.5m  (H X W X Depth)
• Electric current   90-240vAC,50/60 Hz  Power   35W
• Net Weight   about 65kg
• working environment    -30~55,
•  humidity <=95%RH Standard  GB15210-2003
• Freely
  Remote control
  ABS plastic base for protection
• Network connection
