Portable Hand Held Explosives & Drug Detection Equipment

Specifications

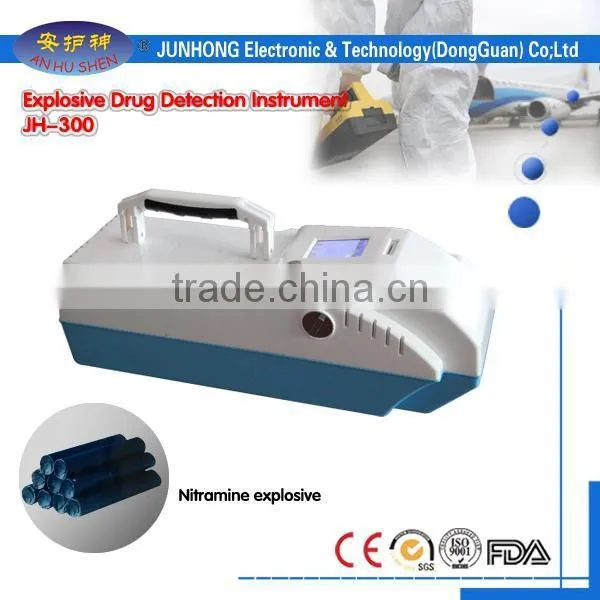

JH-300 Portable Explosives & Drugs Detector

Features:

1-The world first Non-radioactive source of vacuum ultraviolet photoionization, safe and convenient, accurate in analyzing the components of explosives and narcotics.

2-Unique in the world of black powder Nanogram level detection performance,Can detect include fireworks, civil homemade explosives and other dangerous items.

3-Detection of speed faster than similar products, the results within two seconds.

4-Dual mode using positive and negative, can detect explosives and narcotics.

5-Open data, sample libraries Information Section Anytime Upgrade.

6-One key mode detection, easy operation.

7-Equipped with a 2.8-inch TFT color touch screen.

8-The instrument can display the parameter values directly operating conditions, to determine whether Adjusted according to the parameters under which the instrument to normal operation.

9-Storage capabilities have a good data transfer and control functions.

10-The system has automatic cleaning function, can purify the internal instrumentation system for cleaning.

Applications:

-Security in airports, stations and other important places.

-National Security

-Public Safety

Technical indicators:

1-      Applying technology: High resolution photoionization ion mobility spectrometry.

2-Explosives can be detected: A variety of military, civilian and homemade explosives, such as black powder, ammonium nitrate, TNT, PETN, RDX, nitroglycerin, HMX, DNT, C4, semtex, etc.

3-The explosives & drugs can be detected: Hydrochloric acid, cocaine, heroin hydrochloride, THC, methamphetamine, ketamine hydrochloride, morphine hydrochloride, etc., and add new samples needed.

4-Sampling method: trace particles adsorbed wipe sampling and test strips

5-Database: Open, you can update at any time.

6-Alarm modes: voice with screen.

7-Sensitivity: nanogram level.

8-Analysis time≤2S

9-Warm-up time:≤16.5 minutes

10-False alarm rate:≤1%

11-The detection rate≥99%

12-Display:2.8-inch TFT color screen.

13-Power Adapter: imput 220V/AC 50-60HZ,output 16V/DC.

14- Power supply: 220V AC 50-60HZ Lithium battery.

15-Work Environment:-10°C-55°C,Relative Humidity 99%.

16-Battery parameters: Lithium batteries 16.8V/13AH,

Continuous power supply is not less than 2 hours.
