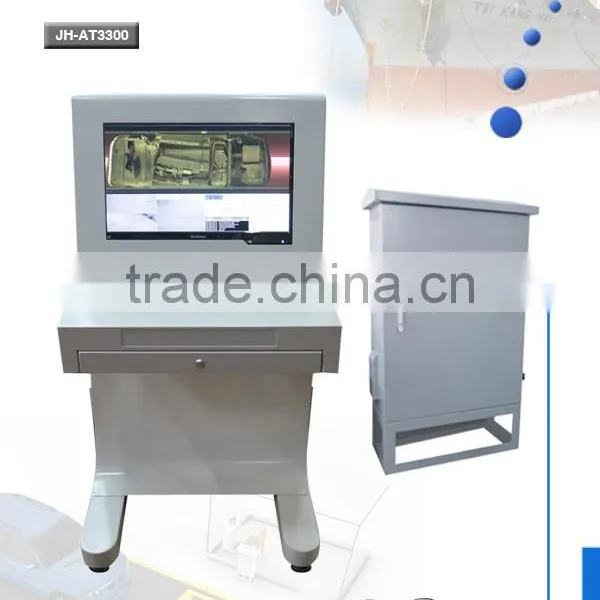

Under Vehicle security Scanner, under vehicle search system

Under Vehicle security Scanner

Professional quality Eliminating hidden dangers

 Five major advantages:

 Adopting digital linear array scanning cameras, have very high picture resolution and clarity.

 IP68High protection grade, Antiseismic and pressure, can be used on any climate environment.

Multi-language user interface design.

 Strong expansion capability, Can easily implement all kinds of linkage control system.(For example: Anti collision system, barrier etc)

Support multiple devices networked control functions.

Product introduction:

Fixed under vehicle safety inspection system are mainly detecting the bottom of various vehicle,Can quickly and accurately identify the hiding contraband in the vehicle and illegal immigration, smuggling people, faster and more accurate than the traditional under car inspection mirror, Greatly improving the speed and accuracy of vehicle safety inspection, to reduce human resources investment.

Application area:

1,Airports, prisons, customs and other government departments, And large public car park entrances and out of the vehicle used to check whether there is contraband.

2,large-scale activity, the entrance and exit of Exhibition for vehicle safety inspection.

3,Security checks for security, explosion, military vehicles at the bottom.

Product Feature:

l      Adopting digital linear array scanning cameras, have very high picture resolution and clarity.

l      Under Car complete imaging, no any missing, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.

l      IP68High protection grade, Antiseismic and pressure can be used on any climate environment.

l      Field preparation of inspection processes can meet needs of a variety of field.

l      Multiple scene image monitor, video recording.

l      Multi-language user interface design.

l      Support image identification, or RFID technology for vehicle identification.

l       Strong expansion capability, Can easily implement all kinds of linkage control system.(For example: Anti collision system, barrier etc)

l       Support multiple devices networked control functions

Technical Parameters:

    Vertical resolution of the image:2048pixel.

    Perspective check width: Not less than 4.0 meters

    Car speed:1~65km/h;

    Effective angular field: No less than170°;

    Auxiliary lighting:100W

    load capacity: More than 30T;

    Waterproofing grade:IP68 Meet the all-weather work;

    Communication interface:RS232/RS422

    Storage temperature:-40°~+75°

    Working Temperature:-10°~+60°

    Working voltage:110~240V AC,50~60HZ
