Help Center6-400mesh Brass Wire Mesh
Related Products
Specifications
copper wire meshMaterial:brass, pure copper, phospor bronze
Mesh:6mesh to 400mesh
Manufacturer
ISO9001&CE Certificated

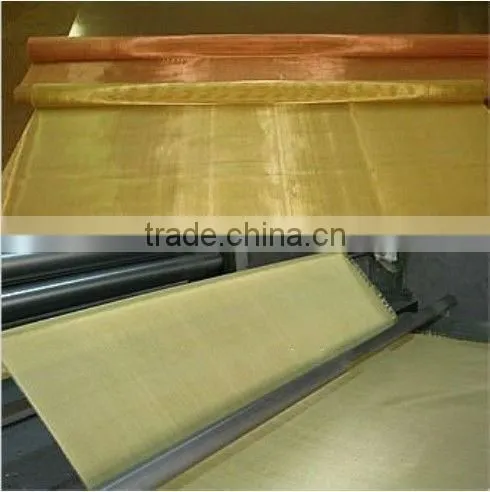

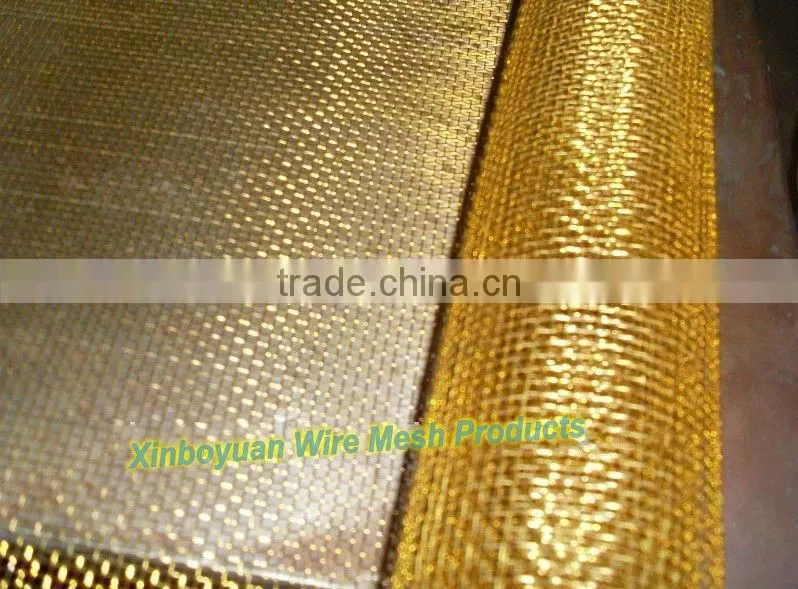

Copper Wire Mesh / Brass Wire Mesh
Material: copper wire / brass wire
Mesh count: 6mesh/inch to 200mesh/inch
Diameter:0.051mm to 0.711mm
Opening: 0.076mm to 3.522mm
Weaving methods: Plain weave, twill weave or Dutch weave
Width:0.5m to 3.0m, custom require available at request
Length: Standard roll length is 30m,30.5m, custom require available at request
Packing: in waterproof paper, PVC bag, wooden pallet. Custom packing available at request
Certificate: ISO9001:2000
Brass : As the alloy of copper and zinc, Brass Wire Mesh has excellent abrasion resistance ,corrosion-resisting, lower electric conductivity as compared with copper.
Copper: Copper wire offers excellent electrical and thermal conductivity. It is non-magnetic, anti-sparking and is resistant to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.
Phosphor bronze is an alloy of Tin, phosphorus and Copper. It is corrosion-resisting, wear-resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.
Uses: Separation and sifting kinds pellet ,grain, porcelain earth and glass, chinaware printing, filter liquid, etc.
Brass, copper and phosphor bronze wire mesh | ||
mesh |
Wire Dia. (MM) |
Opening(mm) |
6mesh |
0.711 |
3.522 |
8mesh |
0.610 |
2.565 |
10mesh |
0.508 |
2.032 |
12mesh |
0.457 |
1.660 |
14mesh |
0.417 |
1.397 |
16mesh |
0.345 |
1.243 |
18mesh |
0.315 |
1.096 |
20mesh |
0.315 |
0.955 |
22mesh |
0.315 |
0.840 |
24mesh |
0.315 |
0.743 |
26mesh |
0.295 |
0.682 |
28mesh |
0.295 |
0.612 |
30mesh |
0.247 |
0.573 |
32mesh |
0.254 |
0.540 |
34mesh |
0.234 |
0.513 |
36mesh |
0.234 |
0.472 |
38mesh |
0.213 |
0.455 |
40mesh |
0.193 |
0.442 |
42mesh |
0.193 |
0.412 |
44mesh |
0.173 |
0.404 |
46mesh |
0.173 |
0.379 |
48mesh |
0.173 |
0.356 |
50mesh |
0.173 |
0.335 |
60X50mesh |
0.193 |
- |
60X50mesh |
0.173 |
- |
60mesh |
0.173 |
0.250 |
70mesh |
0.132 |
0.231 |
80mesh |
0.122 |
0.196 |
90mesh |
0.112 |
0.170 |
100mesh |
0.012 |
0.152 |
120X108mesh |
0.091 |
- |
120mesh |
0.081 |
0.131 |
140mesh |
0.061 |
0.120 |
150mesh |
0.061 |
0.108 |
160mesh |
0.061 |
0.098 |
180mesh |
0.051 |
0.090 |
200mesh |
0.051 |
0.076 |
Technical Note: | ||
