Help CenterHot Dipped Galvanized Welded Wire Mesh
Related Products
Specifications
Hot dipped galvanzied welded wire meshCE&ISO9001
Manufacturer
Mesh opeing: 1/2"-4"
Wire diameter:0.5-3mm
Hot Dipped Galvanized Welded Wire Mesh
(CE&ISO9001:2008&SGS)
Hot Dipped Galvanized Welded Wire Mesh
Welded wire mesh is made of selected quality iron wires through high-precision processing. The end product is level and flat, sturdy structure, and even strength throughout, which is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc.
1. Welded Wire Mesh Materials:
galvanized iron wire, stainless steel wire, PVC coated wire
2. Welded Wire Mesh Characters:
strong welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being
exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
3. Welded Wire Mesh Usage:
They are widely used in industry, agriculture, construction, transport and mining .Such as machine
protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage,
egg basket, foodstuffs basket, etc.
4. Surface treatment of welded wire mesh:
Hot dipped galvanized after welding
Hot dipped galvanized before welding
Electric galvnaized before welding
Electric galvanized after welding
PVC Coated after welding
5. Welded Wire Mesh Specification:
Specification List of Welded Wire Mesh | ||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
Technical Note:
| ||
Galvanized welded Mesh fenceing | ||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note: | ||
PVC Coated Welded Mesh | ||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note: | ||

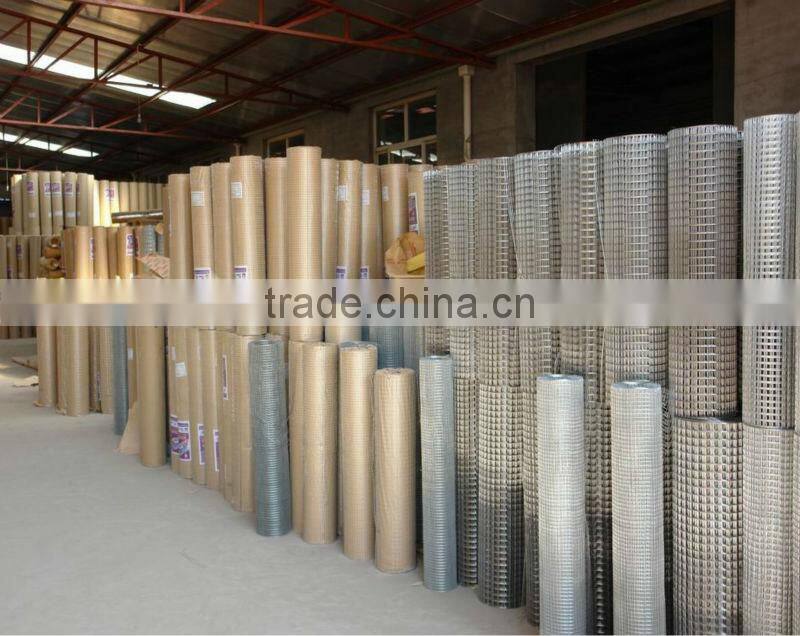

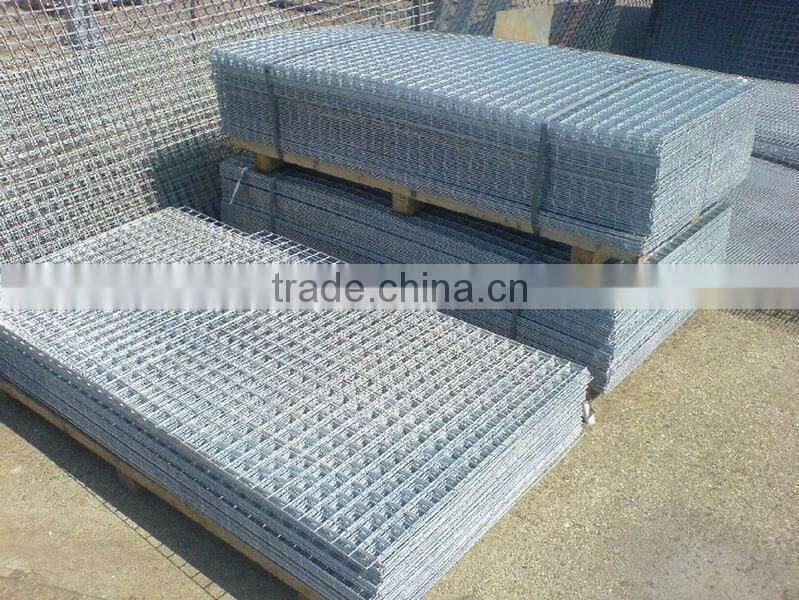

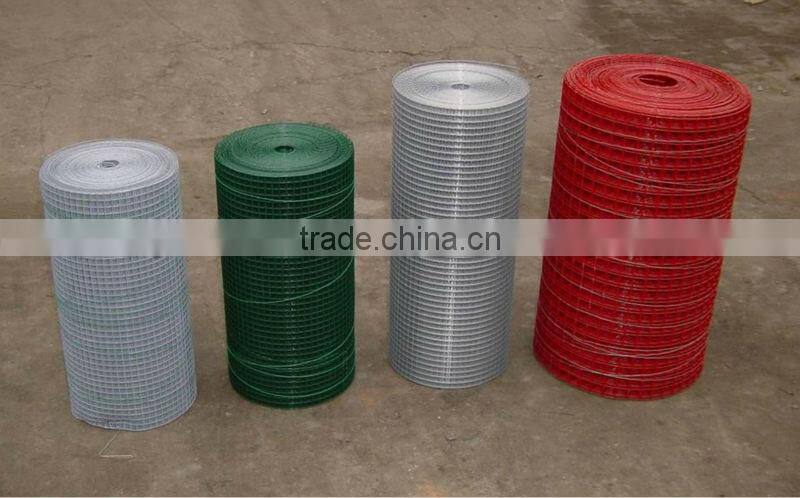

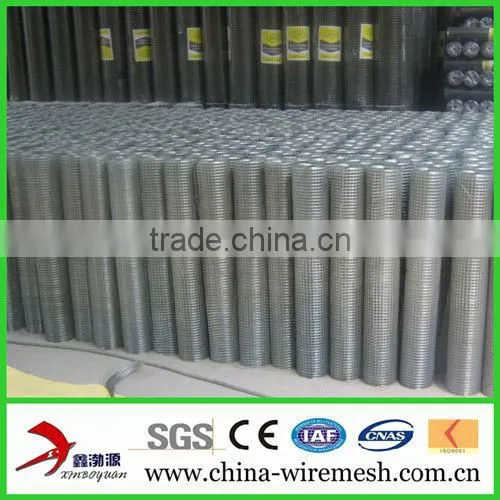

6. Welded Wire Mesh Pictures:
Welcome to visit our website. If you have any questions, please feel free to contact us as follow:
