2017 hot selling China manufacturer expanded metal 32*5 hot dipped galvanized steel grating standard size

2017 hot selling China manufacturer expanded metal  32*5  hot dipped galvanized steel grating standard size

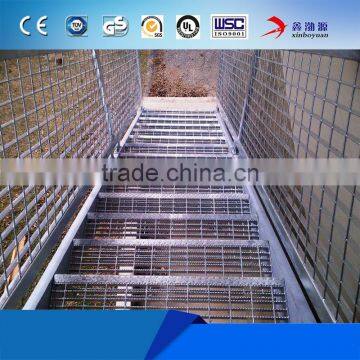

Galvanized Steel Grating is made by Carbon or mild steel of certain sizes through the processing of grooving, cutting, press-welding, and galvalizing. Gratings can be actually made from copper, aluminum and other materials. However, galvanized steel grating is the widely used for its economical cost and excellent propetries

Advantages of the Steel Bar Grating

 Allows the passage of light

Allows air circulation

Prevents blockages or accumulation of trash, dust or liquid

Provides lightness and high load resistance

Due to the increasing friction that provides to the shoe sole, increases safety in working areas

Product description

1)Bearing bar (Load Bar)specifications(mm):

The specification of plain type is 20*3 to 100*10

2)Bearing Bar pitch (center to center):

12.5,15,25,30,30.16,32.5,34,40,41,41.25,45,50,60,60.32,80,100mm etc,also be according to client’s requirement and 30,40,60mm are recommended.

3)Cross Bar pitch(center to center):

38,50,76,100,101.6mm etc,also be according to client’s requirement and 50,100mm are recommended ,American standard is available.

4) Material:

Mild Steel (Low Carbon Steel) or Stainless Steel

5)Surface treatment:

Untreated,Painting or Hot dipped galvanzied

6)Steel grating standards:

A)China:YB/T4001

B)USA:ANSI/NAAMM(MBG531)

C)UK:BS4592

D)Australia:AS1657

E)Japan:JJS

Let's talk online

Process:Our Steel Bar Grating is manufactured through the forged welding process, which consists in welding steel cross rods to perpendicular and equidistant bearing bars. This is achieved through high current and high mechanical pressure discharges, fusing the molecular elements of both components without placing filler material, as it occurs in the arc welding process. The forged welding process guarantees an homogeneous product of high quality and resistance.

We manufacture our Steel Bar Grating based on the most strict quality standards.

Application

Commercial and industrial flooring

Mezzanines

Catwalks

Platforms

Ramps

Subway and sidewalk grating
