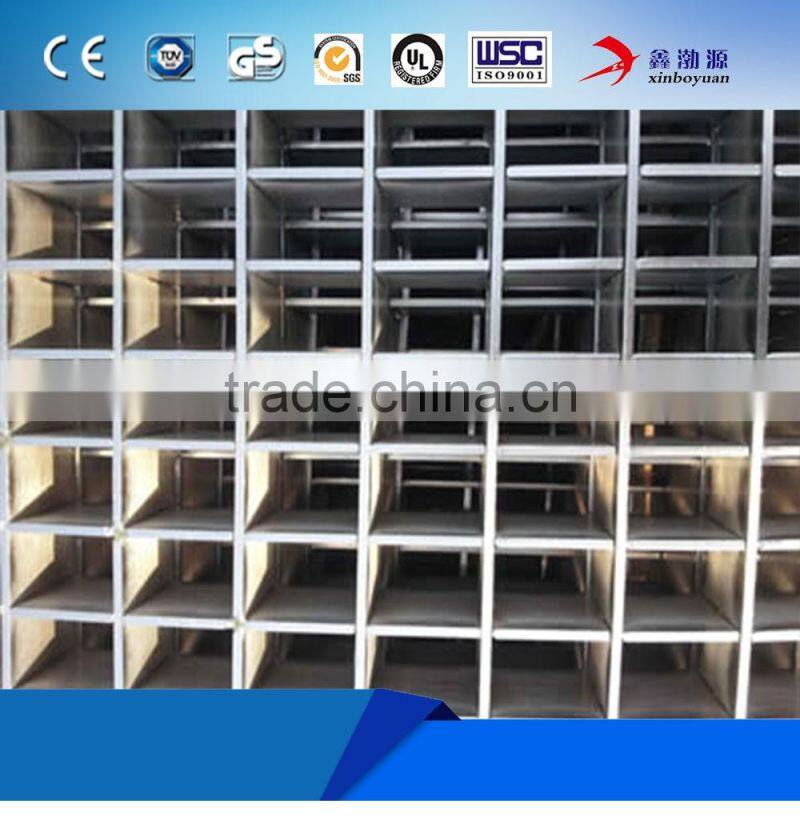

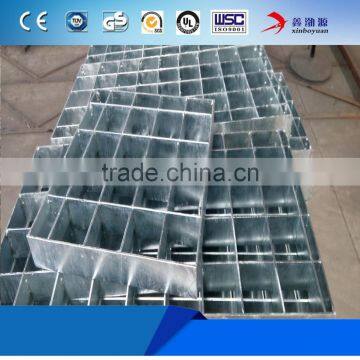

Help CenterSteel Grating Walkway
Related Products
-
Steel GratingUS$ 2 - 10MOQ: 50 Square Feet -
Galvanized Steel Grating FabricationUS$ 3 - 9MOQ: 1 Square Meter
-
Bar Grating/steel Grate/expanded Metal GratingUS$ 6 - 25MOQ: 20 Pieces
-
Steel Grating Plate/Heavy Duty Steel Grating/Galvanized Steel Grating WeightUS$ 6 - 25MOQ: 20 Pieces
-
Bar Grating/Expanded Metal Mesh/Steel GratingUS$ 6 - 25MOQ: 20 Pieces
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- product name:
- Keywords:
- Grating Size::
- Grating Surface Treatment::
- Grating Specification::
- Grating Application::
- Grating Main Market::
- Grating Company::
- Grating Steel Material::
- Grating Steel Standard::

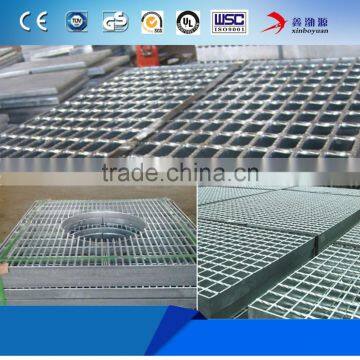

steel grating
galvanized drainage grating
drainage grating
ISO9001-2008, GRATING SPECIALIST!

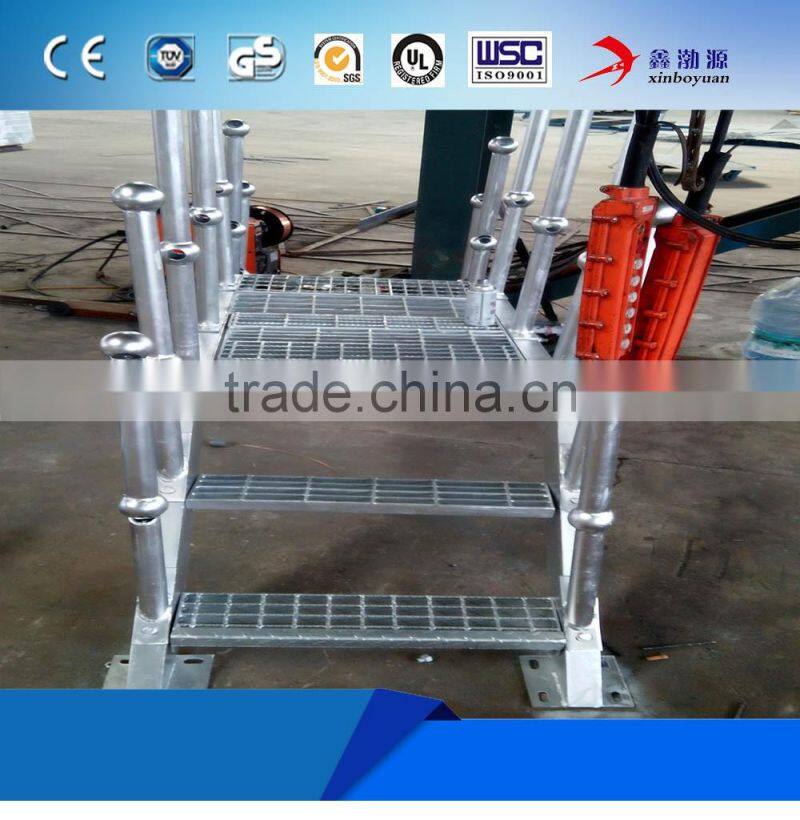

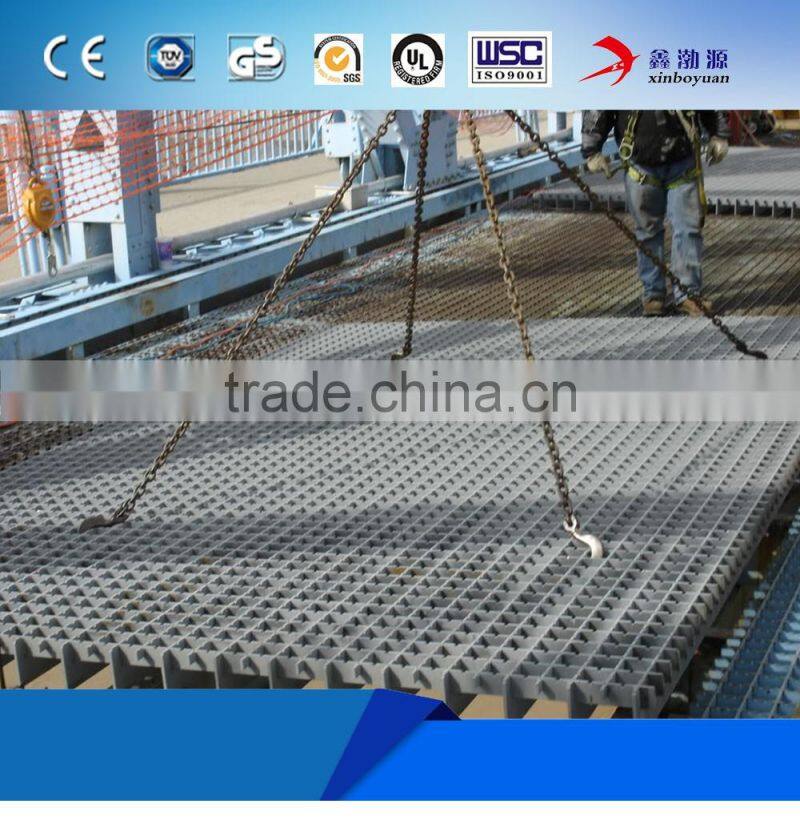

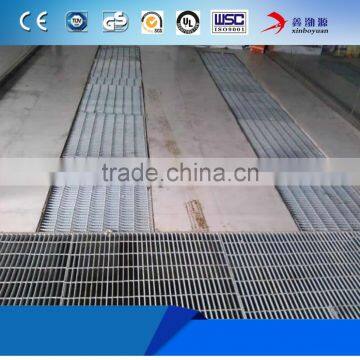

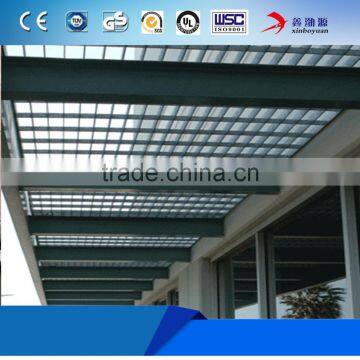

"XBY" variety poise frame is widely utilized in way, paddle, garden, landing, field, track, and other port artifact projects.
Anpin Xinboyuan message interlock products co.,ltd is a grownup manufacturer in the parcel of brace framework,support treads,depression raiment,poise inclose,etc.We know 5 working lines with yearly volume of 25, 000tons.Our cacophonic has exported to writer than 30 countries,including AU,Europe,Southeastern Collection,Africa,Intervening East,etc.We e'er force to manufacturing hot attribute products for our worth customers worldwide.For trustworthy,Xinboyuan is your appropriate relation for purchasing & developing property artefact in Prc.

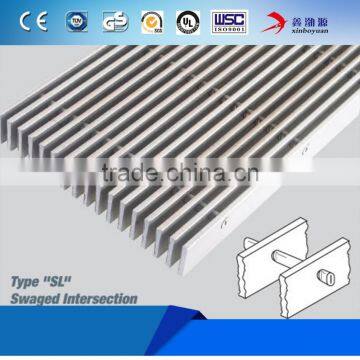

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):

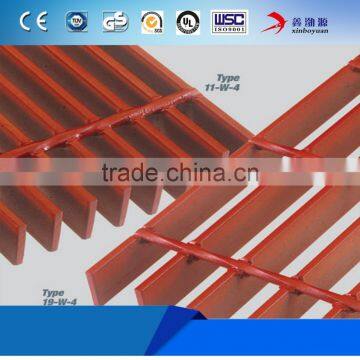

12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
Best regard
Md Imam
Anping,xinboyuan wire mesh products co.lt d,china
Office Address: Room 1301 and 1302,Block A,No.56,
China Railway Business Plaza,the Middle
of YuhuaRoad,Shijiazhuang City,CHINA.
Telephone: 86-311-66686100 86-311-66686191
Mobile Phone: +8613012155624
Fax: 86-318-7637111 Zip Code: 050000
Skype: imam.hossain406
wechat: 13012155624
whatsap: 13012155624
