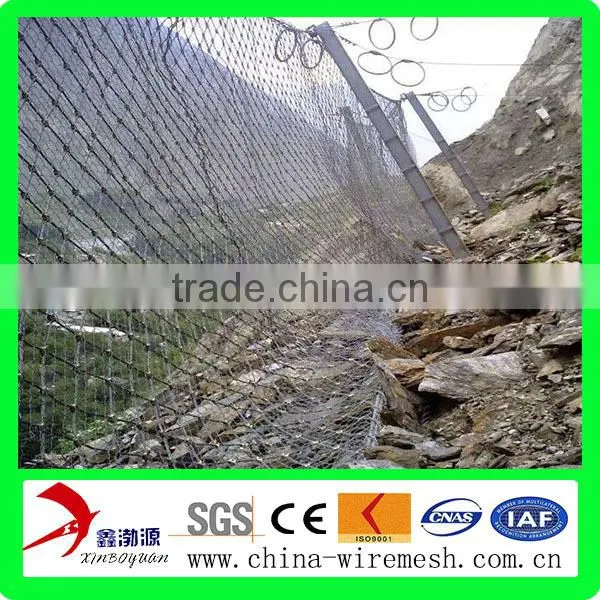

Rockfall Attenuator System/SNS passive protective mesh
- 50 Sheet / Sheets per Month
- tianjin
- T/T L/C
Product Details
Place of Origin: | Hebei, China | Brand Name: | xinboyuan | Model Number: | sns |
Material: | Other, Galvanized Iron Wire, Galvanized Iron Wire | Type: | Wire Cloth |
Product Description
Established: 1990
Area: 60,000 square meter
Staff: 256
Registered Capital: USD 3.50 million
Main Products: galvanized wire,fence.gabion.and other welded mesh ,cramp mesh,weave mesh.
Natural greenery has made the slope stabilization system barely visible.
The securing measures became necessary after heavy rainfalls. Before installing , the vegetation was intentionally only cut back to the roots.
To the photo documentation "Slope stabilization with natural vegetation"
Slope Stabilization Mesh System Component & Characteristic | |||
Type | Mesh Type | Structure Configure | Function |
GAR1 Common Simple Type | Steel Wire Netting | Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope | Protection, Restriction on the slope of rocks movement,Against the collapse |
GAR2 Common Type | Steel Wire Netting | System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8) | Slope Reinforcement,Protect from collapse and weathering. |
GPS1 Common Use | Steel Wire Netting+ Steel Wire Grid | Same to GAR1+ Steel Wire Grid | Same To GAR1, When there are small rocks. |
GPS2 Common Use | Steel Wire Netting+Steel Wire Grid | Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope2-16+ Steel Wire Netting(08/300/4*4+ SO/2.2/50 Steel Wire Grid+System Anchor | Same To GAR2, With small unstable rocks or terrene slope. |
GER1 | Steel Wire Grid | Same To GAR1, But Steel Wire Oversewed Along The Support Rope. | Same to GAR1, But the falling rock is small,mainly protect from broken rock falling. |
GER2 | Steel Wire Grid | Same To GAR2, But Steel Wire Oversewed Along The Support Rope. | Same To GAR2,But the fall rock is small. |
GTC-65A | High-Strength Steel Wire Grid | Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope | Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fallrock is bigger than 1 m³. |
GTC-65B | High-Strength Grid | Reinforcing Steel Bar Anchor Rope | Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m³. |
MG-GPS2 | Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope | Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing | Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock. |
MG-GPS2-L | Same to MG-GPS2 | Same To MG-GPS2+Landscaping of Slope | Same To MG-GPS2+ Landscaping of Slope |
