Home > Products > SNS Slope protection netting > landslide protection works
landslide protection works
- 50 Sheet / Sheets per Month
- tianjin
- T/T L/C Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | xinboyuan | Model Number: | sns |
Material: | Other, Galvanized Iron Wire, Galvanized Iron Wire | Type: | Wire Cloth | Wire Gauge: | 8mm |
Product Description
Specifications
SS302,304,304L,316,316LExcellent acid,alkali,high temperature resistance,strong tensile strength and good abrasion resistance
landslide protection works
Natural greenery has made the slope stabilization system barely visible.
The securing measures became necessary after heavy rainfalls. Before installing , the vegetation was intentionally only cut back to the roots.
To the photo documentation "Slope stabilization with natural vegetation"
Slope Stabilization Mesh System Component & Characteristic | |||
Type | Mesh Type | Structure Configure | Function |
GAR1 Common Simple Type | Steel Wire Netting | Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope | Protection, Restriction on the slope of rocks movement,Against the collapse |
GAR2 Common Type | Steel Wire Netting | System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8) | Slope Reinforcement,Protect from collapse and weathering. |
GPS1 Common Use | Steel Wire Netting+ Steel Wire Grid | Same to GAR1+ Steel Wire Grid | Same To GAR1, When there are small rocks. |
GPS2 Common Use | Steel Wire Netting+Steel Wire Grid | Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope2-16+ Steel Wire Netting(08/300/4*4+ SO/2.2/50 Steel Wire Grid+System Anchor | Same To GAR2, With small unstable rocks or terrene slope. |
GER1 | Steel Wire Grid | Same To GAR1, But Steel Wire Oversewed Along The Support Rope. | Same to GAR1, But the falling rock is small,mainly protect from broken rock falling. |
GER2 | Steel Wire Grid | Same To GAR2, But Steel Wire Oversewed Along The Support Rope. | Same To GAR2,But the fall rock is small. |
GTC-65A | High-Strength Steel Wire Grid | Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope | Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fallrock is bigger than 1 m³. |
GTC-65B | High-Strength Grid | Reinforcing Steel Bar Anchor Rope | Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m³. |
MG-GPS2 | Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope | Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing | Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock. |
MG-GPS2-L | Same to MG-GPS2 | Same To MG-GPS2+Landscaping of Slope | Same To MG-GPS2+ Landscaping of Slope |

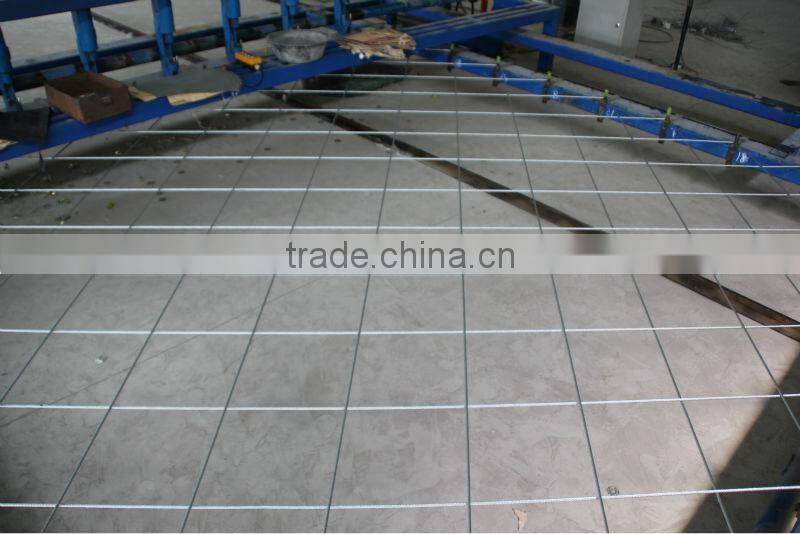

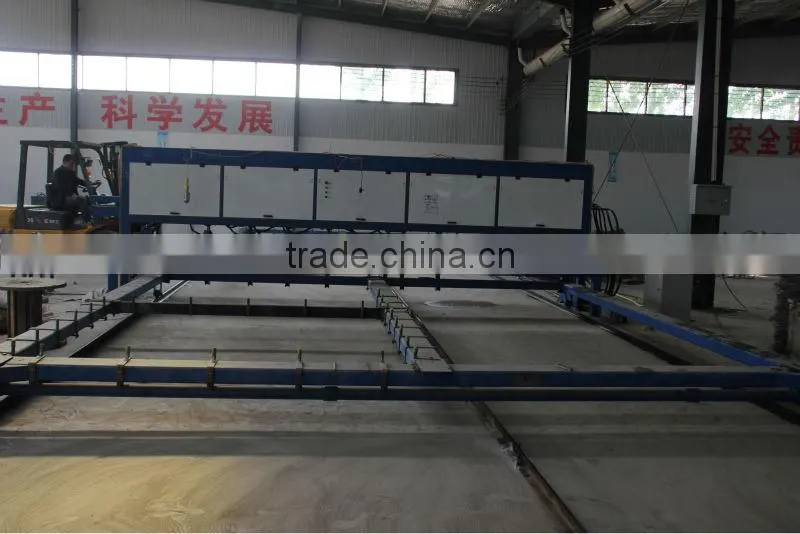

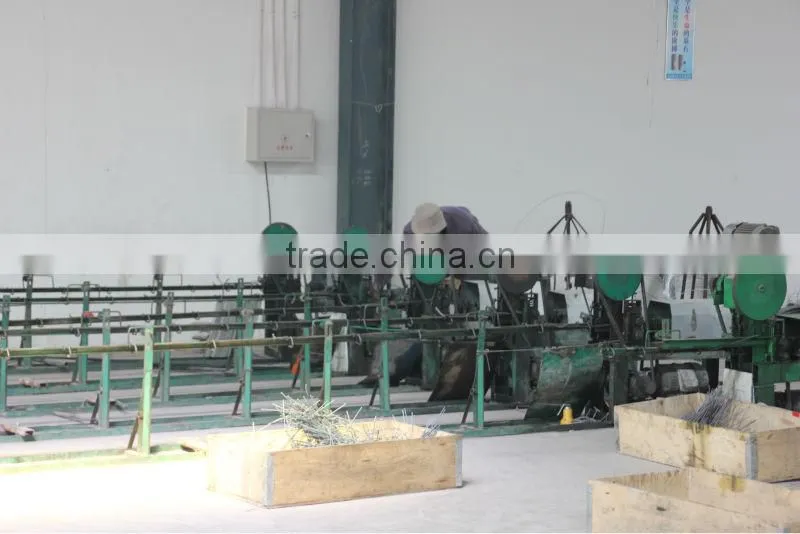

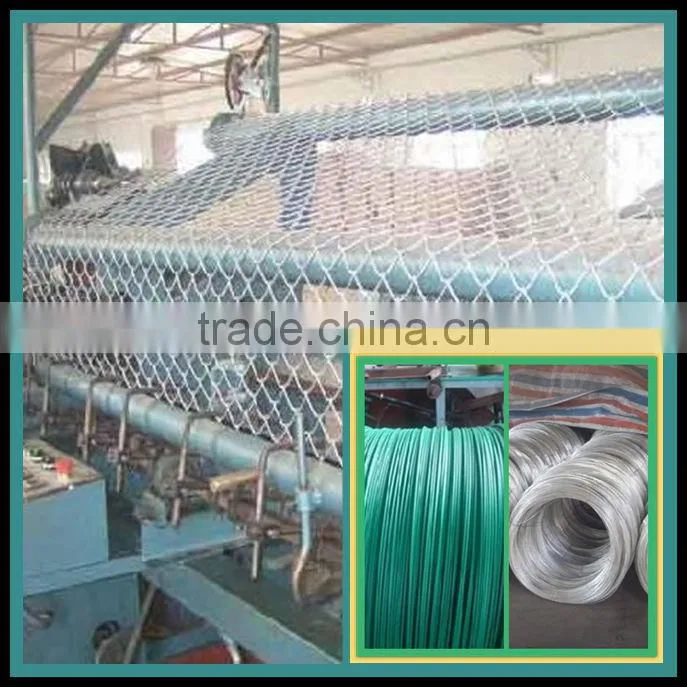

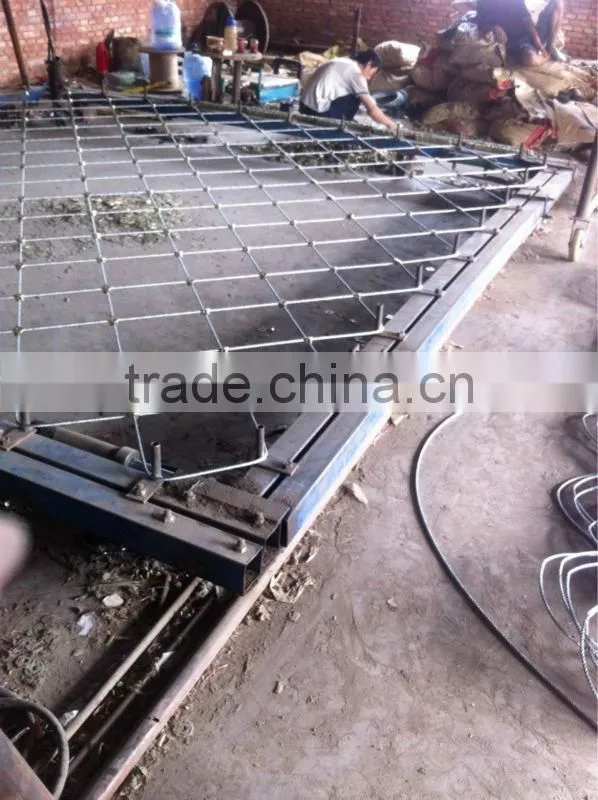

landslide protection works production line

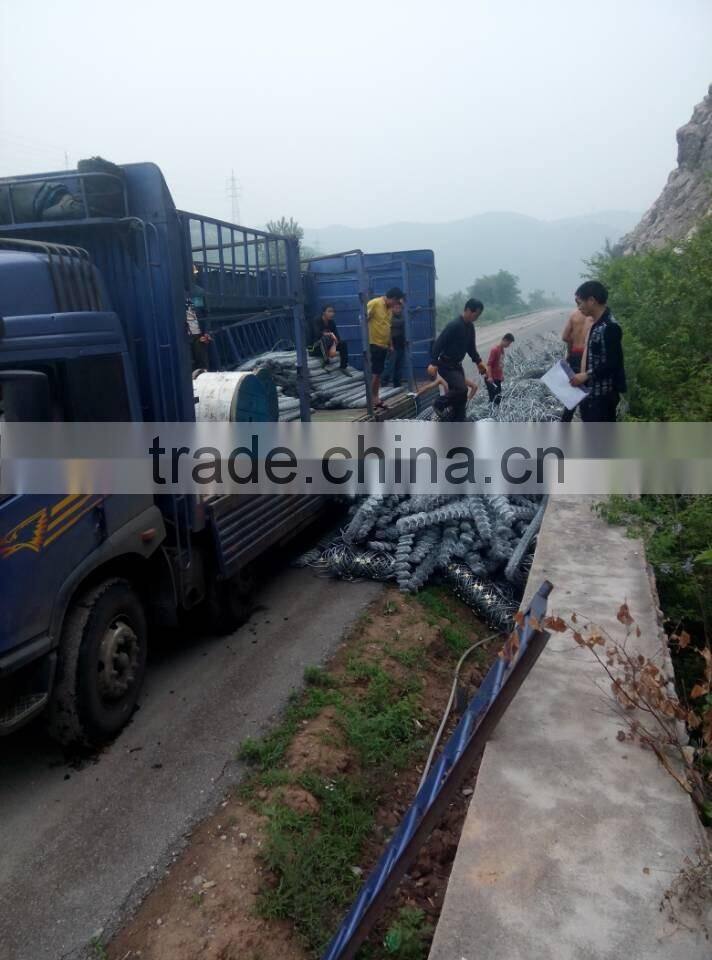

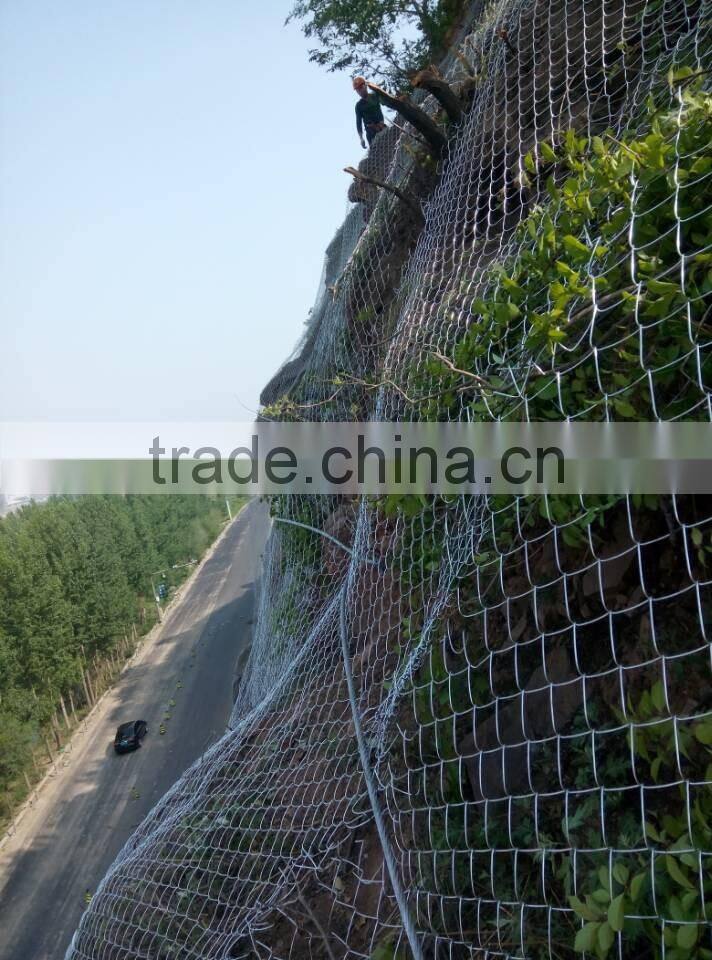

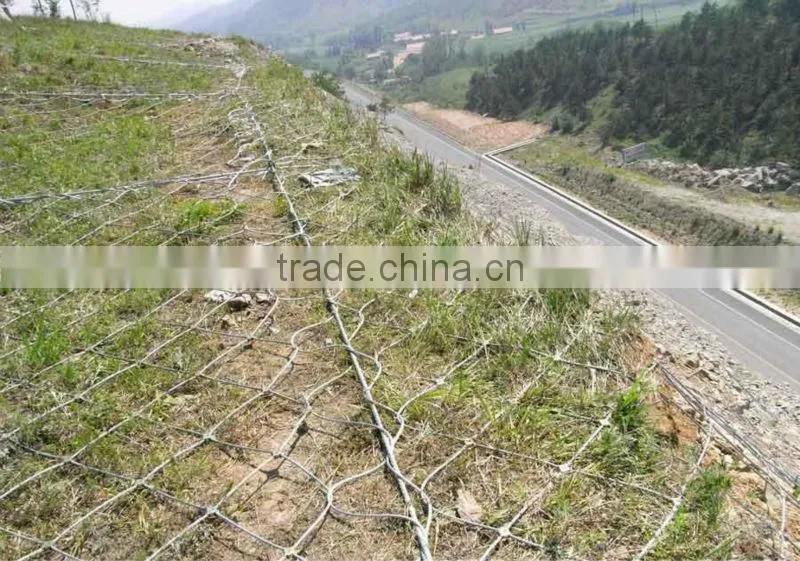

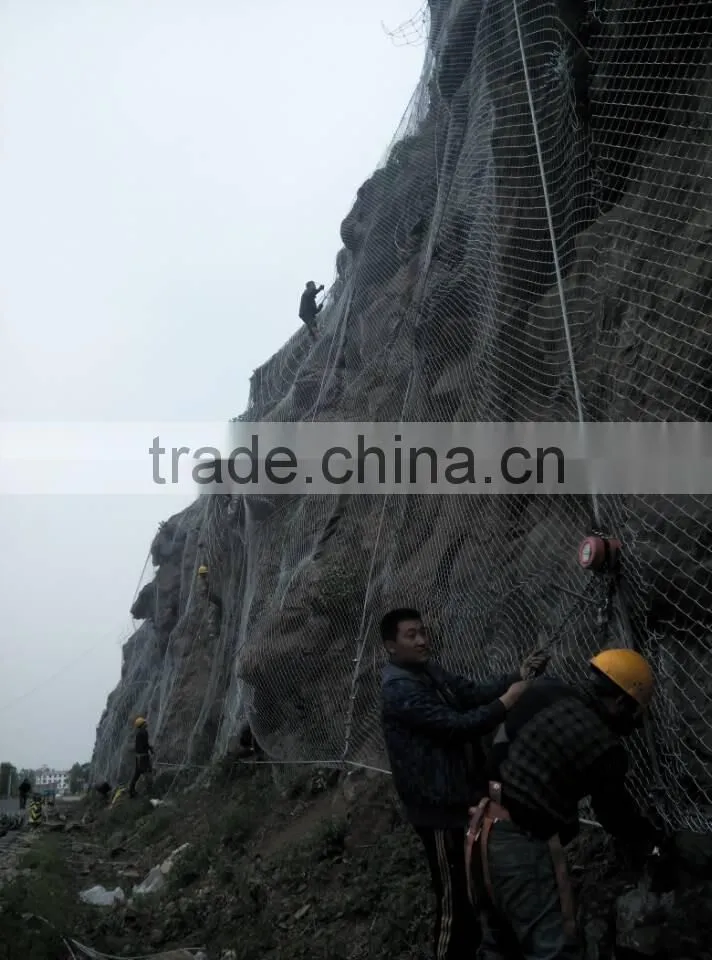

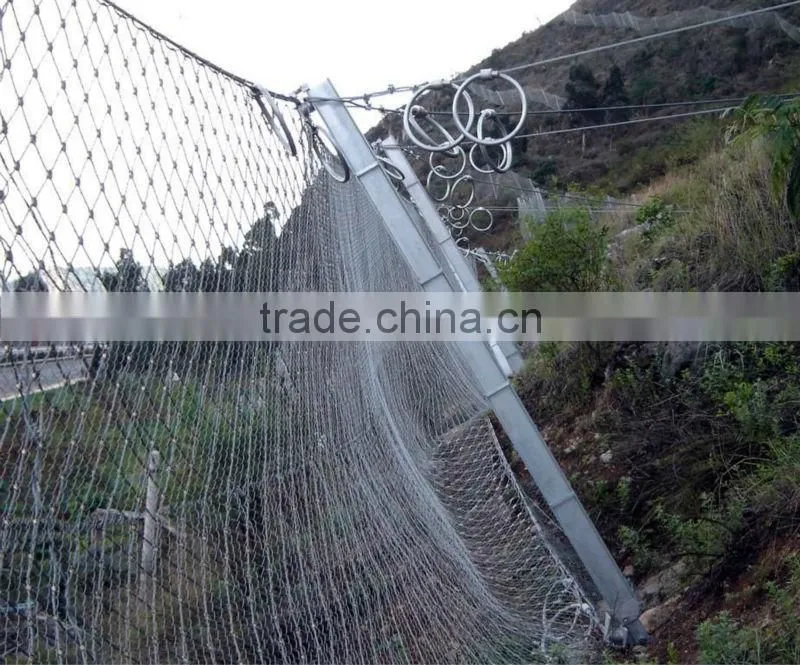

application of landslide protection works
