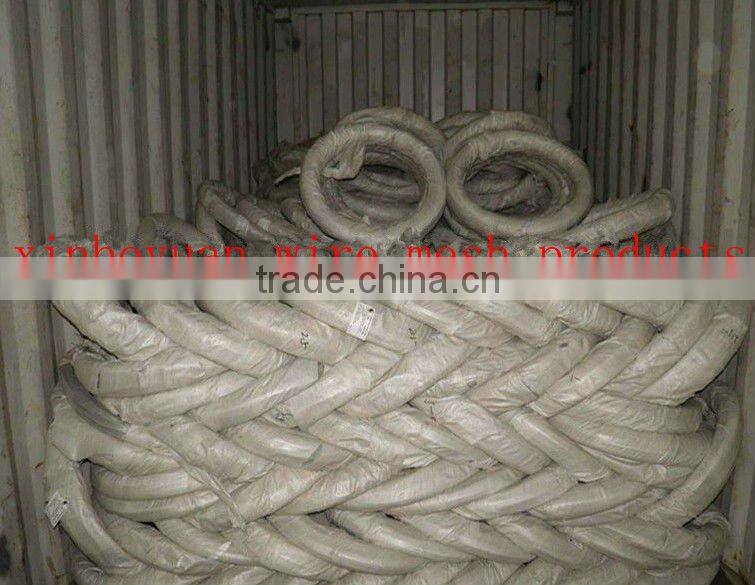

12 gauge GI wire

Specifications

12 gauge GI wire
Wire diameter:0.2-4.1mm
Tensile Strength:300-500N/mm2
Zinc coated:30-50g/m2

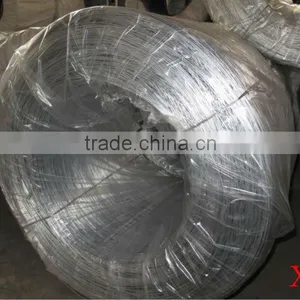

12 Gauge GI wire





Galvanized iron wire contains Electro galvanized or Hot-dipped galanized iron wire



Specifications of 12 Gauge GI Wire:

1.Wire diameter: 2.8mm

2.Tensile strength: 300-500n/mm2

3. Zinc coating weight:  5-50g/m2

4. Elongation:   ≥ 12%



Product	12 Gauge GI Wire
Wire diameter	2.8mm
Tensile strength	300-500n/mm2
Zinc coating weight	5-50g/m2
Elongation	≥ 12%
MOQ	1 ton





1. Electro galvanized iron wire



Material: Q195, Q235, 1006, 1008, 1010, 1018

Wire Diameter:0.13mm-6mm

Tensile stength: 300-550N/mm2

Elongation: 15% max

Detailed Description:



	Product name	Wire dia.	Allowed tolerance	Zinc coating	Packing
	Electro galvanized iron wire	0.13-0.5mm	±0.01mm	8-15g/m2	2kg/spool
		0.28-0.65mm	±0.01mm	8-15g/m2	10kg/coil
		0.6-1.7mm	±0.02mm	8-15g/m2	25kg/coil
		1.8-6mm	±0.02mm	8-15g/m2	50kg-800kg/coil



We use high quality carbon structural steel wire rod Q195, Q235, 1008, 1018 etc as raw material to manufacture galvanized iron wire, through drawing, annealing, chlorhydric acid washing



, water washing, electro zinc coating, water washing, passivate bright treatment, drying and other procedures.



2. Hot dipped galvanized iron wire



Material: Q195, Q235, 1006, 1008, 1010, 1018

Wire Diameter: 0.2mm-8.5mm

Tensile stength: 300-550N/mm2

Elongation: 15% max

Detailed Description:



	Product name	Wire dia.	Allowed tolerance	Zinc coating	Packing
	Hot dipped galvanized iron wire	0.2-0.3mm	±0.01mm	30-50g/m2	4kg/spool
		0.3-0.6mm	±0.01mm	30-50g/m2	10kg/coil
		0.5-1.6mm	±0.02mm	30-50g/m2	25kg/coil
		1.6-4.5mm	±0.02mm	30-50g/m2	25kg-50kg/coil



We use high quality carbon structural steel wire rod Q195, Q235, 1008, 1018 etc as raw material to manufacture galvanized iron wire, through drawing, annealing, chlorhydric acid washing



, water washing, hot dipped zinc coating, drying and other procedures, our product can achieve in ASTM641 standard.
