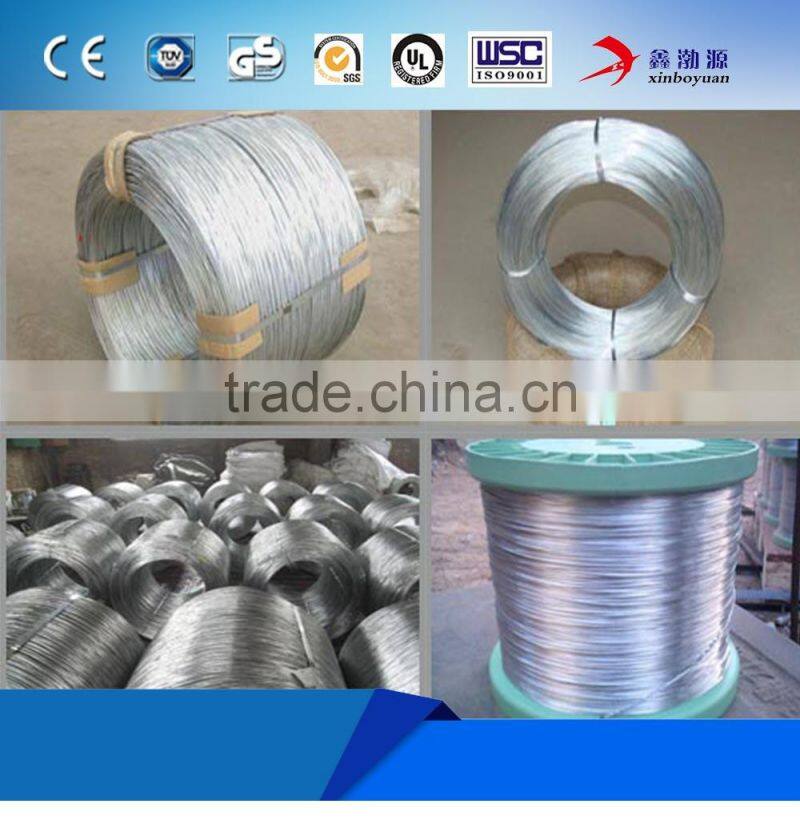

Galvanized steel wire for fishing net
Galvanized high carbon straightened steel wire
Galvanized steel wire for fishing net, 18 Guage (1.18mm)& 19gauge(1.06mm).
18 Guage (1.18mm)& 19gauge(1.06mm)
Zinc Coating: 80-250g/m2
Tensile strength: Min 1500-1520Mpa
Torsion time: 18
Elongation: 4% with gauge 200mm
Packing: 45kg/coil( ID:1000MM)
This product technology possesses the property of good measurement, accuracy, multiple mechanical properties, smooth zinc coating, strong adhesive force, anti seawater corrosion and long service life. The most quality index of its specification Q/MGHL003-1999 are superior to that of Japans and Koreas.
Nominal dia. | Tensile strength not less than |
Elongation not less than L0=200mm |
Torsion test not less than |
weight of zinc-coating not less than |
mm | MPa | % |
| g/m2 |
0.75 | 1450 | 4 | 18 | 135 |
0.85 | 140 | |||
0.95 | 150 | |||
1.06 | 160 | |||
1.18 | 170 | |||
1.32 | 180 | |||
1.55 | 200 | |||
1.80 | 215 |
