Specifications
Hexagonal wire mesh:Low carbon steel wire
Wire diameter:2.0-4.0mm
Roll length:30-50m
Roll width:0.5-4.0m
PVC coated Hexagonal Wire Mesh
(CE& ISO9001 Certificates)
1. Foundation time: 1990
2. Location: Anping County, Hebei Province (Wire mesh land)
3. Staff: More than 200
4. Our certificates: ISO9001:2008; CE; SGS; BV
5. Our products: Gabions, fences, metal wires, etc
6. Our main markets: USA, Germany, Japan, Canada, Southeast Asia, the Middle East,
Africa and all over the world.

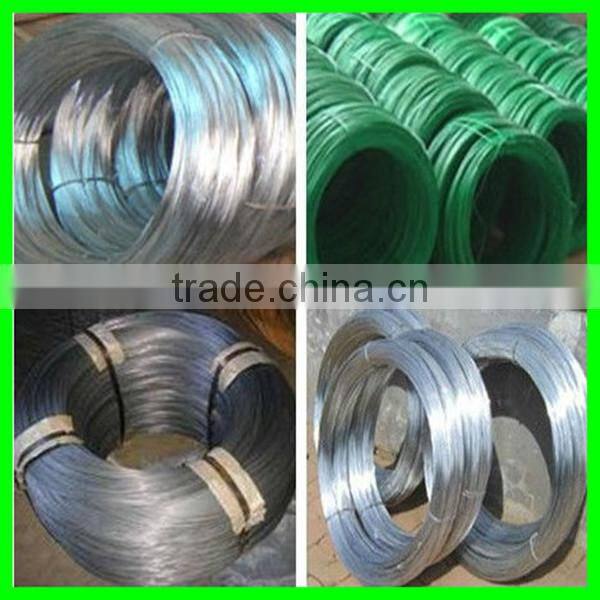

1) Material:
1) Electric galvanized wire
2) Hot-dipped galvanized wire
3) Heavy Zinc coated wire
4) GALFAN coated wire
5) PVC coated wire (electric galvanized wire/hot-dipped galvanized wire/GALFAN wire)
6) PE coated wire (electric galvanized wire/hot-dipped galvanized wire/GALFAN wire)
2) The weaving of the hexagonal wire mesh:
Positive twist, Reserve twsit, 3-twist, 5-twist, galvanized after weaving, weaving after galvanized
Character: Good anti-corrosion, anti-oxidation
3) The specification of the hexagonal wire mesh:
Opening Size | Wire Gauge | Width Per Roll | ||||
Inch | mm | Tolerance | BWG | mm | Feet | Meter |
3/8" | 10 | +0.5 | BWG 27-23 | 0.41-0.64 | 1'-6' | 0.1-2m |
1/2" | 13 | -1.5 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
5/8" | 16 | +1.0/-2.0 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
3/4" | 19 | +1.0/-2.5 | BWG 26-20 | 0.46-0.89 | 1'-6' | 0.1-2m |
1" | 25 | +1.5 | BWG 25-29 | 0.51-1.07 | 1'-6' | 0.1-2m |
1 1/4'' | 31 | -3.0 | BWG 24-18 | 0.56-1.24 | 1'-6' | 0.2-2m |
1 1/2" | 40 | +2.0/-4.0 | BWG 23-16 | 0.64-1.65 | 1'-6' | 0.2-2m |
2" | 51 | +2.0/-4.0 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
3" | 76 | +2.0/-4.0 | BWG 21-14 | 0.81-2.11 | 1'-6' | 0.3-2m |
4" | 100 | +2.0/-4.0 | BWG 20-12 | 0.89-2.80 | 1'-6' | 0.5-2m |
Remarks : The length per roll could be produced according to your need. | ||||||
Other specifications are available, If you have a special requirement, HTM can help. | ||||||
Could be weaved in continuous or reverse twist | ||||||

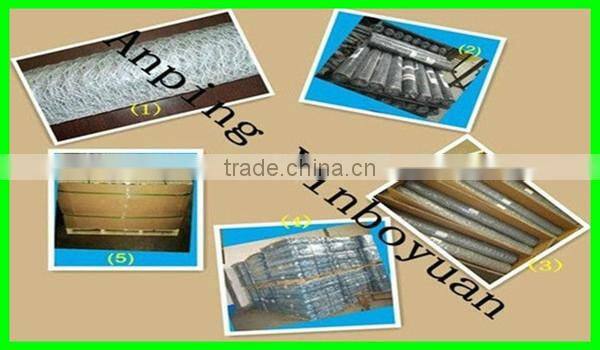

1.shrink film+ label (customer's logo is ok ) 2.water-proof paper+ shrink film+ label 3. according to your request

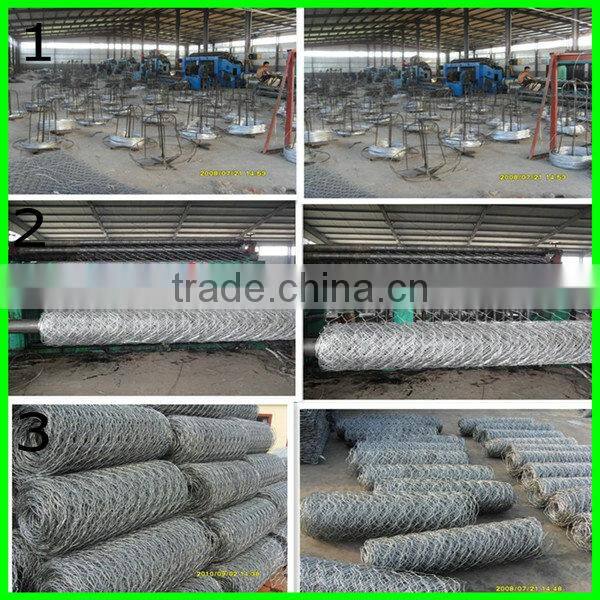

The process of the hexagonal wire mesh:

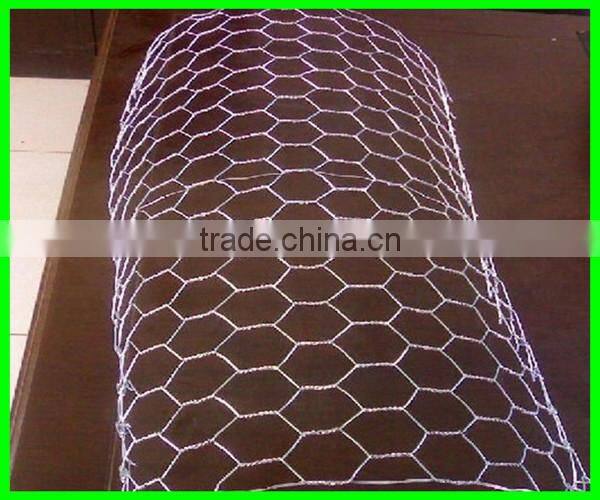

The PVC coated hexagonal wire mesh:

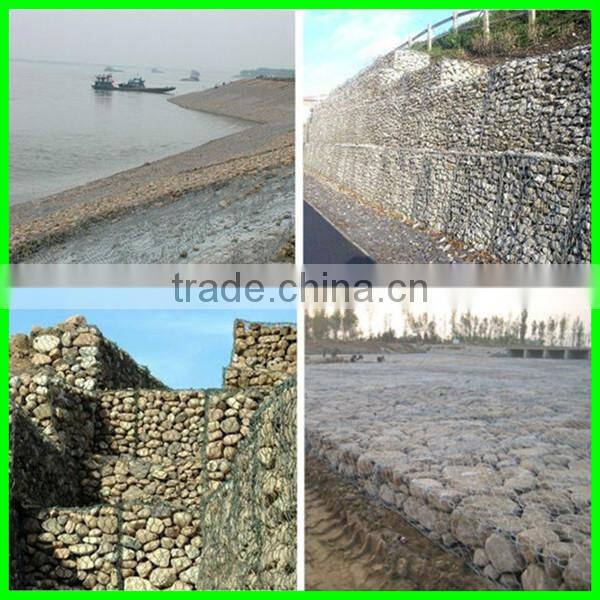

The application of the hexagonal wire mesh:
Products certificates:
Contact details:
