Specifications
Mesh:6x8,8x10,10x12,12x14CMGabion Standard:ASTM A 975-97
Material:Galvanized wire PVC Wire and Galfan Wire

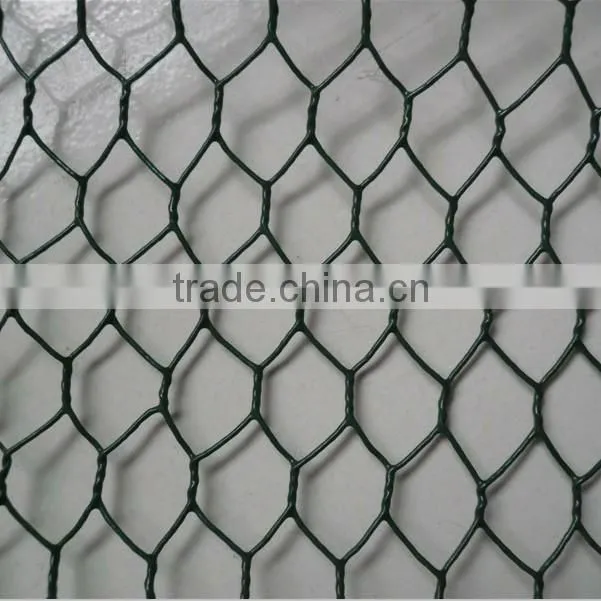

hexagonal wire mesh Manufacturer
hexagonal wire mesh also named chicken wire mesh,hexagonal mesh netting,gabion mesh,gabion box,stone cage and so on.

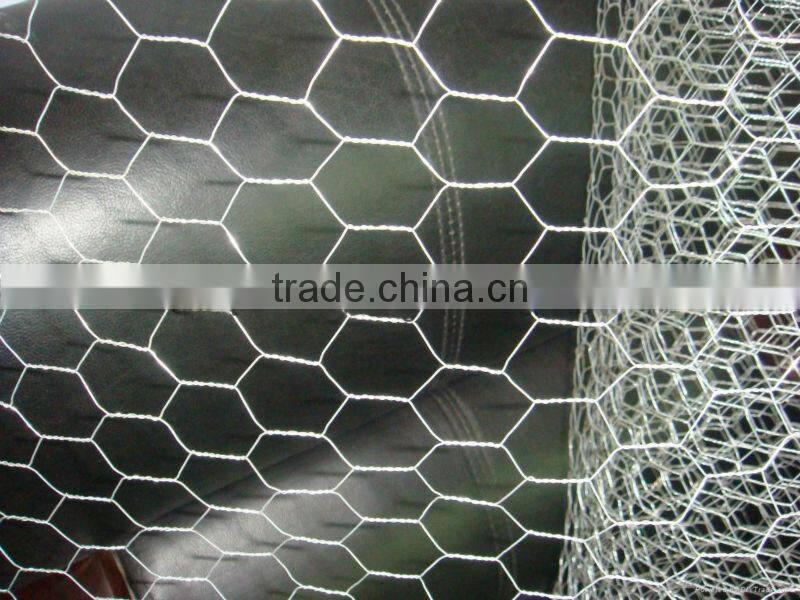

A.when wire diameter 0.5-2mm,we called small type hexagonal wire mesh,chicken wire mesh.

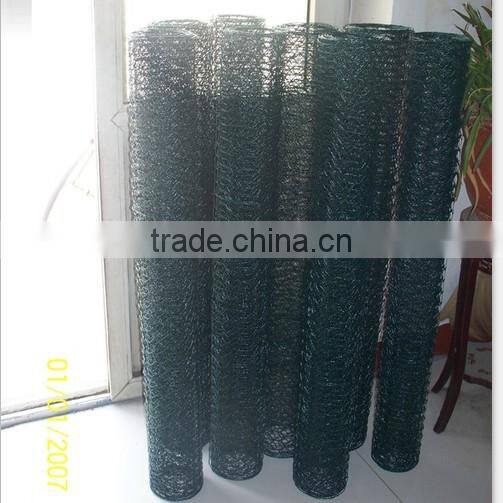

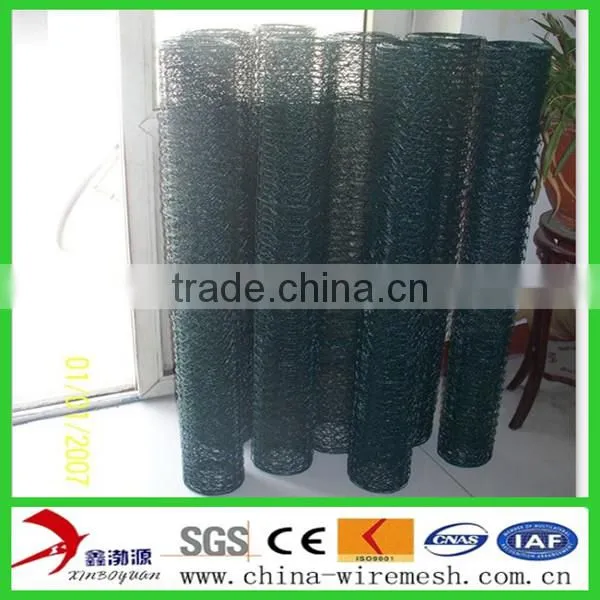

| PVC Coated chicken wire mesh | |||
Mesh | Wire Gauge (MM) | Width | |
Inch | MM | ||
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
| Galvanized chicken wire mesh | |||||
| mesh | Min. Gal.v. G/SQ.M | Width | Wire Gauge (Diameter) BWG | ||
| Inch | mm | Tolerance(mm) | |||
3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Application: chemical, breeding, garden and food processing industries.
B.when wire diameter 4mm,we called hexagonal wire mesh,hexagonal wire netting.
Assortment: Electro galvanized after weaving Electro galvanized before weaving Hot dipped galvanized after weaving Hot dipped galvanized before weaving PVC Coated after weaving
Application : it used wide in building, oil, chemical industry, breed, plant protection , food processing’s reinforce guard and heat preservation.

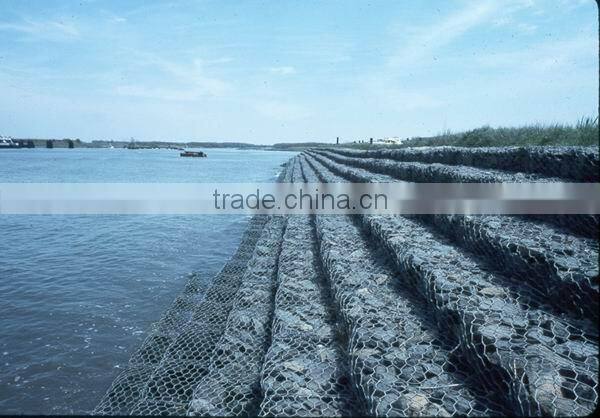

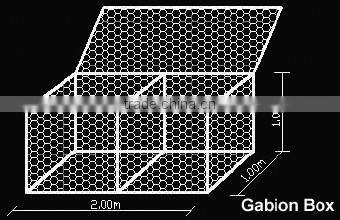

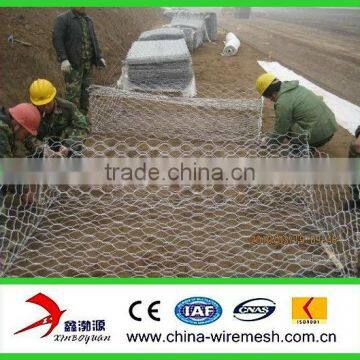

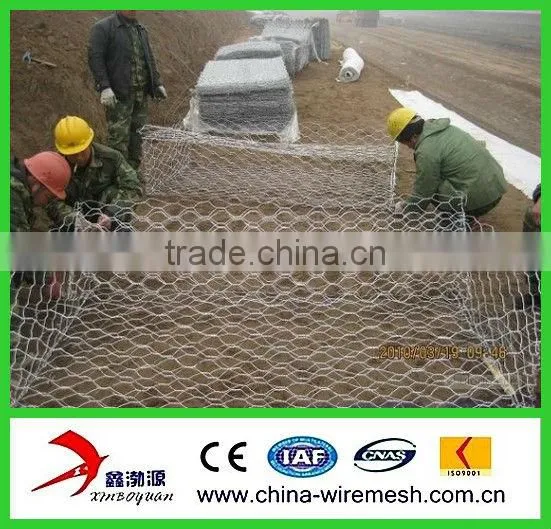

C.when wire diameter greater than 4mm,Gabion box is also named rock gabions, gabion wall,stone cage,welded wire gabions, welded mesh gabions, gabion boxes, gabion mattresses, gabion basket, galfan coated welded gabions, welded mesh gabion box.
material:electric galvanized wire, hot ipped galvanized, PVC Coated, Zinc-5% aluminum-mixed mischmetal alloy steel wire
SPECIFICATION OF THE HEAVY HEXAGONAL WIRE MESH | ||||
Hole size (mm) | Wire diameter(mm) | wire (PVC wire )/Inner/Outside(mm) | Biggest Width (mm) | |
60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4.3 | |
80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 | |
80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4.3 | |
100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 | |
100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4.3 | |
120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4.3 | |

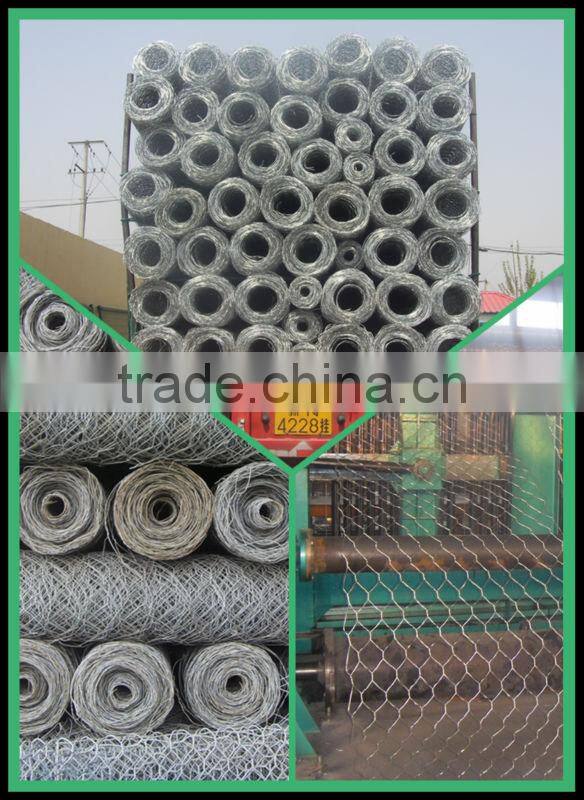

The production process of hexagonal wire mesh
ready for wire
weave to mesh by machine

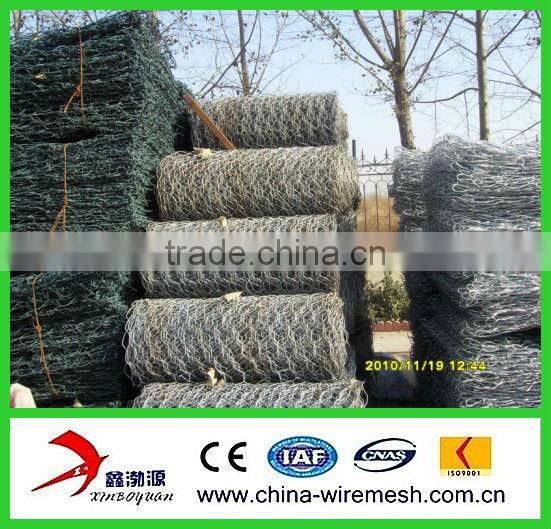

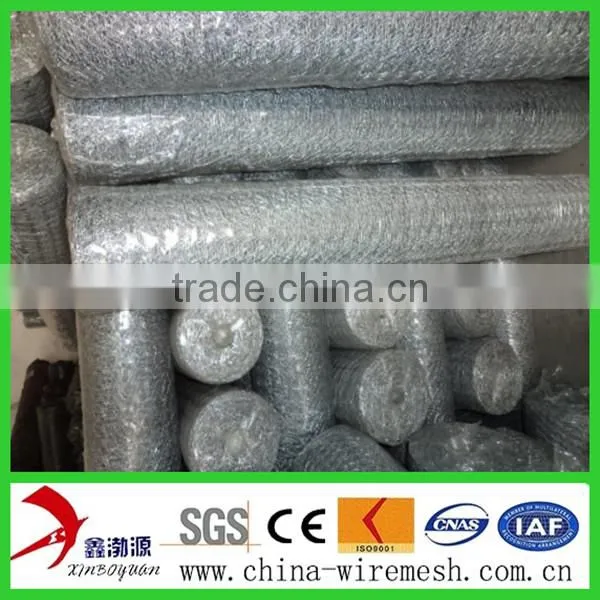

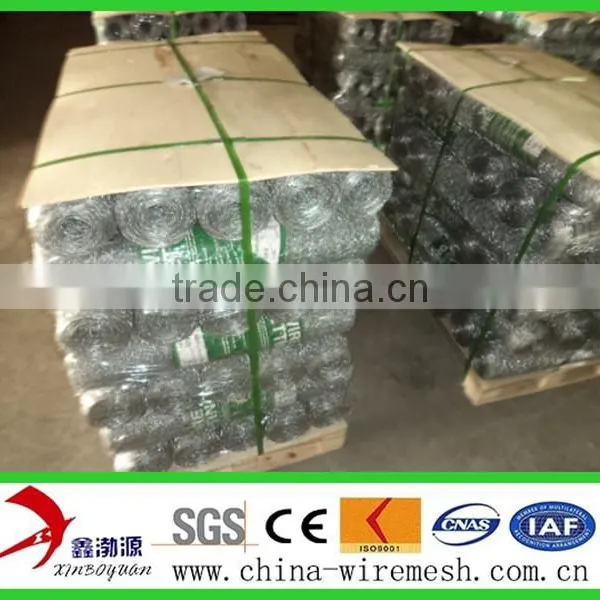

packing(pieces or rolls)

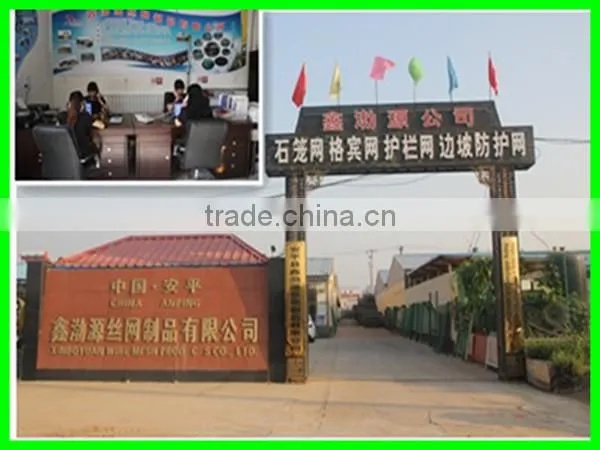

Our company overview
