Specifications
1.Produce and market all by ourselves2.Class A quality and service
3.Quality guarantee 12 years
4.Certificate:ISO9001-200

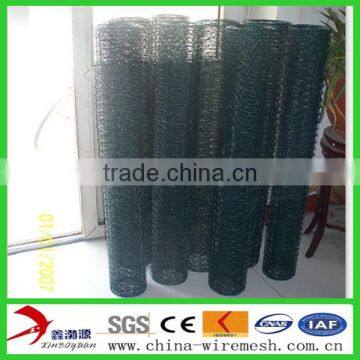

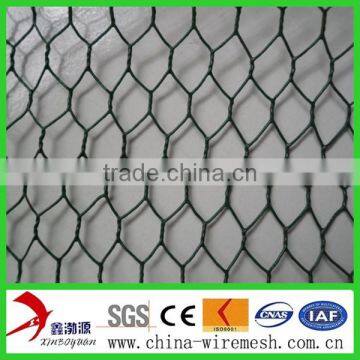

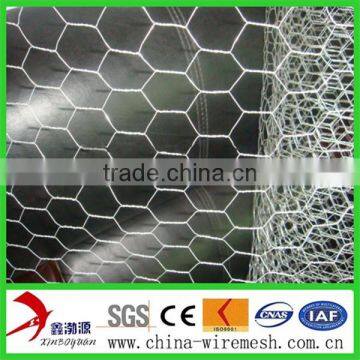

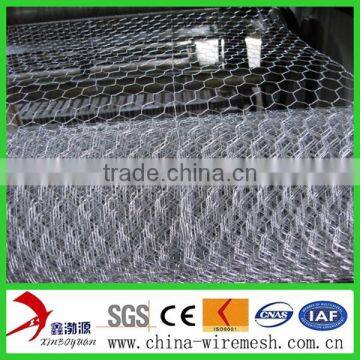

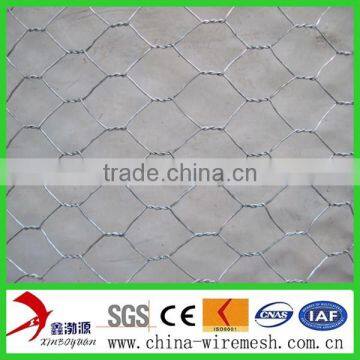

PVC Coated or Galvanized hexagonal wire netting
1.Specifications of Galvanized Hexagonal Wire Netting
Opening Size | Wire Gauge | Width Per Roll | ||||
Inch | mm | Tolerance | BWG | mm | Feet | Meter |
3/8" | 10 | +0.5 | BWG 27-23 | 0.41-0.64 | 1'-6' | 0.1-2m |
1/2" | 13 | -1.5 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
5/8" | 16 | +1.0/-2.0 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
3/4" | 19 | +1.0/-2.5 | BWG 26-20 | 0.46-0.89 | 1'-6' | 0.1-2m |
1" | 25 | +1.5 | BWG 25-29 | 0.51-1.07 | 1'-6' | 0.1-2m |
1 1/4'' | 31 | -3.0 | BWG 24-18 | 0.56-1.24 | 1'-6' | 0.2-2m |
1 1/2" | 40 | +2.0/-4.0 | BWG 23-16 | 0.64-1.65 | 1'-6' | 0.2-2m |
2" | 51 | +2.0/-4.0 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
3" | 76 | +2.0/-4.0 | BWG 21-14 | 0.81-2.11 | 1'-6' | 0.3-2m |
4" | 100 | +2.0/-4.0 | BWG 20-12 | 0.89-2.80 | 1'-6' | 0.5-2m |
Remarks : The length per roll could be produced according to your need. | ||||||
Other specifications are available, If you have a special requirement, HTM can help. | ||||||
Could be weaved in continuous or reverse twist | ||||||
Material
1. Galvanized steel wire: high quality low carbon steel wire, wire diameter 2.0mm -4.0mm. The tensile strength of steel wire shall be more than 380 Mpa. Protected by Hot dipped galvanized, galvanized thickness can be required by cuntomers, the Max is 300g/m². Heavy zinc-coated wire(EN10244-2 240g/m²)
2. Zinc - 5%Aluminum - Mixed rare earth alloy steel wire (Galfan wire):Corrosion resistance is more than three times of the traditional pure galvanized. Wire diameter 1.0mm-3.0mm, The tensile strength of steel wire shall be more than 1380 Mpa
3. Pvc coated wire(Pvc thickness:0.38-0.5mm)
Assortments Available:
hexagonal wire mesh Electro Galvanized before Weaving
hexagonal wire mesh Electro Galvanized After Weaving
hexagonal wire mesh Hot Dipped Galvanized before Weaving
hexagonal wire mesh Hot Dipped Galvanized after Weaving
hexagonal wire mesh PVC Coated Before or After Weaving

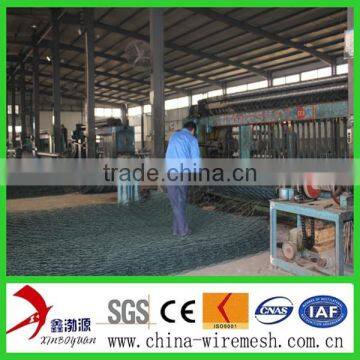

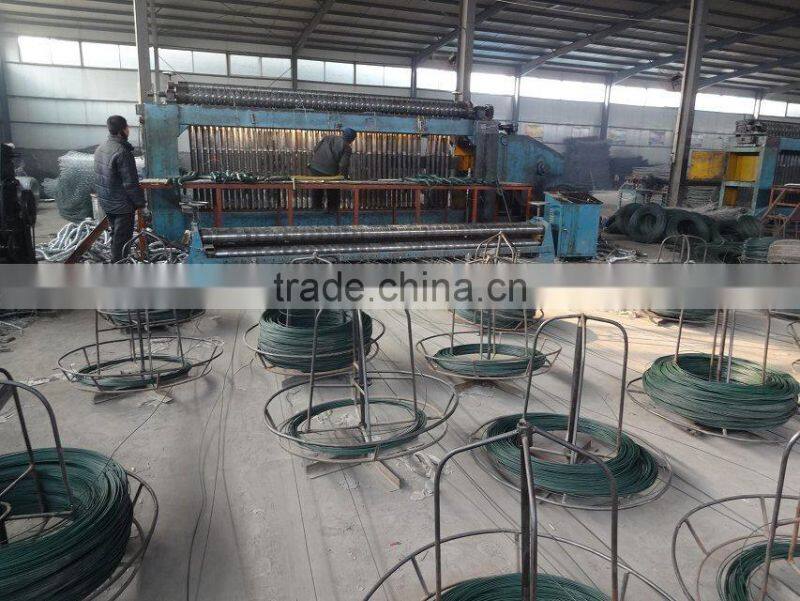

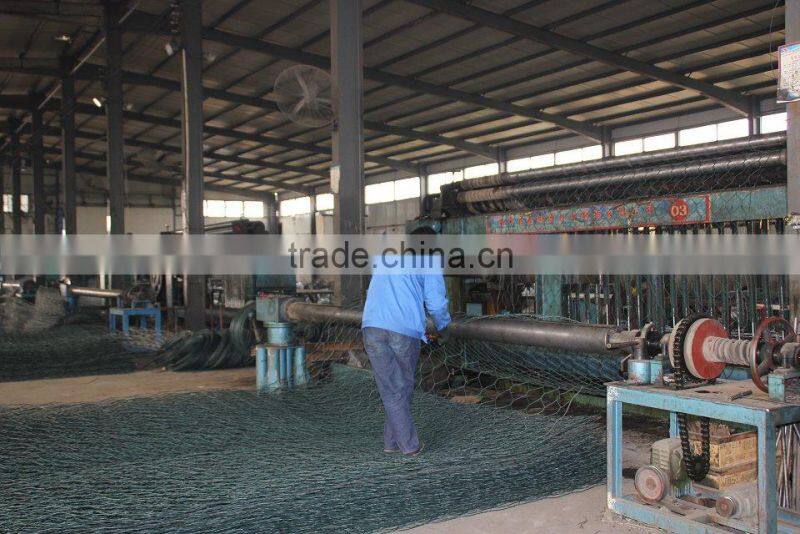

2. Manufacture Line of Gabion Wire Mesh
Ready wire and weaving to mesh,folding edges by our skilled worker and compact
