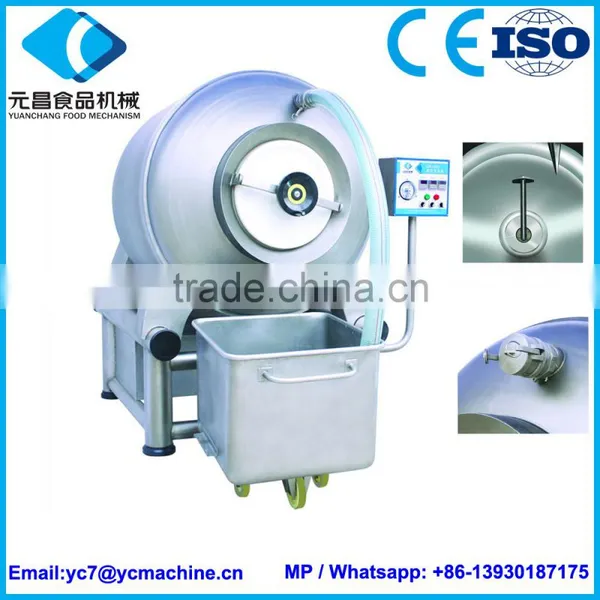

High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing

High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing photo-1

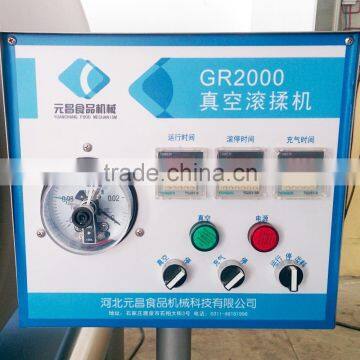

High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing photo-2
High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing photo-3
High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing photo-4
US$ 8,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Kebab
Application:
Meat Processing
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Kebab
Application Meat Processing
Automatic Grade Automatic
Production Capacity 250 kgs/time
Place of Origin Hebei, China
Brand Name YUANCHANG
Model Number GR-500
Voltage 380 V
Power(W) 1.65 KW
Dimension(L*W*H) 1650x1230x1420 MM
Weight 380 KGS
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

The GR Series Vacuum Meat Tumbler is the best choice for meat processing, because:



1. The vacuum meat tumbler is full stainless steel constructed..



2. Designed to meet the needs of large-sized meat and poultry processors, marinating meat, poultry and seafood and is designed to provide ready-to-cook, value-added products.



3. This Machine is super sealing effect, designed with multi-functions intermittently moving and lung respiration.







Product Description



Here are the GR Series Vacuum Meat Tumbler Specification:





Model

Capacity

Power

Cylinder Volume

Cylinder Speed

Vacuum Level

Voltage

Weight

Size

GR-250

100 KGS/Time

1.65 KW

250 L

7 R/Min.

-0.085 MPA

380 V

379 KGS

1300x1230x1515MM

GR-500

250 KGS/Time

1.65 KW

500 L

7 R/Min.

-0.085 MPA

380 V

380 KGS

1650x1230x1420MM

GR-1000

500 KGS/Time

3.3 KW

1000 L

7 R/Min.

-0.085 MPA

380 V

788 KGS

1980x1520x1820MM

GR-1600

800 KGS/Time

4.5 KW

1600 L

8.9/18 R/Min.

-0.085 MPA

380 V

833 KGS

2080x1620x1890MM

GR-2000

1000 KGS/Time

6.4 KW

2000 L

6 R/Min.

-0.085 MPA

380 V

1294 KGS

21100x1780x2020MM

GR-3000

1500 KGS/Time

7.7 KW

3000 L

3 R/Min.

-0.085 MPA

380 V



2360x1920x2220MM









Advantage of GR Vacuum Meat Tumbler:



Making products more juicer, tender and flavorful.

Increased profit margins and increased productivity.

Built-in Vacuum System.

Clockwise and counter-clockwise rotation.

Reliable, stable running, low noise & convenient.

Most important Easy Cleaning.



With the incorporation of physical impact principle, the meat slice and various ingredients can move upwards and downwards inside the rolling and kneading machine, through the impacting amidst them, a uniform massage and pickling can be achieved, subsequently, the affinity between the meat and the accessories, and the elasticity and productivity of the products can be greatly improved. This Machine is super sealing effect, designed with multi-functions intermittently moving and lung respiration. The vacuum level can be automatically controlled during the processing, except Model GR500. Meanwhile the vacuum intake system and powder materials loading port are designed with the Machine.









Here are GR Series Vacuum Meat Tumbler Details:



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing





High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing





High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing





All elements and parts are use reliable and famous brand that work with us over 20 years!



 High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing





Our Services



 The GR Series Vacuum Meat Tumbler can work with Smoke House Oven as a part of meat product poduction line:



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing









We still make other machines for sausage making and meat process:



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing





Company Information



 Yuanchang Food Mechanism & Technology co.Ltd established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China’s meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine‘s movement. Designing different requirements of the machinery will be possible. The outstanding quality we made, advanced technique, abundant strength, it holds advanced professional technology in domestic meat produce as well as customer‘s high praise. Hence occupies the excellent economic and social efficiency for customers and enterprise.



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing



 High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing







Packaging & Shipping



High Capacity Vacuum Meat Massage Machine Meat Tumbler For Meat Processing







FAQ



1. Are you a factory or trading company?

We are the leading factory of Meat Machine in China. We welcome you visit us!



2. How about the product quality?

The stainless steel we adopt excellent SUS304.

Each machine will be tested more than 24 hours after finishing.

All elements are use reliable and famous brand that work with us over 20 years.



3. What about the warranty and after-sale service?

Our machine has 12 months guarantee, electrical parts and air parts has 6 months guarantee.

Our engineers are available to serve oversea.



4. Are you providing training about machine installation and operation?

Yes, our engineer can teach your worker in our factory OR give them a class in your factory.



5. Is it possible to use our LOGO or special custom design?

Yes, no problem.. We have a professional technology team for new research and development.



6. How long the lead time is?

Usually 25-30 Days is enough.



7. What is the price term and payment method?

We can quote EXW, FOB, CIF and CNF price. You can pay us by T/T, L/C or Western Union.
