Specifications
vacuum emulsifying mixer1.stainless steel material
2.two shafts for mixing
3.vacuum system
4.lift for feeding(optional)

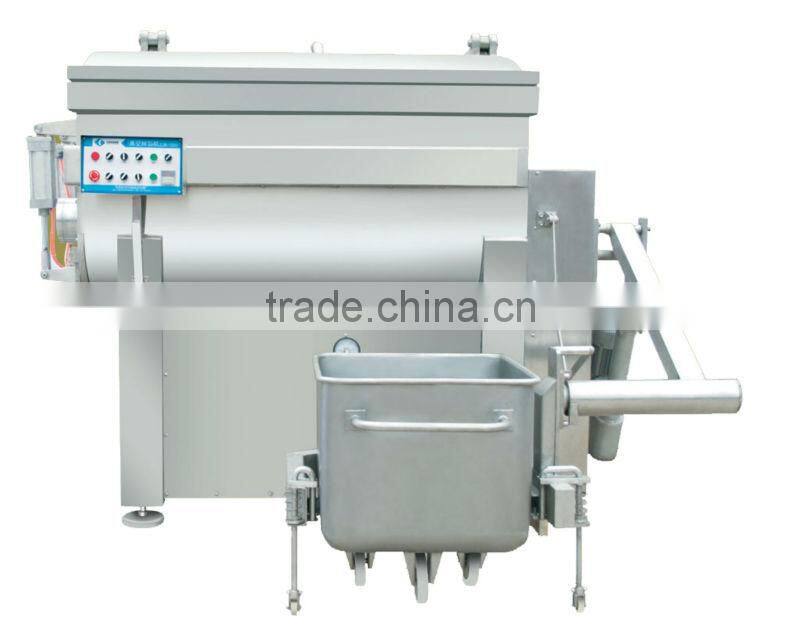

Vacuum Mixer ZKJB-150
1. Advantages:
* SUS 304 stainless stell construction.
* Double shaft for mixing and agitating.
* Positive and inversive rotation control.
* The top cover and the discharger cover controlled by pneumatic system.
* Equipped with built-in vacuum system, good mixing and agitating effect,long shelf life.
* Minimal temperature rise during mixing process.
2. Technical Performance:
ITEM |
SPECIFICATION |
WEIGHT |
CBM |
QTY |
FOB XINGANG |
|
Vacuum Mixer ZKJB-150
|
Capacity:120kg/time Tank volume:150litre Power:2.95kw Mixing Speed: 56r/min Vacuum Level: 0--0.085Mpa Rated Voltage: 380v(The power of the machine can be customized). Dimensions: 1400*1100*1300mm |
500KG |
2.01 |
1SET |
USD5700 |
3. Operation Instruction:
3-1. Fill the filler with raw material, and then close the top cover automatically by the pneumatic system;
3-2. Turn on vacuum pump until the vacuum level reached the setting value;
3-3. Start master motor and them mixing processing begins;
3-4. When the mixing process is finished, turn on the air suction valve to eliminate the negative pressure;
3-5.Turn on the"discharger" button on the operation panel, discharging begins automatically by the pneumatic system.
3-6.The"emergency stop"button works anytime during the operation for safety.

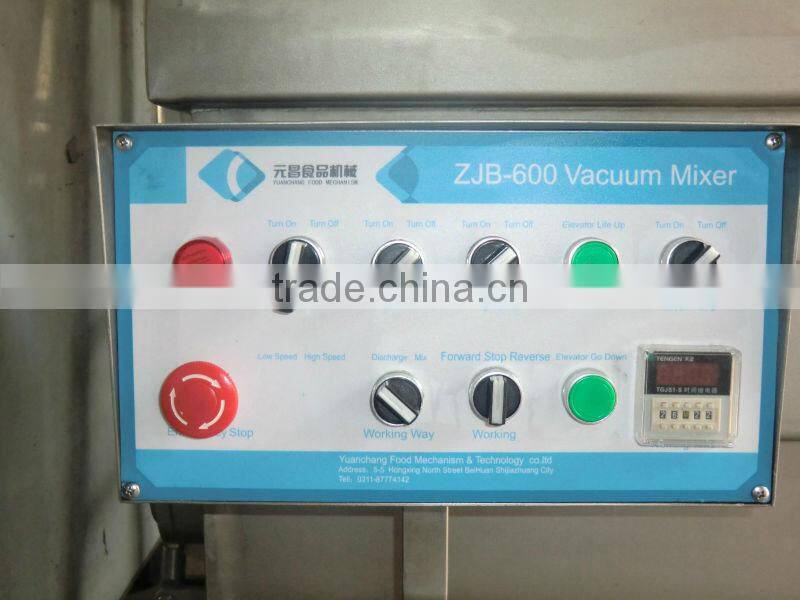

(operation panel of vacuum mixer ZKJB600 with lift)
4. Maintenance guidelines:
4-1. Check and lubricate the master bearing once per month.
4-2. Change oil for speed reducer once per year.
4-3. Check the vacuum pump oil frequently.
4-5. Adjust the vacuum level properly as per the product technology.
4-6. Make sure that the feeding and discharging covers are both closed before starting vacuum pump.
4-7. Prevent the electrical parts from water.
4-8. Any abnormality during the operation, stop the machine immediately and check the machine.
5. Delivery time:
We have vacuum mixer ZKJB150 in stock at present.
6. Warranty:
The mechanical part is ONE year warranty; the electrical part is SIX months.
Contact Person: Lisa Tang(Export Manager)
Mobile:0086-18034210278
Skype:lisatang201203
Website: www./english
