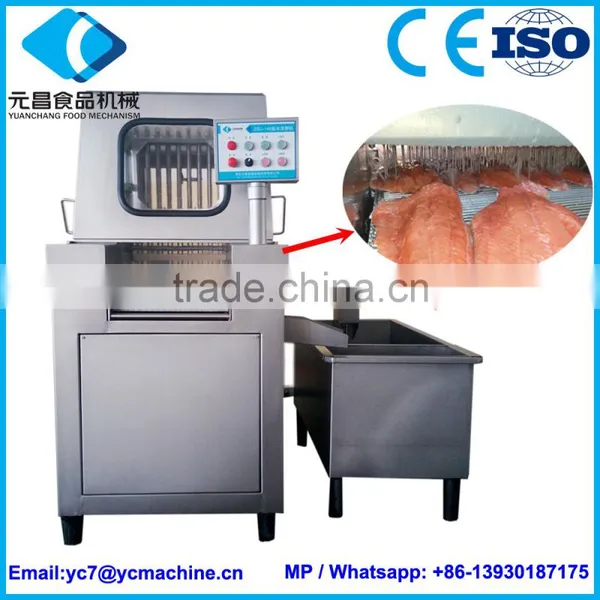

ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector

ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector photo-1
ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector photo-2
ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector photo-3
ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector photo-4
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Shawarma
Application:
Meat Processing
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Shawarma
Application Meat Processing
Automatic Grade Automatic
Production Capacity 60-80%
Place of Origin Hebei, China
Brand Name YUANCHANG
Model Number ZSJ-140
Voltage 380V
Power(W) 7.2 KW
Dimension(L*W*H) 1800x1650x1800
Weight 630 KGS
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

The ZSJ-140 is the best choice for meat processing, because:



1. The brine injector inject the saline and the pickle agent into the meat slices and bone-borne meat evenly, giving a shorter pickling period.

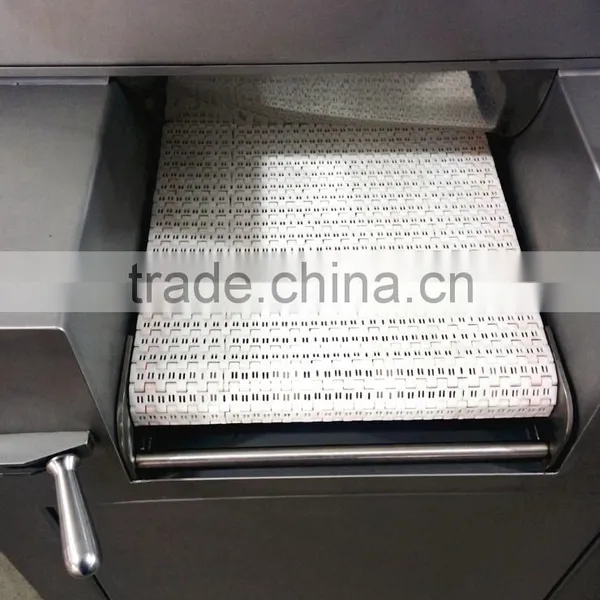

2. The brine injector offers a wide 385mm product belt with 72 needles which can inject simultaneously and the injection pressure is adjustable as necessary for the most demanding applications on pork, beef, fish or poultry.



3. Special emulsification device is equipped with the meat flavor Injector, which can thoroughly grind the additives of starch and albumen, no any particles left.







Product Description



Here are the ZSJ-140 Brine Injector Specification:





Model

Capacity

Power

Injection Pressure

Stroke

Emulsification Tank Volume

Injection Speed

ZSJ-140

500-1000 KGS/HR

7.2 KW

0.4-1.18 MPA

120 MM

135 L

16/24 Times/Min.

Model

Weight

Size

Needle Quantity

Step Space

Injection Rate

Agitating Tank Volume

ZSJ-140

630 KGS

1800x1650x1800 MM

72 PCS

10-80 MM

60-80%

110 L









Advantage of ZSJ-140 Brine Injector Machine:



1. The obliquely-positioned water return barrel and the agitating function can effectively prevent the settlement of all materials under processing.



2. It features reasonable design, removable chain and easy cleaning, ideal equipment for superior meat-borne products and high productivity.



3. Compare the operational and food safety advantages found in the ZSJ-140 to our competitors, you will quickly see why this injector is the choice for injection processes.









Here are ZSJ-140 Brine Injector Machine Details:

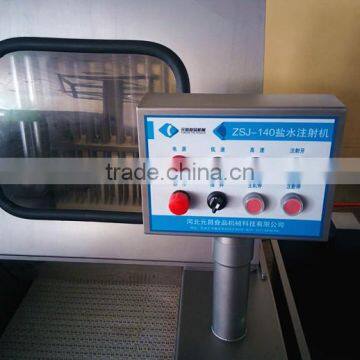

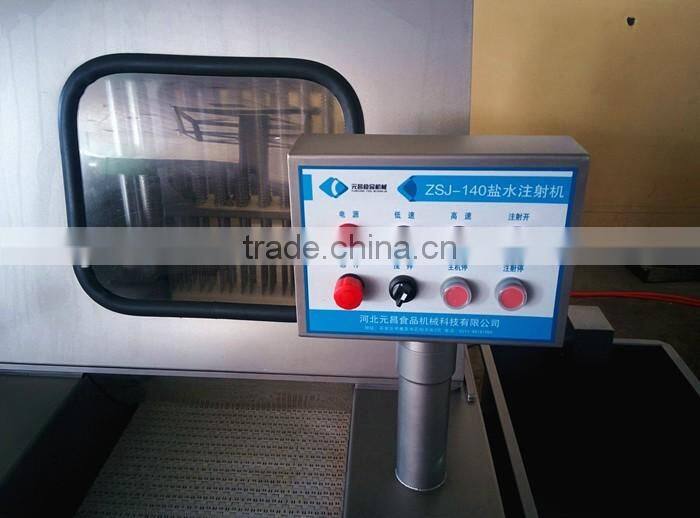

1. SWISS ABB Waterproof button. Easy operation by PLC.



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector

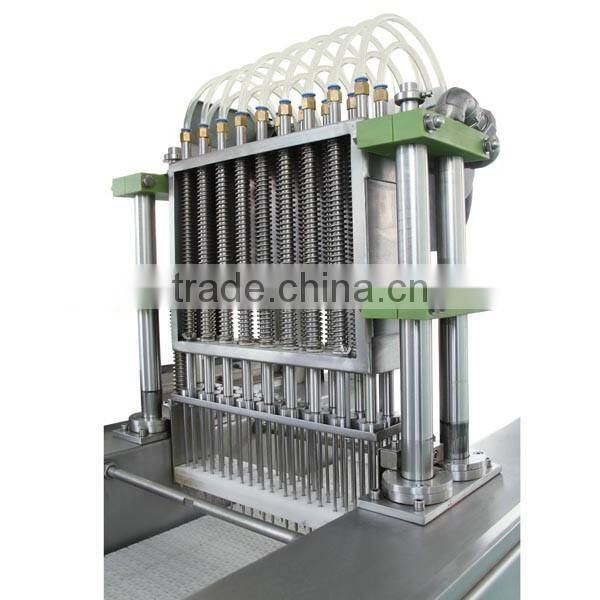

2. 72 needles, stainless Steel, adjustable injection pressure, self protection device.



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector

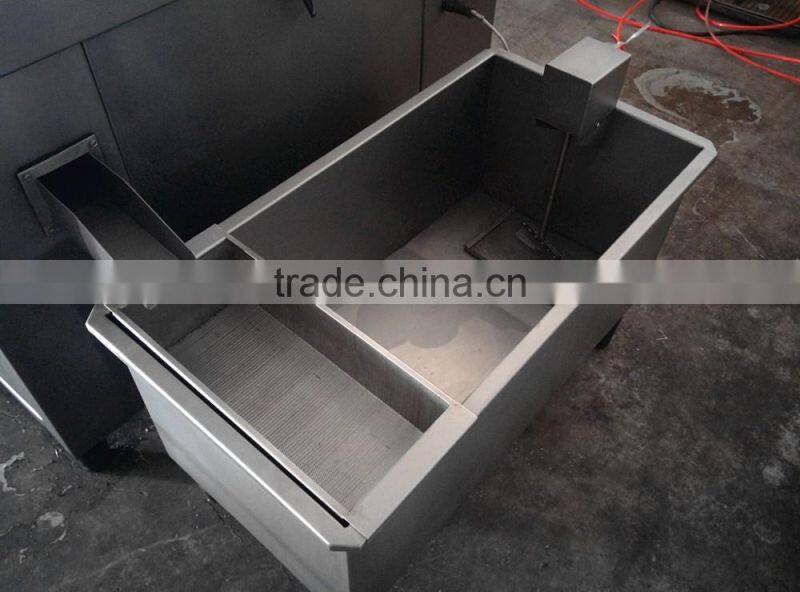

3.  Brine tank. Recycle the brine, save cost.



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector









All elements and parts are use reliable and famous brand that work with us over 20 years!





ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector





Our Services

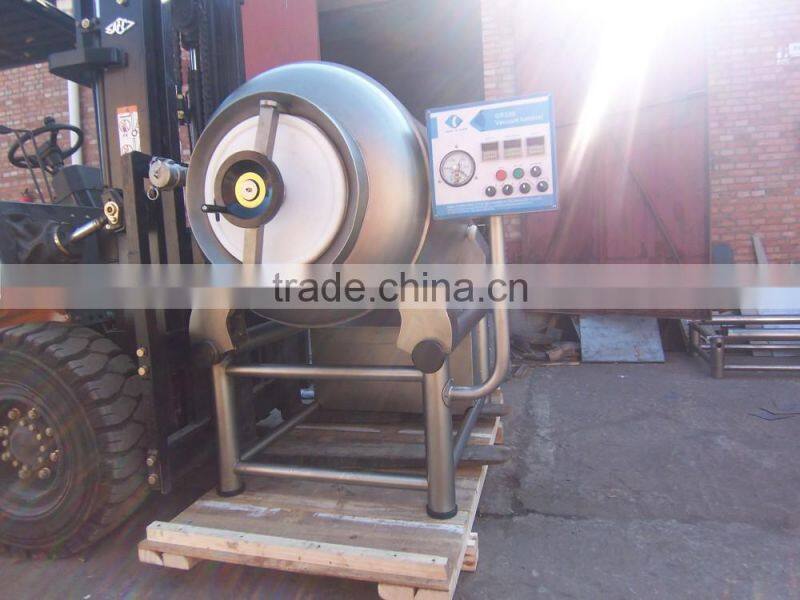

 The ZSJ-140 Brine Injector Machine can work with Vacuum Meat Tumbler as a part of meat prodcuts poduction line:



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector

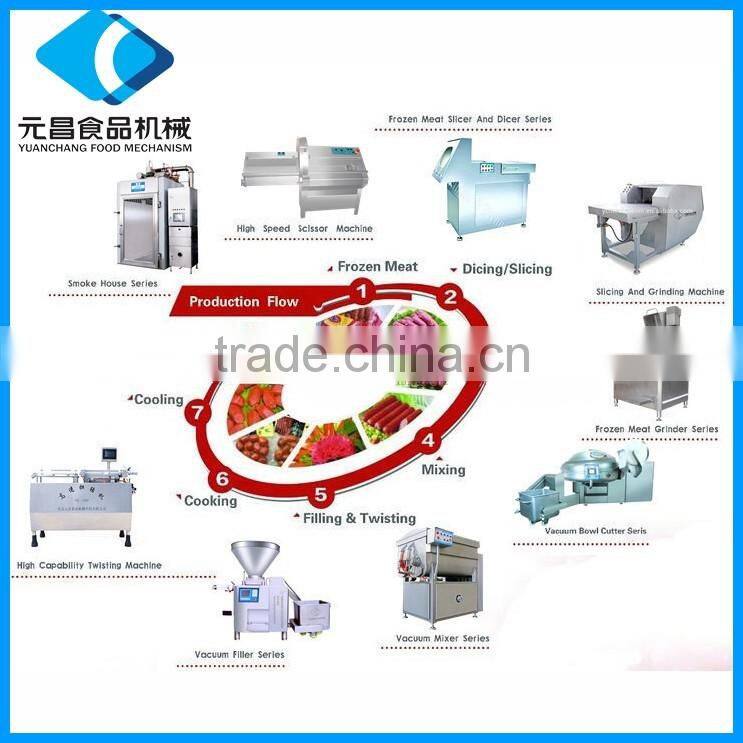

We still make other machines for sausage making and meat process:



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector





Company Information



 Yuanchang Food Mechanism & Technology co.Ltd established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China’s meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine‘s movement. Designing different requirements of the machinery will be possible. The outstanding quality we made, advanced technique, abundant strength, it holds advanced professional technology in domestic meat produce as well as customer‘s high praise. Hence occupies the excellent economic and social efficiency for customers and enterprise.



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector



 ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector







Packaging & Shipping



ZSJ-140 High Speed Brine Injector Machine Fish Saline Injector







FAQ



1. Are you a factory or trading company?

We are the leading factory of Meat Machine in China. We welcome you visit us!



2. How about the product quality?

The stainless steel we adopt excellent SUS304.

Each machine will be tested more than 24 hours after finishing.

All elements are use reliable and famous brand that work with us over 20 years.



3. What about the warranty and after-sale service?

Our machine has 12 months guarantee, electrical parts and air parts has 6 months guarantee.

Our engineers are available to serve oversea.



4. Are you providing training about machine installation and operation?

Yes, our engineer can teach your worker in our factory OR give them a class in your factory.



5. Is it possible to use our LOGO or special custom design?

Yes, no problem.. We have a professional technology team for new research and development.



6. How long the lead time is?

Usually 25-30 Days is enough.



7. What is the price term and payment method?

We can quote EXW, FOB, CIF and CNF price. You can pay us by T/T, L/C or Western Union.



8. How I contact you?

Skype: peterishere86;  Mob / Whatsapp / Wechat / Viber: 0086-13930187175
