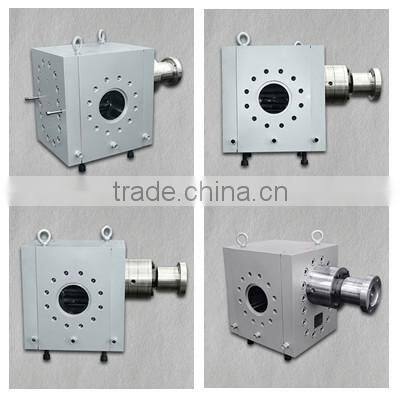

Batte CE Certified Geared Melt Pump for Polymer Extrusion

Batte CE Certified Geared Melt Pump for Polymer Extrusion photo-1

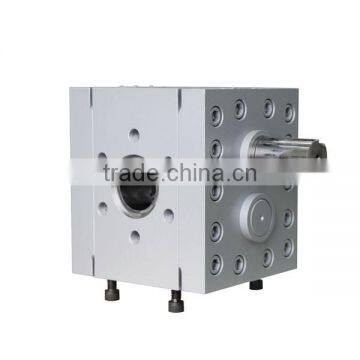

Batte CE Certified Geared Melt Pump for Polymer Extrusion photo-2
Batte CE Certified Geared Melt Pump for Polymer Extrusion photo-3

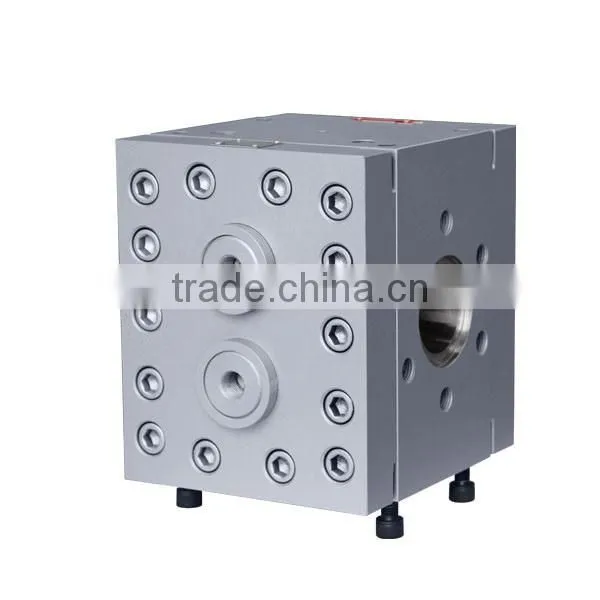

Batte CE Certified Geared Melt Pump for Polymer Extrusion photo-4
US$ 1,800 - 2,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Other, Bar Film Granules Pipe Plates Profiles Sheet Wire
Plastic Processed:
Other, PET, PBT, PA, PC, PS, SAN, ABS, PP, PE, POM
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main port
Delivery Detail:
Delivery time depends on order quantity.
Application Other, Bar Film Granules Pipe Plates Profiles Sheet Wire
Plastic Processed Other, PET, PBT, PA, PC, PS, SAN, ABS, PP, PE, POM
Screw Design Double-screw
Automatic Grade Automatic
Place of Origin Henan, China
Brand Name Batte
Model Number ZB-D
Voltage 220V/380V
Power(W) BASED ON CAPACITY
Dimension(L*W*H) BASED ON CAPACITY
Weight BASED ON CAPACITY
Certification BV CE
After-sales Service Provided Engineers available to service machinery overseas

Batte CE Certified Geared Melt Pump for Polymer Extrusion

Product Description



1. Introduction of ZB-D series gear melt pump for polymer extrusion

Mainly used for middle-high slimy medium feeding

Suitable for PET, PBT, PA, PC, PS, SAN, ABS, PP, PE, POM and other processes.



2. Features of ZB-D series gear melt pump for polymer extrusion

  • Reducing stress on the extruder by means of shifting the job of building pressure to the melt pump;
  • Increasing the hourly output;
  • Removing the output variations and pressure pulsations, thus greatly improving the product quality;
  • Saving raw material by means of tighter manufacturing tolerances;
  • Improving the the dimensional accuracy during the production of sheets and profiles;
  • Optimizing the surface and optical quality during the production of films, sheets and profiles;
  • Improving the product quality with regard to homogeneity and pellet size in compounding;
  • Extending the lifetime of the upstream machinery;



3. Technical Parameter of ZB-D series gear melt pump for polymer extrusion
  • Melt Pump Body: High Temperature Tool Steel or Chromium-nickel Steel
  • Gear: Stainless Steel, Nitrided Steel, or Customization
  • Tooth profile: Straight tooth, Helical tooth, Herringbone tooth
  • Sliding Bearing: High Temperature Tool Steel, special material and wear-resistant coating
  • Shaft Sealing: Screw sealing, Packing seal, Screw sealing+Packing seal, other combined

         sealing

  • Heating System: Conduction oil heating
4. Operating Parameter of ZB-D series gear melt pump for polymer extrusion
  • Volume Range: 0.5CC - 12000CC
  • Viscosity: ≤40000 Pas
  • Working Temperature: ≤400°C (750°F)
  • Cleaning Temperature: ≤450°C (850°F)
  • Outlet Pressure: 40MPa(6000psi)
5. Parameters of ZB-D series gear melt pump for polymer extrusion

Type

CC/Rev

Capacity

 (L/H)

Heating

power

 (kw)

Dirven

system

(km)

Pressure

Temperature

ZB-0.2

0.2

0.2-0.6

0.5

0.37









Inlet pressure:

 ≥0Mpa





Exit pressure:

≤35Mpa











Operating

temperature:

≤350℃



Clearing

temperature:

≤450℃

















ZB-1

1

1-3

1

0.5

ZB-2

2

2-6

1

0.75

ZB-5

5

5-15

1

1.1

ZB-10

10

10-30

1

1.5

ZB-20

20

20-60

2

2.2

ZB-31.5

31.5

30-90

2

3

ZB-50

50

50-150

2

4

ZB-100

100

100-300

3

5.5

ZB-150

150

150-450

4

7.5

ZB-200

200

200-600

4

11

ZB-250

250

250-750

5

15

ZB-315

315

300-900

6

18.5

ZB-400

400

400-1200

8

22

ZB-500

500

500-1500

10

30

ZB-630

630

600-1800

12

37

ZB-800

800

800-2400

15

45

ZB-1000

1000

1000-3000

18

55

ZB-1500

1500

1200-4500

20

75







Batte CE Certified Geared Melt Pump for Polymer Extrusion

Application

Batte CE Certified Geared Melt Pump for Polymer Extrusion



Successful Case

Batte CE Certified Geared Melt Pump for Polymer Extrusion

Packaging & Shipping



Batte CE Certified Geared Melt Pump for Polymer Extrusion





Our Services

Batte persists in the business philosophy that technology goes with quality: technology is the root, innovation is the soul, customers come first.

1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.

2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.

  • When trainning your operators, our engineers will give them advice on how to operate the machines correctly;
  • We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
  • Call us at any time if you have problems about our equipment;
  • If needed, we will send engineers to your site to solve your problems.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.

4. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;



Trade Shows

Batte CE Certified Geared Melt Pump for Polymer Extrusion

Related Products

More related products, please check here:

Batte CE Certified Geared Melt Pump for Polymer Extrusion



Batte CE Certified Geared Melt Pump for Polymer ExtrusionBatte CE Certified Geared Melt Pump for Polymer Extrusion



Company Information

Batte is high-tech company which integrate R&D, design and manufacture. Batte’s main product includes high-qualified screen changer, metering gear pump, extrusion dies. Batte has advanced processing equipment and rich experience in production, has a perfect quality control system and perfect after-sale service system. Batte has right to import and export.

Batte have extra years experience in melt filtration system. And Batte make our products multivariate, long lived, with high degree of accuracy, leak-proof, and so on, to stand out in our profession and take leading position so that we are welcomed and trusted by the market. And combination with the practical requirements of customers, continuously improve the quality of products and using function to meet customers’ demand for products of high quality.

Our product are exported to Taiwan, Japan, USA, Turkey, Mexico, Brazil, Russia, India, Malaysia, Vietnam, Iran, and other countries and regions and received high praised by our customer.

Our advantages:

1. we have CE,ISO,SGS and BV certificate;

2. we have 11-year experience;

3. we are a leading brand in China;

4. we have over 100 workers to ensure quick delivery;

5. we have 10 engineers to design special concrete plants for our customers;

6. we have after sales service like: installation, debugging, operator trainning and spare parts supply.
